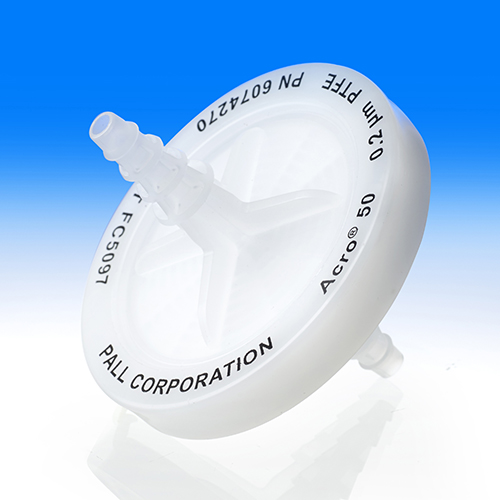

Acro® 50 ベントフィルター product photo Primary L

Acro® 50 ベントフィルター

The Pall Acro 50 is a disposable0.2 micron sterile vent filter and contains a Pall hydrophobic PTFE membrane, and is ideal for the sterile venting of small containers and as an in-line gas filter. The large effective filter area provides high flow rates, and filters can be autoclaved several times, ensuring low costs.

Features

  • PTFE membrane provides high flow rates and resists ‘wetting’ out by water vapor
  • Light, compact unit suitable for small vessels and flexible tubing
  • Can be easily integrity tested by water breakthrough test
  • Each filter labeled with an individual serial number

High-Quality Standards

  • Validated with Brevundimonas diminuta (ATCC 19146) in liquid at a challenge level of >107/cm2 filter area
  • 100% integrity tested
  • Manufactured in a clean environment under controlled conditions
  • Materials of construction tested for biological compatibility
  • Comprehensive validation guide available


ヘルプが必要ですか?
お問い合わせはこちら
* Required

Order Products

Narrow Your Results By

    Industries
Results Below
1
  • «
Cant find what you are looking for?
Contact a Pall Representative
Removal Rating
0.2 µm
Membrane Material
PTFE
Effective Filtration Area (Metric)
19.6 cm²
Sterilization Option(s)
Suitable for Autoclave
販売単位
PAC
最少受注数量
1
価格
  • «

概要

The Pall Acro 50 is a disposable0.2 micron sterile vent filter and contains a Pall hydrophobic PTFE membrane, and is ideal for the sterile venting of small containers and as an in-line gas filter. The large effective filter area provides high flow rates, and filters can be autoclaved several times, ensuring low costs.

Features

  • PTFE membrane provides high flow rates and resists ‘wetting’ out by water vapor
  • Light, compact unit suitable for small vessels and flexible tubing
  • Can be easily integrity tested by water breakthrough test
  • Each filter labeled with an individual serial number

High-Quality Standards

  • Validated with Brevundimonas diminuta (ATCC 19146) in liquid at a challenge level of >107/cm2 filter area
  • 100% integrity tested
  • Manufactured in a clean environment under controlled conditions
  • Materials of construction tested for biological compatibility
  • Comprehensive validation guide available

仕様

Materials of Construction

Membrane PTFE on a polypropylene support
Housing Polypropylene

Operating Parameters1

Max operating pressure 4.1 bar at up to 25 °C (77°F)
Max operating temperature 40 °C (104 ºF)

1 In compatible fluids which do not soften, swell or adversely affect the filter or its materials of construction.

Autoclave Sterilization2

Autoclave: 5 x 0.5-hour cycles at 125°C (257°F)

2 The autoclave life was determined by testing under controlled laboratory conditions up to the time indicated. Actual operating conditions may affect the filter capsule's resistance to autoclave sterilization and service. Filter capsules should be qualified for each process. These filter capsules should not be exposed to gamma irradiation.

Warning: This product must not be sterilized in-situ by passing steam through under pressure. Integrity should be verified after each autoclave cycle before use.

Connections

Inlet and Outlet: ¼ in. - ½ in. hose barb

Typical Effective Filtration Area

19.5 cm2

Removal Rating

0.2 micron

Typical Air Flow Rates

>8 standard liters /minute at 0.2 bard (3 psid) differential pressure

Nominal Dimensions
