ダウンロード:High Performance PVDF Single Cartridge Filter Housings
- Polyvinylidene fluoride (PVDF) materials of construction provide excellent chemical compatibility and strong mechanical properties with the lowest possible extractables
- Accepts one 10.2 cm (4in), 25.4 cm (10in) or 30.5 cm (12in) 222 O-ring SOE style filter cartridge
- 3/4" NPT, 25 mm or 32 mm butt weld inlet / outlet connections available
- Stainless steel mounting bracket available
- Standard upstream and downstream gauge connections
Materials of Construction
| Head and Bowl | Polyvinylidene fluoride (PVDF) |
| O-ring | Fluorocarbon elastomer |
| Threaded Head Inserts | PTFE coated 316 stainless steel |
| Optional Mounting Bracket | Stainless steel |
| NPT Plugs | PFA |
| Connections | Inlet / Outlet | 3/4ʺ NPT(standard) 25 mm butt weld 32 mm butt weld |
| Vent and Drain | 1/4ʺ NPT | |
| Cartridge Configurations | 10.2 cm (4in) | M3 (Code 3), 222 O-rings, flat closed end |
| 25.4 cm (10in) or 30.5 cm (12in) |
M8 (Code 8), 222 O-rings, fin closed end | |
| Maximum Operating Pressure | 0.76 MPa @ 95 ºC / 1 1 0 psig @ 203 ºF 1.03 MPa @ 20 ºC / 150 psig @ 68 ºF |
|
NOTE : Maximum operating pressure ratings are vessel ratings only. Safe operating temperature and pressure will depend on filter cartridge and gasket / O-ring used. For inquiries on compatibility, contact Pall or your Pall distributor.
This housing is not recommended for compressed air or gas service. It is suitable for use with fully compatible* liquids only.
This housing is not recommended for acid service at the pressure shown.
Please contact Pall for detailed compatibility information.
* Which do not soften, swell, or adversely affect the product or its materials of construction.
NOTE : Use of this product in a manner other than in accordance with Pall’s current recommendations may lead to injury or loss. Pall cannot accept liability for such injury or loss.

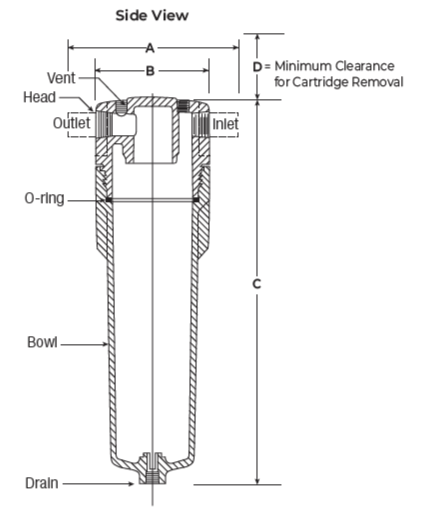

Dimensions (nominal)
| Part Numbers | Dimensions cm (in) | |||
| A | B | C | D | |
| IDO4-PVDF- 3/4 | - | 12.37 (4.87) | 20.24 (7.97) | 15.2 (6) |
| IDO4-PVDF-25BW | 19.5 (7.68) | - | 20.24 (7.97) | 15.2 (6) |
| IDO4-PVDF-32BW | 19.5 (7.68) | - | 20.24 (7.97) | 15.2 (6) |
| IDO10-PVDF- 3/4 | - | 12.37 (4.87) | 41.71 (16.42) | 33 (13) |
| IDO10-PVDF-25BW | 19.5 ( 7.68) | - | 41.71 (16.42) | 33 (13) |
| IDO10-PVDF-32BW | 19.5 ( 7.68) | - | 41.71 (16.42) | 33 (13) |

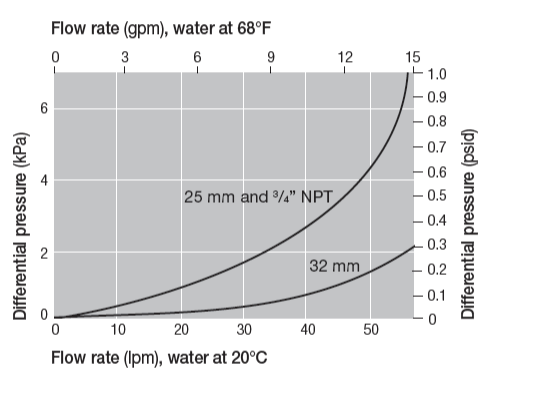

Housing Differential Pressure vs. Liquid Flow Rate
IDO [Table 1] PVDF [Table 2]
Table 1
| Code | Cartridge Lengths cm (in) |
| 4 | 10.2 / 4 (M3 only) |
| 10 | 25.4 / 10 |
| 12 | 30.5 / 12 (M8 only) |
Table 2
| Code | Inlet / Outlet Connection Sizes |
| 3/4 | 3/4 " NPT |
| 25 BW | 25 mm butt weld |
| 32 BW | 32 mm butt weld |
