  5. PCY Series Filter Housings
PCY Series Filter Housings product photo Primary L

PCY Series Filter Housings

Pall PCY filter housings are manufactured from reinforced polypropylene and incorporate several innovative features. Four styles of cartridge fittings are available, each welded into the head to eliminate the risk of bypass. The sealing mechanisms together with a high pressure rating allows for flexibility and security in a wide range of process applications.

Features & Benefits

  • Sturdy reinforced polypropylene designs for rugged liquid service and long-life
  • Broad chemical compatibility
  • Choice of filter cartridge styles and lengths
  • Flow rates up to 100 L / min
  • 1 in connections for high-flow rates and low pressure drop
  • Welded fittings for different styles of Pall filter cartridges

Application

For the filtration of wide variety of liquids including sea water, plating solutions, acids, bases, monomers, resins and deionized water, where corrosion resistance and economy of operation are required.

続きを読む


問い合わせ
* Required

Datasheets

ダウンロード: 英語

Pall PCY filter housings are manufactured from reinforced polypropylene and incorporate several innovative features. Four styles of cartridge fittings are available, each welded into the head to eliminate the risk of bypass. The sealing mechanisms together with a high pressure rating allows for flexibility and security in a wide range of process applications.

Features & Benefits

  • Sturdy reinforced polypropylene designs for rugged liquid service and long-life
  • Broad chemical compatibility
  • Choice of filter cartridge styles and lengths
  • Flow rates up to 100 L / min
  • 1 in connections for high-flow rates and low pressure drop
  • Welded fittings for different styles of Pall filter cartridges

Application

For the filtration of wide variety of liquids including sea water, plating solutions, acids, bases, monomers, resins and deionized water, where corrosion resistance and economy of operation are required.

Materials of Construction

Head and Bowl Glass-reinforced polypropylene
O-ring Fluoroelastomer, NBR, Silicone, EPDM
Connections Inlet / Outlet 1” NPT, 1” BSPT
Vent / Drain 1⁄4" NPT, 1⁄4" BSPT
Design Pressure 1 MPaG / 150 psig
Design Temperature 20 °C / 68 °F

Maximum Operating Pressure

Temperature 20 °C 30 °C 40 °C 50 °C 60 °C
Seawater, Plain Water, Weak Saltwater 1.0 MPa 0.83 MPa 0.6 MPa 0.4 MPa 0.2 MPa
Oils, Organic Compounds 0.5 MPa 0.43 MPa 0.3 MPa NA
Plating Solution, Salts, Acids Compatible, Bases 0.33 MPa 0.3 MPa 0.2 MPa NA

NOTE : Polypropylene housings are not suitable for use with gases.

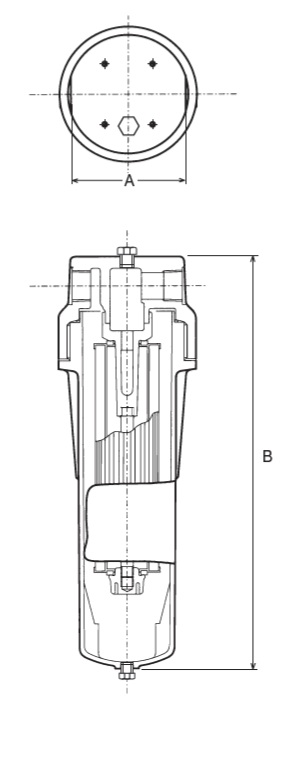

Dimensions and weight

Type Dry Weight Volume Width A Height B Overhead Clearance Required for Cartridge Removal
1001, 1RF, 13, 17 2.2 kg 2,250 cm2 113 mm 440 mm 300 mm
1002, 2RF, 23, 27 2.8 kg 3,500 cm2 113 mm 688 mm 580 mm

PCY1001

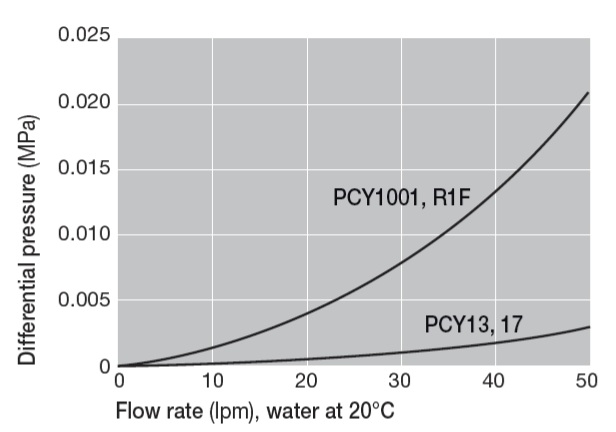

Housing Differential Pressure vs. Liquid Flow Rate

フィルター ハウジング

PCY [Table 1] [Table 2] [Table 3] [Table 4]

Table 1

Code Cartridge Lengths cm (in)
1001 MCY100 1 ( 10″) Style
1002 MCY1002 (20″) Style
1RF R1F (10″) Style
2RF R2F (20″) Style
13 AB1 ( 10″) Code 3 Style
23 AB2 (20″) Code 3 Style
17 AB1 ( 10″) Code 7 Style
27 AB2 (20″) Code 7 Style

Table 2

Code Nozzle Type / Size
GN16 1″ NPT
G16 1″ BSPT

Table 3

Code Seal Materials
H Fluoroelastomer
H13 NBR
H4 Silicone
J EPDM

Table 4

Code Vent & Drain
No Code 1⁄4" NPT
Y 1⁄4" BSP Tr
X 1⁄4" BSP Pl
