HDC® II Membrane in Kleenpak™ Nova Capsules

HDC® II all-polypropylene filters incorporate proprietary tapered-pore polypropylene depth media. With removal ratings from 0.6 micron to 700 micron, HDC II filters are well-suited to a broad range of prefiltration applications in biological and chemical API manufacturing facilities where purity, economy and reliability are critical.

Kleenpak Nova capsules are designed for use in medium-to-large-scale production environments (100 L to > 1000 L), and are often selected by the end user following scaling studies using smaller, Kleenpak capsule formats. Kleenpak Nova capsules can be offered with 'In-line' (NP) or 'T' style (NT) inlet/outlet configurations with sanitary flange or hose barb fittings. With the AB-style filter cartridge at their core, Kleenpak Nova filter capsules can be supplied with the most comprehensive range of filter media among all of Pall's single-use capsules.

Features and Benefits

  • All-polypropylene construction
  • High-capacity filter media for long-life
  • Fixed pore, non-shedding for consistent performance
  • Low binding for maximum transmission of proteins
  • Low extractables for premium product quality
  • Broad chemical compatibilities for use in a wide range of applications
  • Available in T-style or in-line formats for flexibilty of use
  • Staubli vent valve allows for simplicity of connection to integrity test devices
  • Resistant to repeat autoclave cycles
  • Variable inlet and outlet connection configurations to accept variable tubing dimensions
  • Quality and Bio-Safety Biological Tests
  • Meets USP Biological Reactivity Test in vivo for Class VI-121 °C Plastics

Effluent Quality Tests*

  • Meets Cleanliness per USP Particulates in Injectables
  • Non-Fiber-Releasing Non-Pyrogenic per USP
  • Bacterial Endotoxins (< 0.25 EU/mL)
  • Meets Total Organic Carbon and Water Conductivity per USP Purified Water, pH per USP Sterile Purified Water
    * Per lot sample soak or rinse-up flush aliquots


도움이 필요하세요?
Ask a Question
* Required

설명

HDC® II all-polypropylene filters incorporate proprietary tapered-pore polypropylene depth media. With removal ratings from 0.6 micron to 700 micron, HDC II filters are well-suited to a broad range of prefiltration applications in biological and chemical API manufacturing facilities where purity, economy and reliability are critical.

Kleenpak Nova capsules are designed for use in medium-to-large-scale production environments (100 L to > 1000 L), and are often selected by the end user following scaling studies using smaller, Kleenpak capsule formats. Kleenpak Nova capsules can be offered with 'In-line' (NP) or 'T' style (NT) inlet/outlet configurations with sanitary flange or hose barb fittings. With the AB-style filter cartridge at their core, Kleenpak Nova filter capsules can be supplied with the most comprehensive range of filter media among all of Pall's single-use capsules.

Features and Benefits

  • All-polypropylene construction
  • High-capacity filter media for long-life
  • Fixed pore, non-shedding for consistent performance
  • Low binding for maximum transmission of proteins
  • Low extractables for premium product quality
  • Broad chemical compatibilities for use in a wide range of applications
  • Available in T-style or in-line formats for flexibilty of use
  • Staubli vent valve allows for simplicity of connection to integrity test devices
  • Resistant to repeat autoclave cycles
  • Variable inlet and outlet connection configurations to accept variable tubing dimensions
  • Quality and Bio-Safety Biological Tests
  • Meets USP Biological Reactivity Test in vivo for Class VI-121 °C Plastics

Effluent Quality Tests*

  • Meets Cleanliness per USP Particulates in Injectables
  • Non-Fiber-Releasing Non-Pyrogenic per USP
  • Bacterial Endotoxins (< 0.25 EU/mL)
  • Meets Total Organic Carbon and Water Conductivity per USP Purified Water, pH per USP Sterile Purified Water
    * Per lot sample soak or rinse-up flush aliquots

규격사양

Materials Of Construction


Filter Membrane Polypropylene
Support/Drainage Polypropylene
Core/End Caps Polypropylene
Cage Polypropylene
O-rings Silicone polymer
Sealing Technology Thermal bonding without adhesives
Housing Bowl Polypropylene
 Housing Head ¹  Polypropylene

¹ Formulated with TiO2 whitener which does not contribute to organic extractables

Operating Conditions


Maximum Operating Temperature    40 °C
Maximum Operating Pressure    3 barg (43.5 psig) at 40 °C in liquids1
0.5 barg for continuous gas service applications2

1 In compatible fluids which do not soften, swell or adversely affect the filter or its materials of construction
2 In case the pressure may exceed 0.5 barg (7 psig) during operation, a safety shield is required to protect operators and equipment in case of an accident. However, the maximum pressure of 3 barg (43.5 psig) must not be exceeded at any time

Removal Ratings


Media Code Liquid Absolute Rating Liquid Retention (90%)
J006 0.6 µm ³ < 1.0 µm ³
J012  1.2 µm < 1.0 µm ³
J025  2.5 µm < 1.0 µm ³
J045  4.5 µm 1.2 µm
J060  6.0 µm 3.0 µm
J100  10.0 µm 5.4 µm
J200 20.0 µm 10.0 µm
J400  40.0 µm 22.0 µm


Nominal Dimensions


In-Line (P-style) NP5L ³ NP6 NP7 NP8
Maximum diameter including valves 154 mm
(6.1 in.)
154 mm
(6.1 in.)
154 mm
(6.1 in.)
154 mm
(6.1 in.)
Length with hose barb inlet/outlet 275 mm
(10.8 in.)
397 mm
(15.6 in.)
644 mm
(25.4 in.)
895 mm
(35.2 in.)
Length with sanitary inlet/outlet 213
(8.4 in.)
335 mm
(13.2 in.)
584 mm
(23.0 in.)
834 mm
(32.8 in.)

³ J012 and J045 media codes only


T-style NT6 NT7 NT8
Maximum diameter including valves 240 mm (9.5 in.) 240 mm (9.5 in.) 240 mm (9.5 in.)
Length 349 mm (13.7 in.) 598 mm (23.5 in.) 848 mm (33.4 in.)


Sterilization 4


 Autoclave (Maximum)  1 x 60 minutes at 135 °C
 Gamma irradiation Maximum dosage 50 kGy

4 Consult Pall for procedures

성능

Typical Liquid Flow Rates

Please contact us for liquid flow rates.

종류

Filter Capsules

사용

Bioburden Filtration

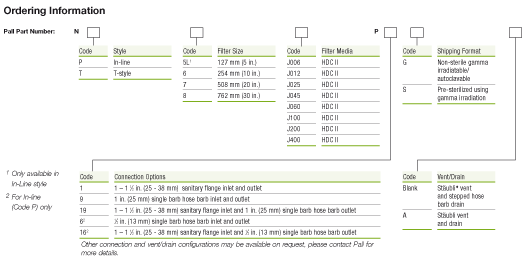

주문정보

Note: NP5L filter size configuration available with filter media grades J012 and J045 only
