Micro-24 MicroReactor Cassettes and Services product photo Primary L

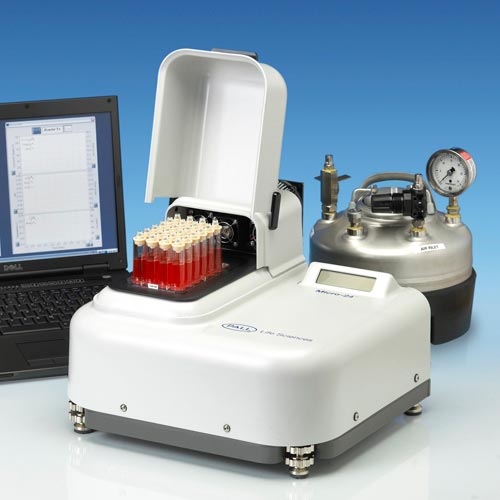

Micro-24 MicroReactor Cassettes and Services

The Micro-24 MicroReactor System hardware has been discontinued effective July 1, 2017. Pall continues to offer Micro-24 consumables and preventative maintenance and repair services to the user community.

For more information or to arrange a call with a Pall Process Development Specialist, please contact us at bioreactors@pall.com



* Required
Description

The Micro-24 MicroReactor System hardware has been discontinued effective July 1, 2017. Pall continues to offer Micro-24 consumables and preventative maintenance and repair services to the user community.

For more information or to arrange a call with a Pall Process Development Specialist, please contact us at bioreactors@pall.com

Read More Read Less
Applications

Product Applications

Pall Micro-24 MicroReactor systems are in use worldwide to grow a wide range of cell types under highly diverse conditions. Our systems offer significant advantages over shake flask screening for fast growing organisms and high output processes In addition to the highly aerobic processes common to industrial fermentation, Pall MicroReactor systems are also being used to study environmentally interesting organisms under controlled anaerobic and micro-aerobic conditions. The Micro-24 MicroReactor system also excels in the execution of longer term mammalian and insect cell culture. Efficient mixing is delivered in a low shear environment providing high throughput capabilities for controlled process development. The superior mixing provided by the Micro-24 MicroReactor system allows researchers the flexibility to optimize processes for adherent cells on microcarriers as well as suspension cell culture.

For more information or to arrange a call with a Pall Process Development Specialist, please contact us at bioreactors@pall.com

Read More Read Less
Specifications

24-Well Cassette Options and Details

Three cassette designs provide a variety of process conditions.

  • Standard [REG]
  • Baffled [BFL]
  • Central Vent [PRC]

Polycarbonate, irradiated by e-beam



Three Options for Well Closures

Type A: Single-use with neoprene check valve and sterile membrane barrier

Type D: Single-use with sterile membrane barrier

Type E: Autoclavable, re-usable, with stainless steel check valve, no sterile membrane barrier


Recommended cassette/closure combination for specific applications


Culture Type Bacteria Yeast
Cell Density All OD600 < 40 OD600 > 40 All OD600 < 30 OD600 > 30
O2 Conditions Anaerobic Aerobic Anaerobic Aerobic
pH Conditions 3.5 - 5.5 / 6.0 - 8.0 3.5 - 5.5 / 6.0 - 8.0 3.5 - 5.5 / 6.0 - 8.0 3.5 - 5.5 / 6.0 - 8.0 3.5 - 5.5 / 6.0 - 8.0 3.5 - 5.5 / 6.0 - 8.0
Cassette PRCLOW / PRC PRCLOW / PRC REGLOW / REG PRCLOW / PRC PRCLOW / PRC REGLOW / REG
Cap TypeA/E TypeA/E TypeD TypeA/E TypeA/E TypeD
Gas1 CO2 (optional)
Gas2 NH3/N2 NH3/Air   NH3/N2 NH3/Air
Gas3 N2 O2   N2 O2




Culture Type Filamentous Fungi Cell Culture
Cell Density All All
O2 Conditions Anaerobic Aerobic < 50% DO > 50% DO
pH Conditions 3.5 - 5.5 / 6.0 - 8.0 3.5 - 5.5 / 6.0 - 8.0 6.0 - 8.0
Cassette BFLLOW / BFL BFLLOW / BFL PRC
Cap TypeA/E TypeD TypeA/E TypeD
Gas1 CO2 (optional) 20-50% CO2/N2
Gas2 NH3/N2 NH3/Air 5-8% CO2/N2
Gas3 N2 O2 40 - 60% O2/N2


For More Information

For more information or to arrange a call with a Pall Process Development Specialist, please contact us at bioreactors@pall.com

Read More Read Less
Ordering Information

For a quotation, please contact Pall at bioreactors@pall.com

Pall Micro-24 MicroReactor Part Numbers

Consumables


Part Number Description
MRT-REG-2CS  Case of 6 Standard Cassettes
MRT-BFL-2CS  Case of 6 Baffled Cassettes - for high viscosity applications
MRT-PRC-2CS Case of 6 Cell Culture Cassettes
MRT-REG-LOW-CS Case of 6 Low pH Standard Cassettes
MRT-BFL-LOW-CS Case of 6 Low pH Baffle  Cassettes – for high viscosity applications
MRT-PRC-LOW-CS Case of 6 Low pH Cell Culture Cassettes
MRT-CAP-A6  Case of 6x24 Type A Caps
MRT-CAP-D6  Case of 6x24 Type D Caps
MRT-CAP-E24  Set of 24 Type E Caps - autoclavable


Services


Part Number Description
PTS02MRTPM1 Micro-24 Preventative Maintenance Service




For More Information

For more information or to arrange a call with a Pall Process Development Specialist, please contact us at bioreactors@pall.com

Read More Read Less
Application
Bioreactors - Suspended Cell
Read More Read Less
Segment
Cell Culture
