Velapad™ Filter Housings

For superior bench-testing of Single and Multi-layer Media

Pall® Velapad filter housings have an advanced biopharmaceutical design tailored for superior scale-up and scale-down testing of single and multi layer media under consideration for use in manufacturing processes. These versatile housings utilize high quality biopharmaceutical-grade components manufactured from 316L stainless steel. State-of-the-art manufacturing technologies are used to construct a housing in a convenient format for fast and easy customized testing of single and multilayer depth filter sheets. Instead of depending on capsules that may or may not provide the exact media and component configuration for an optimized testing environment, Velapad filter housings allow users to mix and match sheets into an optimized testing configuration for a specific application.

Features and Benefits

  • Suitable for single or multi-layer testing
  • Suitable for standard filtration or cake filtration/carbon-trap studies
  • Aseptic design
  • Crevice-free electro-polished surfaces with an internal Ra value of < 0.4 μm (< 15 μin) or < 0.8 μm (< 32 μin) respectively
  • Fully self-draining
  • No dead legs
  • Corrosion-resistant stainless steel head and base plates
  • Removable support legs for use with ring stands
  • Stainless steel vent/relief valve for 47 mm, 60 mm and 90 mm diameter housings

Options

Available in 47 mm, 60 mm and 90 mm diameter configurations



* Required
Need Help?
Description

For superior bench-testing of Single and Multi-layer Media

Pall® Velapad filter housings have an advanced biopharmaceutical design tailored for superior scale-up and scale-down testing of single and multi layer media under consideration for use in manufacturing processes. These versatile housings utilize high quality biopharmaceutical-grade components manufactured from 316L stainless steel. State-of-the-art manufacturing technologies are used to construct a housing in a convenient format for fast and easy customized testing of single and multilayer depth filter sheets. Instead of depending on capsules that may or may not provide the exact media and component configuration for an optimized testing environment, Velapad filter housings allow users to mix and match sheets into an optimized testing configuration for a specific application.

Features and Benefits

  • Suitable for single or multi-layer testing
  • Suitable for standard filtration or cake filtration/carbon-trap studies
  • Aseptic design
  • Crevice-free electro-polished surfaces with an internal Ra value of < 0.4 μm (< 15 μin) or < 0.8 μm (< 32 μin) respectively
  • Fully self-draining
  • No dead legs
  • Corrosion-resistant stainless steel head and base plates
  • Removable support legs for use with ring stands
  • Stainless steel vent/relief valve for 47 mm, 60 mm and 90 mm diameter housings

Options

Available in 47 mm, 60 mm and 90 mm diameter configurations

Applications
  • Standard flow filtration studies
  • Cake filtration/carbon-trap studies

Dry filter aid can be added into a process batch, stirred into a slurry, then pumped onto depth filter sheets as part of a cake study. The sheet then acts as a barrier to facilitate normally difficult studies involving process material and carbon-fines.

Specifications

Materials Of Construction


All Surfaces 316L
Screws A4
Seals Silicone (peroxide cured)
Surface Finish Internal Ra < 0.4 μm (< 15 μin.),
Electro-polished

External Ra < 0.8 μm (< 32 μin.)
Electro-polished


Operating Parameters


Operating Pressure -1 to 10 bar (-14.5 to 150 psi)
Temperature -10 to 150 °C (14 to 300 °F)
Steam-sterilizing up to 150 °C (300 °F)
Housing Volumes 47 mm; 60 mm; 90 mm
Void Volumes 45 mL; 79 mL; 205 mL
Filtration Area (after sealing) 13 cm²; 22 cm²; 55 cm²
Allowable Sheet Thickness (single or multiple layer) From 0.4 mm to 10.4 mm

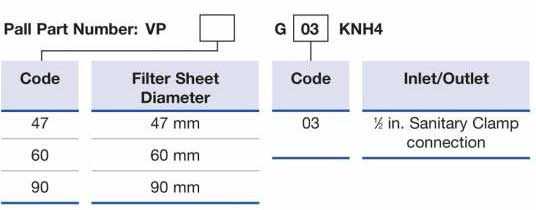

Ordering Information


Replacement Parts and Accessories


Item Description Part Number Quantity Material
1 Inlet Assembly
47 mm
60 mm
90 mm

CC62648C00
CC62609C00
CC62649C00

1
1
1

316L
316L
316L
2 Outlet Assembly
47 mm
60 mm
90 mm

CC62643C00
CC62572C00
CC62645C00

1
1
1

316L
316L
316L
Arm/leg CC62574B00 3 316L
4 O-Ring ORH4PW-107 Silicone
5 O-Ring ORH4PW-104 Silicone
6 O-Ring
47 mm
60 mm
90 mm

ORH4P-135
ORH4P-143
ORH4P-154

1
1
1

Silicone
Silicone
Silicone
7 Valve Body 1C18961C00 1 Nitronic* 60
8 Support Disc
47 mm
60 mm
90 mm

CC62640B00
CC62573B00
CC62641B00

1
1
1

316L
316L
316L
9 M8 x 35 Lg
Socket Head
Cap Screw


LB00171


1


A4
 10 Collar CC64472B00 1 Nitronic* 60


* Nitronic is a trademark of AK Steel Corporation
