Advanta™ AGT Multi-Round Gas Filter Housings
Advanta AGT multi-round gas filter housings are designed for medium-volume gas flow applications and provide high gas flows at low pressure losses for optimal energy conservation.
Designed to highest hygienic standards, these housings meet the exacting demands of the biopharmaceutical, food and beverage and related industries, offering low installation costs, low maintenance costs and operational simplicity.
Advanced manufacturing technologies including CNC machining, orbital welding and electro-polishing ensure a robust and highly sanitary design that meets the most stringent requirements.
These 3-round filter housings are designed to hold multiple code 7 filter cartridges for the filtration of gas and air typically up to 2000 Nm3/h.
Materials of Construction
| All wetted parts | AISI 316L |
| V-Clamp | AISI 316L, Nitronic 60 |
| Seals | EPR, USP Class VI compliant and listed for food contact use in US code of Federal Regulations title 21CFR 170-199 - section 177.2600 ‘Rubber articles intended for repeated use |
Design Code
| ASME VIII Div 1 and PED Assessment (Module H, Category III) |
| Optional - ASME VII Div 1 certification |
Surface Finish
| All electro polished | |
| Internal | Ra ≤ 0.375 µm (≤ 15 µin.) (typical) |
| External | Ra ≤ 0.8 µm (≤ 32 µin.) (typical) |
Operating Conditions
| Maximum Operating Pressure | -1 to 10 barg (-14.5 to 150 psig) |
| Maximum Operating Temperature | 150 °C (300 °F) |

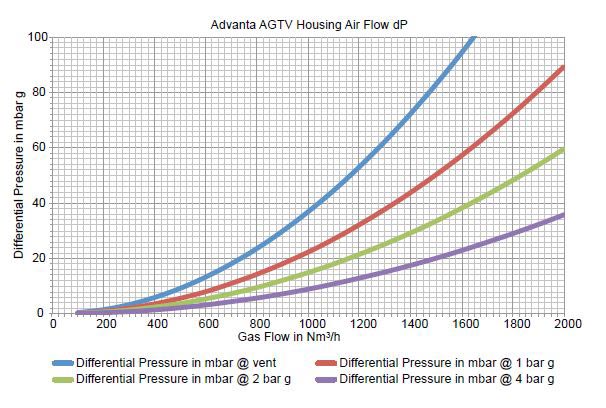

Typical Air Flow Rate
Typical housing-only differential pressure. For further assistance in housing and filter sizing, please contact us.
Design Features
- Aseptic design — with electropolished surfaces without crevices or deadlegs and fully self-draining
- V-band clamp design for swift filter change-out
- Wide range of connection options
- The housings are designed to meet ASME and PED pressure vessel codes and conform to ATEX Directive 2014/34/EU (Group ll Category 2).
