Acro® 50 Vent Filters

Pall Acro 50 disposable filters are 0.2 micron rated and contain a Pall hydrophobic PTFE membrane and are ideal for the sterile venting of small containers and as an in-line gas filter. The large effective filter area provides high flow rates and filters can be autoclaved several times ensuring low costs.

Features

  • PTFE membrane provides high flow rates and resists ‘wetting’ out by water vapor
  • Light compact unit suitable for small vessels and flexible tubing
  • Can be easily integrity tested by water breakthrough test
  • Each filter labelled with an individual serial number

High Quality Standards

  • Validated with Brevundimonas diminuta (ATCC 19146) in liquid at a challenge level of >107/cm2 filter area
  • 100% integrity tested
  • Manufactured in a clean environment under controlled conditions
  • Materials of construction tested for biological compatibility
  • Comprehensive validation guide available


* Required
Need Help?

Vent Filters

List Price
$ 1,204.00
Description

Pall Acro 50 disposable filters are 0.2 micron rated and contain a Pall hydrophobic PTFE membrane and are ideal for the sterile venting of small containers and as an in-line gas filter. The large effective filter area provides high flow rates and filters can be autoclaved several times ensuring low costs.

Features

  • PTFE membrane provides high flow rates and resists ‘wetting’ out by water vapor
  • Light compact unit suitable for small vessels and flexible tubing
  • Can be easily integrity tested by water breakthrough test
  • Each filter labelled with an individual serial number

High Quality Standards

  • Validated with Brevundimonas diminuta (ATCC 19146) in liquid at a challenge level of >107/cm2 filter area
  • 100% integrity tested
  • Manufactured in a clean environment under controlled conditions
  • Materials of construction tested for biological compatibility
  • Comprehensive validation guide available
Specifications

Materials of Construction


Membrane PTFE on a polypropylene support
Housing Polypropylene
Sealing technology Thermal bonding


Operating Parameters1


Max operating pressure 4.1 bar at 20 °C (68 ºF)
Max operating temperature 40 °C (104 ºF)


1 In compatible fluids which do not soften, swell or adversely affect the filter or its materials of construction.

Autoclave Sterilization

15 minutes at 121 °C (250 ºF)
Warning: This product must not be sterilized in-situ by passing steam through under pressure. Integrity should be verified after each autoclave cycle before use.

Connections

Inlet and Outlet: ¼ in. - ½ in. hose barb

Typical Effective Filtration Area

19.6 cm2

Removal Rating

0.2 micron

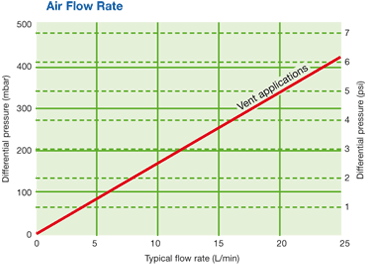

Typical Air Flow Rates

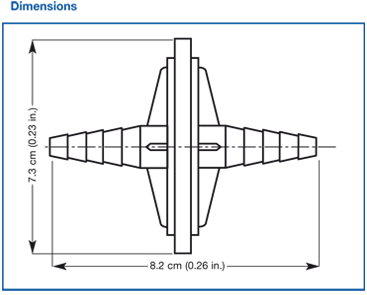

Nominal Dimensions

Ordering Information
Pall Part Number:6074270

1 Box of 72 filters (Filters only sold in quantities of 72)
Application
Filters - Gas
Segment
Filtration
