Universal clamp-on tubing valve - Versatile, reliable, safe
The ARTeSYN pinch valves enable reliable fluid control of tubing fluid paths, as used in Allegro™ single-use systems, regardless of their materials of construction.
Applications range from simple transfer line control up to complex automated unit operations using either manual or pneumatic pinch valves.
Intuitive tool-free clamp-on installation, executed in a simple 3 step sequence, enables quick and reliable operation.
The unique central spot pinch in its specific encapsulated valve seat offers the highest closure reliability and consistency in flow output, even after intense pinch cycles, as required for critical biopharmaceutical fluid control.
The ARTeSYN valves are available in a variety of sizes, with specific valve seats which allow the fitting of regular and braided tubing from 6.4 mm (¼ in.), up to 25.4 mm (1 in.) internal diameter (ID).
With a wide range of pinch valve sizes – the ARTeSYN portfolio is suitable for upstream processing, downstream processing, and formulation and filling.
The valve bodies are manufactured from high end 316L stainless steel ensuring it complies with the highest industry standards.
Features and Benefits
|Intuitive, tool free installation||Operator ease-of-use |
Safe and reliable processing
|Hemispherical closure||Highest closure resistance and reliability |
Consistent flow over pinching cycle
Minimized tubing wear
|Stem position visibility||Easy verification of valve position for operators|
|One hardware size, multiple tube materials||Versatility to use any tubing material|
|Clamp over existing single-use tube||Eliminate unnecessary junctions |
Reduced validation effort
|Re-use valve body||Reduce consumable complexity and cost|
|Manual or pneumatic valve options||Reduced operator errors with automated fluid control|
|Optional supportive bracket||Integration onto existing hardware|
A major biotech company with global operations has recently reviewed available technologies on market for safe, efficient and reliable control of fluids in single-use tubing. Here’s what they have to say about the selected ARTeSYN pinch valves:
ARTeSYN gets a "gold star" for innovation. The ARTeSYN pinch valve design is utterly reliable with a very progressive and positive shut-off at every pressure we employ.
The ARTeSYN pinch valve ensures that our manufacturing personnel no longer have issues with ratchet clamps and other types of closures leaking or becoming dislodged and allowing extremely valuable process chemistry to be contaminated or lost.
Finally, the overall service level we’re getting for these products is extremely good making it a well supported product.
- Fluid transfer
- Filtration manifolds
- Bioreactor harvest distribution
- Buffer and media preparation
- Tangential flow filtration
- Bulk drug substance filling
- Final drug product filling
Closure PrincipleThe actuation of the central stem on conventional bioprocessing tubing results in a gradual hemispherical closure of the flow path. The carefully engineered combination of stem and valve seat to specific tube size offers unmatched closure resistance. This principle also minimizes the risk of tubing wear due to pinching.
|Tubing Type (ID x OD)||Manual Valve Part Number||Pneumatic* Valve Part Number||Quantity|

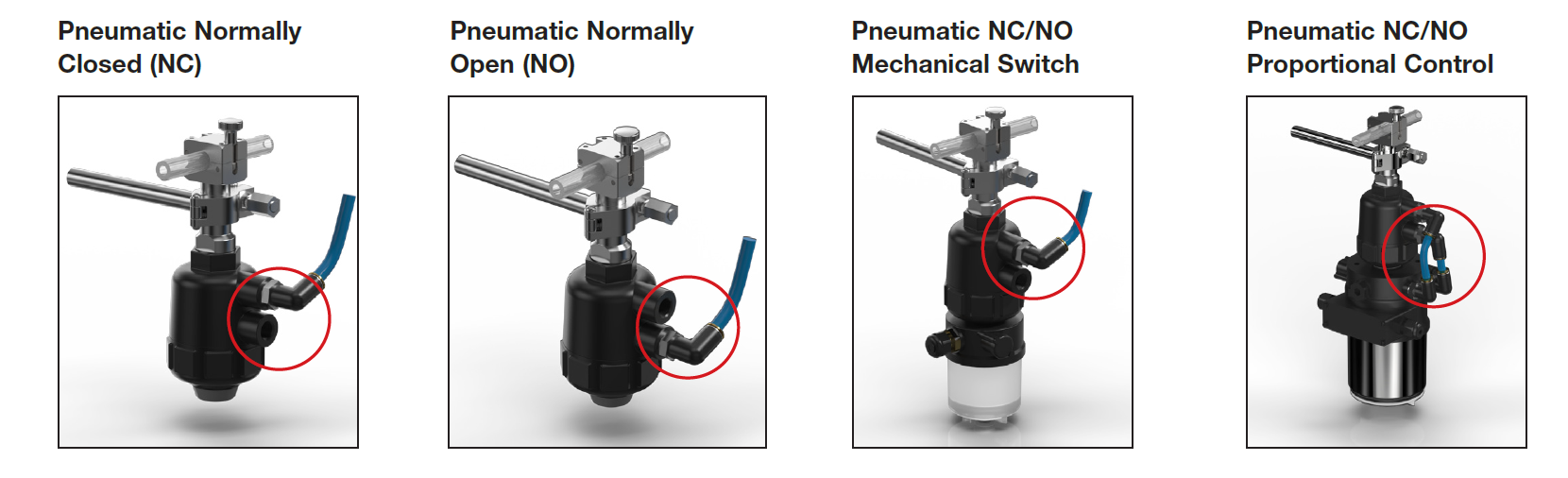

|6.4 mm (¼ in.) x 11.1 mm (7/16 in.)||PPVS0250X043716||PPVS0250X043719||1 valve per box|
|6.4 mm (¼ in.) x 12.7 mm (½ in.)||PPVS0250X050016||PPVS0250X050019||1 valve per box|
|9.5 mm (⅜ in.) x 15.9 mm (⅝ in.)||PPVS0375X062516||PPVS0375X062519||1 valve per box|
|12.7 mm (½ in.) x 19.1 mm (¾ in.)||PPVS0500X075016||PPVS0500X075019||1 valve per box|
|12.7 mm (½ in.) x 22.2 mm (⅞ in.)||PPVS0500X087516||PPVS0500X087519||1 valve per box|
|19.1 mm (¾ in.) x 25.4 mm (1 in.)||PPVS0750X100016||PPVS0750X100019||1 valve per box|
|19.1 mm (¾ in.) x 28.6 mm (1⅛ in.)||PPVS0750X112516||PPVS0750X112519||1 valve per box|
|25.4 mm (1 in.) x 34.9 mm (1⅜ in.)||PPVS1000X137516||PPVS1000X137519||1 valve per box|
*Normally closed by default
Alternative, non-shelved, pneumatic valve configurations are listed in the datasheet

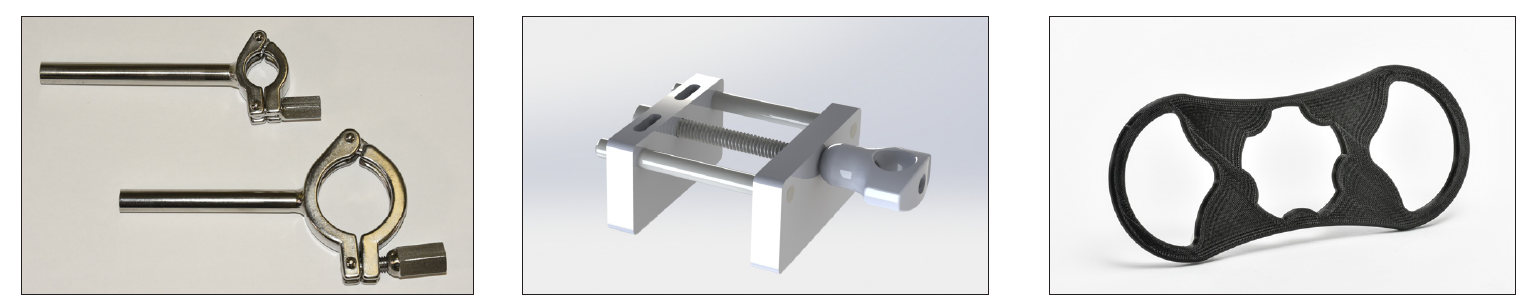

|Description||Part Number||Matching Valve Size||Valve Version||Quantity|
|Mini sanitary ½ in. clamp rod bracket||ARTD001031||¼ in., ⅜ in., ½ in., ¾ in.||Pneumatic only||1 bracket per box|
|Sanitary 1½ in. clamp with rod bracket||ARTD001030||1 in.||Pneumatic only||1 bracket per box|
|Universal bracket||ARTGA005515||All||All||1 bracket per box|
|Handle adapter||PVU38HA||¼ in., 3/8 in., ½ in.||Manual only||1 bracket per box|
|Handle adapter||PVU60HA||¾ in.||Manual only||1 bracket per box|
|Handle adapter||PVU76HA||1 in.||Manual only||1 bracket per box|
Detailed instructions for use are available. Contact your Pall representative for a copy before product use.
Request 3D models of the product here.
