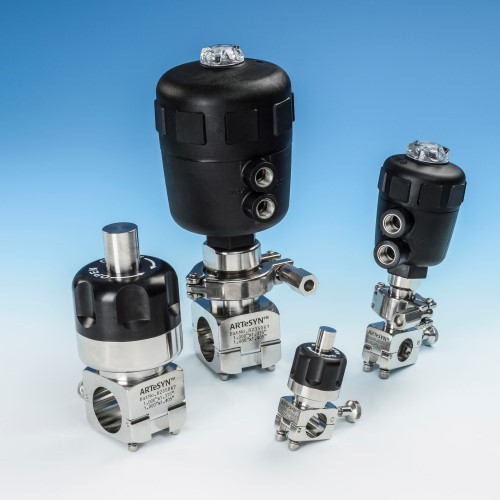

ARTeSYN♦ Pinch Valves product photo Primary L

ARTeSYN♦ Pinch Valves

Universal clamp-on tubing valve - Versatile, reliable, safe

The ARTeSYN pinch valves enable reliable fluid control of tubing fluid paths, as used in Allegro™ single-use systems, regardless of their materials of construction.

Applications range from simple transfer line control up to complex automated unit operations using either manual or pneumatic pinch valves.

Intuitive tool-free clamp-on installation, executed in a simple 3 step sequence, enables quick and reliable operation.

Performance Graph

The unique central spot pinch in its specific encapsulated valve seat offers the highest closure reliability and consistency in flow output, even after intense pinch cycles, as required for critical biopharmaceutical fluid control.

The ARTeSYN valves are available in a variety of sizes, with specific valve seats which allow the fitting of regular and braided tubing from 6.4 mm (¼ in.), up to 25.4 mm (1 in.) internal diameter (ID).

With a wide range of pinch valve sizes – the ARTeSYN portfolio is suitable for upstream processing, downstream processing, and formulation and filling.

The valve bodies are manufactured from high end 316L stainless steel ensuring it complies with the highest industry standards.

Performance Graph

Automation Options

Performance Graph

Features and Benefits


Features Benefits
Intuitive, tool free installation Operator ease-of-use
Safe and reliable processing
Hemispherical closure Highest closure resistance and reliability
Consistent flow over pinching cycle
Minimized tubing wear
Stem position visibility Easy verification of valve position for operators
One hardware size, multiple tube materials Versatility to use any tubing material
Clamp over existing single-use tube Eliminate unnecessary junctions
Reduced validation effort
Re-use valve body Reduce consumable complexity and cost
Manual or pneumatic valve options Reduced operator errors with automated fluid control
Optional supportive bracket Integration onto existing hardware



* Required
Need Help?
Download Datasheet

A) Manual valves for flexible tubing

Manual pinch valve - ¼ in. x 7/16 in.

Product ID: PPVS0250X043716
Unit of Measure
1/EA
Min Order Qty
1
Product Wetted Path
Flexible tubing
Mounting Bracket
Order ARTGA005515
Internal Tubing Diameter
0.25 in
External Tubing Diameter
0.437 in
Tubing Type
Braided or non-braided
$ 411.00

Manual pinch valve - ¼ in. x ½ in.

Product ID: PPVS0250X050016
Unit of Measure
1/EA
Min Order Qty
1
Product Wetted Path
Flexible tubing
Mounting Bracket
Order ARTGA005515
Internal Tubing Diameter
0.25 in
External Tubing Diameter
0.5 in
Tubing Type
Braided or non-braided
$ 411.00

Manual pinch valve - ⅜ in. x ⅝ in.

Product ID: PPVS0375X062516
Unit of Measure
1/EA
Min Order Qty
1
Product Wetted Path
Flexible tubing
Mounting Bracket
Order ARTGA005515
Internal Tubing Diameter
0.375 in
External Tubing Diameter
0.625 in
Tubing Type
Braided or non-braided
$ 419.00

Manual pinch valve - ½ in. x ¾ in.

Product ID: PPVS0500X075016
Unit of Measure
1/EA
Min Order Qty
1
Product Wetted Path
Flexible tubing
Mounting Bracket
Order ARTGA005515
Internal Tubing Diameter
0.5 in
External Tubing Diameter
0.75 in
Tubing Type
Braided or non-braided
$ 571.00

Manual pinch valve - ½ in. x ⅞ in.

Product ID: PPVS0500X087516
Unit of Measure
1/EA
Min Order Qty
1
Product Wetted Path
Flexible tubing
Mounting Bracket
Order ARTGA005515
Internal Tubing Diameter
0.5 in
External Tubing Diameter
0.875 in
Tubing Type
Braided or non-braided
$ 576.00

Manual pinch valve - ¾ in. x 1⅛ in.

Product ID: PPVS0750X112516
Unit of Measure
1/EA
Min Order Qty
1
Product Wetted Path
Flexible tubing
Mounting Bracket
Order ARTGA005515
Internal Tubing Diameter
0.75 in
External Tubing Diameter
1.113 in
Tubing Type
Braided or non-braided
$ 631.00

Manual pinch valve - 1 in. x 1⅜ in.

Product ID: PPVS1000X137516
Unit of Measure
1/EA
Min Order Qty
1
Product Wetted Path
Flexible tubing
Mounting Bracket
Order ARTGA005515
Internal Tubing Diameter
1 in
External Tubing Diameter
1.375 in
Tubing Type
Braided or non-braided
$ 755.00

Manual pinch valve - ¾ in. x 1 in.

Product ID: PPVS0750X100016
Unit of Measure
1/EA
Min Order Qty
1
Product Wetted Path
Flexible tubing
Mounting Bracket
Order ARTGA005515
Internal Tubing Diameter
0.75 in
External Tubing Diameter
1 in
Tubing Type
Braided or non-braided
$ 631.00

B) Pneumatic valves for flexible tubing

Pneumatic normally closed pinch valve - ¼ in. x 7/16 in.

Product ID: PPVS0250X043719
Unit of Measure
1/EA
Min Order Qty
1
Product Wetted Path
Flexible tubing
Mounting Bracket
Order ARTD001031
Internal Tubing Diameter
0.25 in
External Tubing Diameter
0.437 in
Tubing Type
Braided or non-braided
Recommended Actuator Pressure
6 barg
See All Attributes
$ 1,168.00

Pneumatic normally closed pinch valve - ¼ in. x ½ in.

Product ID: PPVS0250X050019
Unit of Measure
1/EA
Min Order Qty
1
Product Wetted Path
Flexible tubing
Mounting Bracket
Order ARTD001031
Internal Tubing Diameter
0.25 in
External Tubing Diameter
0.5 in
Tubing Type
Braided or non-braided
Recommended Actuator Pressure
6 barg
See All Attributes
$ 1,168.00

Pneumatic normally closed pinch valve - ⅜ in. x ⅝ in.

Product ID: PPVS0375X062519
Unit of Measure
1/EA
Min Order Qty
1
Product Wetted Path
Flexible tubing
Mounting Bracket
Order ARTD001031
Internal Tubing Diameter
0.375 in
External Tubing Diameter
0.625 in
Tubing Type
Braided or non-braided
Recommended Actuator Pressure
6 barg
See All Attributes
$ 1,168.00

Pneumatic normally closed pinch valve - ½ in. x ¾ in.

Product ID: PPVS0500X075019
Unit of Measure
1/EA
Min Order Qty
1
Product Wetted Path
Flexible tubing
Mounting Bracket
Order ARTD001031
Internal Tubing Diameter
0.5 in
External Tubing Diameter
0.75 in
Tubing Type
Braided or non-braided
Recommended Actuator Pressure
6 barg
See All Attributes
$ 1,418.00

Pneumatic normally closed pinch valve - ½ in. x ⅞ in.

Product ID: PPVS0500X087519
Unit of Measure
1/EA
Min Order Qty
1
Product Wetted Path
Flexible tubing
Mounting Bracket
Order ARTD001031
Internal Tubing Diameter
0.5 in
External Tubing Diameter
0.875 in
Tubing Type
Braided or non-braided
Recommended Actuator Pressure
6 barg
See All Attributes
$ 1,418.00

Pneumatic normally closed pinch valve - ¾ in. x 1 in.

Product ID: PPVS0750X100019
Unit of Measure
1/EA
Min Order Qty
1
Product Wetted Path
Flexible tubing
Mounting Bracket
Order ARTD001031
Internal Tubing Diameter
0.75 in
External Tubing Diameter
1 in
Tubing Type
Braided or non-braided
Recommended Actuator Pressure
6 barg
See All Attributes
$ 1,601.00

Pneumatic normally closed pinch valve - ¾ in. x 1⅛ in.

Product ID: PPVS0750X112519
Unit of Measure
1/EA
Min Order Qty
1
Product Wetted Path
Flexible tubing
Mounting Bracket
Order ARTD001031
Internal Tubing Diameter
0.75 in
External Tubing Diameter
1.125 in
Tubing Type
Braided or non-braided
Recommended Actuator Pressure
6 barg
See All Attributes
$ 1,601.00

Pneumatic normally closed pinch valve - 1 in. x 1⅜ in.

Product ID: PPVS1000X137519
Unit of Measure
1/EA
Min Order Qty
1
Product Wetted Path
Flexible tubing
Mounting Bracket
Order ARTD001030
Internal Tubing Diameter
1 in
External Tubing Diameter
1.375 in
Tubing Type
Braided or non-braided
Recommended Actuator Pressure
6 barg
See All Attributes
$ 1,821.00

C) Bracket for manual valves

Universal Body Bracket

Product ID: ARTGA005515
Unit of Measure
1/EA
Min Order Qty
1
Matching valve tube
Manual pinch valve in.
Plate to plate spread
1.5 in.
$ 136.43

D) Brackets for pneumatic valves

Weld Rod Bracket For Pneumatic Pinch Valves- Mini Sanitary product photo

Weld Rod Bracket For Pneumatic Pinch Valves- Mini Sanitary

Product ID: ARTD001031
Unit of Measure
1/EA
Min Order Qty
1
$ 75.23
Weld Rod Bracket For Pneumatic Pinch Valves - 11/2 in. Sanitary product photo

Weld Rod Bracket For Pneumatic Pinch Valves - 11/2 in. Sanitary

Product ID: ARTD001030
Unit of Measure
1/EA
Min Order Qty
1
$ 80.33
Description

Universal clamp-on tubing valve - Versatile, reliable, safe

The ARTeSYN pinch valves enable reliable fluid control of tubing fluid paths, as used in Allegro™ single-use systems, regardless of their materials of construction.

Applications range from simple transfer line control up to complex automated unit operations using either manual or pneumatic pinch valves.

Intuitive tool-free clamp-on installation, executed in a simple 3 step sequence, enables quick and reliable operation.

Performance Graph

The unique central spot pinch in its specific encapsulated valve seat offers the highest closure reliability and consistency in flow output, even after intense pinch cycles, as required for critical biopharmaceutical fluid control.

The ARTeSYN valves are available in a variety of sizes, with specific valve seats which allow the fitting of regular and braided tubing from 6.4 mm (¼ in.), up to 25.4 mm (1 in.) internal diameter (ID).

With a wide range of pinch valve sizes – the ARTeSYN portfolio is suitable for upstream processing, downstream processing, and formulation and filling.

The valve bodies are manufactured from high end 316L stainless steel ensuring it complies with the highest industry standards.

Performance Graph

Automation Options

Performance Graph

Features and Benefits


Features Benefits
Intuitive, tool free installation Operator ease-of-use
Safe and reliable processing
Hemispherical closure Highest closure resistance and reliability
Consistent flow over pinching cycle
Minimized tubing wear
Stem position visibility Easy verification of valve position for operators
One hardware size, multiple tube materials Versatility to use any tubing material
Clamp over existing single-use tube Eliminate unnecessary junctions
Reduced validation effort
Re-use valve body Reduce consumable complexity and cost
Manual or pneumatic valve options Reduced operator errors with automated fluid control
Optional supportive bracket Integration onto existing hardware

Testimonials



A major biotech company with global operations has recently reviewed available technologies on market for safe, efficient and reliable control of fluids in single-use tubing. Here’s what they have to say about the selected ARTeSYN pinch valves:

ARTeSYN gets a "gold star" for innovation. The ARTeSYN pinch valve design is utterly reliable with a very progressive and positive shut-off at every pressure we employ.

The ARTeSYN pinch valve ensures that our manufacturing personnel no longer have issues with ratchet clamps and other types of closures leaking or becoming dislodged and allowing extremely valuable process chemistry to be contaminated or lost.

Finally, the overall service level we’re getting for these products is extremely good making it a well supported product.


Site single-use technology lead at a major biotech firm in Singapore
Applications
  • Fluid transfer
  • Filtration manifolds
  • Bioreactor harvest distribution
  • Buffer and media preparation
  • Chromatography
  • Tangential flow filtration
  • Bulk drug substance filling
  • Final drug product filling
Performance Graph

Closure Principle

The actuation of the central stem on conventional bioprocessing tubing results in a gradual hemispherical closure of the flow path. The carefully engineered combination of stem and valve seat to specific tube size offers unmatched closure resistance. This principle also minimizes the risk of tubing wear due to pinching. Performance Graph
Ordering Information

Valves
Hardware


Tubing Type (ID x OD) Manual Valve Part Number Pneumatic* Valve Part Number Quantity
6.4 mm (¼ in.) x 11.1 mm (7/16 in.) PPVS0250X043716 PPVS0250X043719 1 valve per box
6.4 mm (¼ in.) x 12.7 mm (½ in.) PPVS0250X050016 PPVS0250X050019 1 valve per box
9.5 mm (⅜ in.) x 15.9 mm (⅝ in.) PPVS0375X062516 PPVS0375X062519 1 valve per box
12.7 mm (½ in.) x 19.1 mm (¾ in.) PPVS0500X075016 PPVS0500X075019 1 valve per box
12.7 mm (½ in.) x 22.2 mm (⅞ in.) PPVS0500X087516 PPVS0500X087519 1 valve per box
19.1 mm (¾ in.) x 25.4 mm (1 in.) PPVS0750X100016 PPVS0750X100019 1 valve per box
19.1 mm (¾ in.) x 28.6 mm (1⅛ in.) PPVS0750X112516 PPVS0750X112519 1 valve per box
25.4 mm (1 in.) x 34.9 mm (1⅜ in.) PPVS1000X137516 PPVS1000X137519 1 valve per box


*Normally closed by default

Alternative, non-shelved, pneumatic valve configurations are listed in the datasheet

Accessories


Description Part Number Matching Valve Size Valve Version Quantity
Mini sanitary ½ in. clamp rod bracket ARTD001031 ¼ in., ⅜ in., ½ in., ¾ in. Pneumatic only 1 bracket per box
Sanitary 1½ in. clamp with rod bracket ARTD001030 1 in. Pneumatic only 1 bracket per box
Universal bracket ARTGA005515 All All 1 bracket per box
Handle adapter PVU38HA ¼ in., 3/8 in., ½ in. Manual only 1 bracket per box
Handle adapter PVU60HA ¾ in. Manual only 1 bracket per box
Handle adapter PVU76HA 1 in. Manual only 1 bracket per box


Performance Graph

Detailed instructions for use are available. Contact your Pall representative for a copy before product use.

Request 3D models of the product here.
