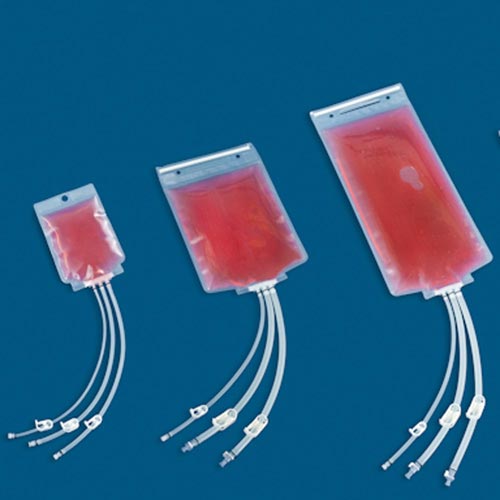

Allegro™ TK8 2D Biocontainers and Standard Systems product photo Primary L

Allegro™ TK8 2D Biocontainers and Standard Systems

Cleanliness and simplicity

Highlights

  • State-of-the-art designs and materials
  • Manufactured on automated equipment under ISO Class 7 cleanroom conditions
  • Suitable for virtually any storage application
  • Standard and custom configurations available
  • 100% biocontainer integrity testing

  • “Universal” Allegro TK8 biocontainer film

Overview

Efficient movement and storage of liquids is critical to modern biotechnology processes. The deployment of single-use containers for this task has become ubiquitous in recent years because they reduce risk while also driving down costs in comparison with traditional stainless steel equipment.

Allegro TK8 2D biocontainers have been developed to meet the demand for cost-effective, scalable single-use liquid storage containers that are compatible with Pall’s market-leading range of single-use mixing and bioreactor technologies.

At the heart of Allegro TK8 systems and products is Allegro TK8 film, a state-of-the art multi-layer gas-barrier polymer laminate. The product-contacting layer of the Allegro TK8 film is blowextruded in-house under cleanroom conditions using medicalgrade ultralow-density polyethylene resin, then laminated to create a gas barrier film of exceptional cleanliness, strength and clarity that is animal derived component free (ADCF) and complies fully with USP Class VI requirements.

The Allegro TK8 film is constructed from laminated layers of PA (polyamide), EVOH (ethylene vinyl alcohol polymer) and ULDPE (ultralow density polyethylene). The outer PA layer provides robust puncture resistance, strength, and excellent thermal stability. The EVOH layer minimizes gas diffusion across the film while maintaining a very good flex crack resistance. The ULDPE layers provide flexibility, integrity and an ultra-clean, ultra-pure, low-extractables product contacting layer. The combination of these layers results in a film that has outstanding optical clarity, is easy to handle, and performs well in a broad range of bioprocess applications. The inner ULDPE layer used in the Allegro TK8 film is blow-extruded in-house by Pall under cleanroom conditions (0.2 μm filtered air), ensuring the cleanest possible product-contacting surface. Lamination is also performed under controlled, ultra-clean conditions. Lastly, the Allegro TK8 film is converted into Pall biocontainer products in our ISO Class 5 cleanroom.
