For 50 L, 100 L, 200 L and 500 L Allegro Single-Use SystemsAllegro plastic totes have been specifically designed and engineered to provide robust support for single-use systems in biopharmaceutical fluid management applications.

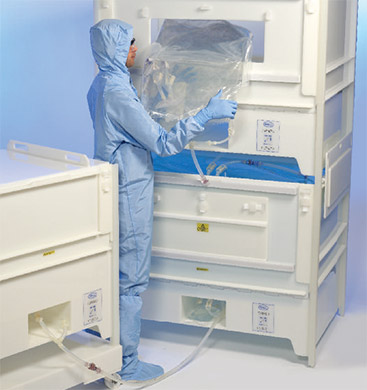

Pall's collapsible plastic Allegro totes enable easy implementation of 50 L, 100 L, 200 L and 500 L single-use systems around each unit operation, while reducing manufacturing footprint. The Allegro plastic tote has been specifically engineered in order to provide maximum flexibility in the processing environment with stackable, maneuverable and collapsible features.
The tote is made of polypropylene (PP) plastic material, thus providing broad chemical and high thermal resistance as required for clean room utilization. The plastic material also reduces the weight for easy maneuverability. The Allegro plastic tote design is suitable for fork-lift truck transfer, enabling easy movement even when fully loaded.
|Collapsible design||Reduced storage space requirements when not in use|
|Polypropylene construction||Lightweight and cleanable with a wide variety of agents due to excellent chemical resistance|
|Stackable||Can handle 100 L, 200 L or 500 L systems|
|Available in three different sizes||No operator intervention during filling for maximum reliability|
|Ease of use with Allegro 3D biocontainers||Flexibility in the choice of containers when requested|
|Usable with other biocontainers|
Materials of Construction
|Totes||Polypropylene reinforced with stainless steel|
|Hinge||Polypropylene with stainless steel hinge rod|
|Accessories - Lids, trolley base and outlet support plate||Polypropylene|
|Trolley casters||Nylon and 304 stainless steel|
Operating Temperature Range
|-40 °C to 60 ºC|
|Allegro 200 L plastic totes||Empty (closed/collapsed) x 5
Full x 3
|Allegro 500 L plastic totes||Empty (closed/collapsed) x 5
Full x 2
Note: Totes should not be stacked on trolleys
Table 1Allegro 50 L Plastic Tote
|Description||Allegro 50 L benchtop plastic tote|
|Maximum Load||55 Kg|
|Nominal Dimensions (LXWXH)||440 x 520 x 485 mm|
|For Use With||50 L 3D Allegro SUS1
Allegro SUTFF System
1 Used as a stand alone bench top 50 L plastic tote or in conjunction with the Allegro Single-use TFF system as a 50 L feed vessel.
Table 2Allegro 200 L Plastic Tote and Accessories
|Description||Allegro 200 L plastic tote||Allegro trolley for Allegro 200 L plastic tote||Allegro port bracket for Allegro 200 L plastic tote||Allegro lid for Allegro 200 L plastic tote|
|Weight||29 Kg||16.3 Kg||0.1 Kg||4 Kg|
|Maximum Load||700 Kg (3 full Allegro 200 L totes stacked)||388 Kg||–||–|
|Nominal Dimensions (LxWxH)||835 x 665 x 900 mm
835 x 665 x 560 mm 3
|855 x 665 x 212 mm||100 x 106 x 20 mm||770 x 635 x 75 mm|
2 A single port bracket is supplied with each Allegro 200 L plastic tote. Spares are available to order in packs of 5.
3 Collapsed dimensions
Table 3Allegro 500 L Plastic Tote and Accessories
|Description||Allegro 500 L plastic tote||Allegro trolley for Allegro 500 L plastic tote||Allegro port bracket for Allegro 500 L plastic tote||Allegro lid for Allegro 500 L plastic tote (2 sections)|
|Weight||55 Kg||27.4 Kg||0.25 Kg||9 Kg (4.5 Kg per section)|
|Maximum Load||1400 Kg (2 full Allegro 500 L totes stacked)||747.5 Kg||–||–|
|Nominal Dimensions (LxWxH)||1220 x 870 x 974 mm
1220 x 870 x 447 mm 5
|1250 x 870 x 260 mm||100 x 208 x 20 mm||1155 x 835 x 75 mm|
4 A single port bracket is supplied with each Allegro 500 L plastic tote. Spares are available to order in packs of 5.
5 Collapsed dimensions
NOTE: LGRBTTE50L is used as a stand alone bench top 50 L plastic tote or in conjunction with the Allegro Single-use TFF system as a 50 L feed vessel. If a non stand alone 50 L benchtop tote is required, an alternative design (LGRPTTE50L) is available in conjunction with the Allegro bioprocess work station.
Quality StandardsAllegro plastic totes are manufactured to high standards ensuring excellent build quality. Manufactured under a Quality Management System Certified to ISO 9001, the Allegro plastic totes are designed to be handled in a clean-room environment.
