GeneDisc® Ultra-Lyser product photo Primary L

GeneDisc® Ultra-Lyser

Easy, Rapid, Highly-Efficient Sample Preparation Instrument for DNA Analysis


The GeneDisc System is a complete, rapid, reliable and easy-to-use solution for rapid microbial testing in three simple steps from sample to result. The GeneDisc Ultra-Lyser is a combination of ultrasonic bath and dry block heater to address the sample preparation step for efficient, rapid and easy DNA extraction. Extracted DNA is then loaded into a GeneDisc plate designed for specific detection or quantification of microorganisms of interest. The GeneDisc plate is then placed into the GeneDisc Cycler for analysis. The analysis step runs for as little as an hour and the final results are displayed with no further operator intervention.

Features

  • Combined ultrasound and heating technology
  • High-powered ultrasonic bath
  • Easy to handle and use
  • Process 48 samples simultaneously

Benefits

  • Dramatically increases lysis efficiency
  • Minimizes time to result
  • Reduces hands-on time
  • Perfect for high throughput analysis
  • Part of a complete “sample to result” analytical tool

Sample Preparation and Cell Lysis

Sample preparation is a key part of rapid microbial testing by real-time PCR analysis. Efficient cell lysis enables higher sensitivity and better accuracy during quantitative analysis. The GeneDisc Ultra-Lyser's high-powered sonication bath and efficient dry block heater combine to improve sample preparation efficacy in food, environmental or pharmaceutical applications.

In many sample matrices, heating alone is not very effective in killing microorganisms. However, the use of sonication coupled with heating (thermosonication) is proven to be a more energy-efficient and effective method to accelerate the disruption of microbial cells1, 2. Sonication or ultrasound processing is the phenomenon in which ultrasound waves liberate energy to agitate particles in a sample. This is also referred to as “cavitation”. Moreover, in many biological applications, probes delivering higher energy ultrasonic irradiations are used to disrupt the microbial cell wall. However, this very efficient lysis method also damages DNA strands.

The GeneDisc Ultra-Lyser multiplies the strength of high energy ultrasound technology by combining it with a high temperature heating process (100° C) to maximize microbial destruction while preserving DNA strand integrity. This results in higher test sensitivity and improved accuracy.

Operation Sequence

GeneDisc-Ultra-Lyser

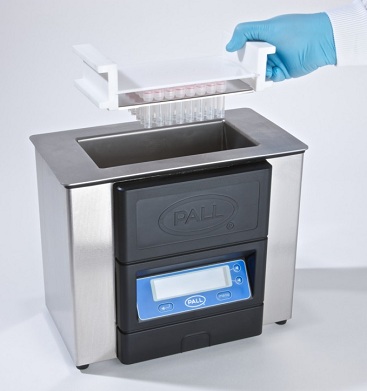

Step 1: Add lysis tube to the rack and place it on the ultrasonic bath, then run the sonication.


GeneDisc-Ultra-Lyser

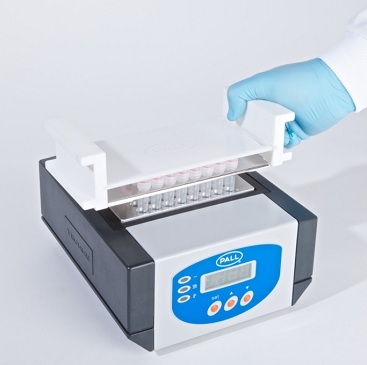

Step 2: Transfer the rack to the dry block heater at 100°C.


Cells have been lyzed, the DNA is released and ready to be processed. Transfer to the GeneDisc plate and analyze using the GeneDisc Cycler.

References:
1 P. Piyasena, E. Mohareb, R.C. McKellar, 2003. Inactivation Of Microbes Using Ultrasound: A Review. International Journal of Food Microbiology, 207-216
2 McClements, D.J., 1995. Advances In The Application Of Ultrasound In Food Analysis And Processing. Trends in Food Science and Technology 6 (9), 293-299


* Required
Need Help?
Description

Easy, Rapid, Highly-Efficient Sample Preparation Instrument for DNA Analysis


The GeneDisc System is a complete, rapid, reliable and easy-to-use solution for rapid microbial testing in three simple steps from sample to result. The GeneDisc Ultra-Lyser is a combination of ultrasonic bath and dry block heater to address the sample preparation step for efficient, rapid and easy DNA extraction. Extracted DNA is then loaded into a GeneDisc plate designed for specific detection or quantification of microorganisms of interest. The GeneDisc plate is then placed into the GeneDisc Cycler for analysis. The analysis step runs for as little as an hour and the final results are displayed with no further operator intervention.

Features

  • Combined ultrasound and heating technology
  • High-powered ultrasonic bath
  • Easy to handle and use
  • Process 48 samples simultaneously

Benefits

  • Dramatically increases lysis efficiency
  • Minimizes time to result
  • Reduces hands-on time
  • Perfect for high throughput analysis
  • Part of a complete “sample to result” analytical tool

Sample Preparation and Cell Lysis

Sample preparation is a key part of rapid microbial testing by real-time PCR analysis. Efficient cell lysis enables higher sensitivity and better accuracy during quantitative analysis. The GeneDisc Ultra-Lyser's high-powered sonication bath and efficient dry block heater combine to improve sample preparation efficacy in food, environmental or pharmaceutical applications.

In many sample matrices, heating alone is not very effective in killing microorganisms. However, the use of sonication coupled with heating (thermosonication) is proven to be a more energy-efficient and effective method to accelerate the disruption of microbial cells1, 2. Sonication or ultrasound processing is the phenomenon in which ultrasound waves liberate energy to agitate particles in a sample. This is also referred to as “cavitation”. Moreover, in many biological applications, probes delivering higher energy ultrasonic irradiations are used to disrupt the microbial cell wall. However, this very efficient lysis method also damages DNA strands.

The GeneDisc Ultra-Lyser multiplies the strength of high energy ultrasound technology by combining it with a high temperature heating process (100° C) to maximize microbial destruction while preserving DNA strand integrity. This results in higher test sensitivity and improved accuracy.

Operation Sequence

GeneDisc-Ultra-Lyser

Step 1: Add lysis tube to the rack and place it on the ultrasonic bath, then run the sonication.


GeneDisc-Ultra-Lyser

Step 2: Transfer the rack to the dry block heater at 100°C.


Cells have been lyzed, the DNA is released and ready to be processed. Transfer to the GeneDisc plate and analyze using the GeneDisc Cycler.

References:
1 P. Piyasena, E. Mohareb, R.C. McKellar, 2003. Inactivation Of Microbes Using Ultrasound: A Review. International Journal of Food Microbiology, 207-216
2 McClements, D.J., 1995. Advances In The Application Of Ultrasound In Food Analysis And Processing. Trends in Food Science and Technology 6 (9), 293-299
Specifications

Physical Dimensions (Ultrasonic Bath)


Weight 6.9 kg (15.2 lb)
Dimensions (Height x Width x Depth) Cabinet: 280 x 345 x 200 mm (11 x 13.6 x 7.9 in.)
Volume 1.4 liter



Physical Dimensions (Dry Block Heater)


Weight 2.51 kg (5.54 lb)
Dimensions (Height x Width x Depth) Cabinet: 105 x 260 x 202 mm (4.1 x 10.2 x 8 in.)



Electrical Data (Ultrasonic Bath) European Version


Voltage 230V AC, 50 Hz
Rated Power 130W
Ultrasonic Transducers 2 cylindrical units per bath, frequency 32 - 38 kHz



Electrical Data (Ultrasonic Bath) US Version


Voltage 110 V AC, 60 Hz
Rated Power 130W
Ultrasonic Transducers 2 cylindrical units per bath, frequency 32 - 38 kHz



Electrical Data (Dry Block Heater) European Version


Voltage 230 V AC, 50 Hz
Rated Power 300W



Electrical Data (Dry Block Heater) US Version


Voltage 110 V AC, 60 Hz
Rated Power 300W



Environmental Conditions


Altitudes Up to 2000 m (6500 ft)
Operating Temperature +5° C to +40° C
Maximum Relative Humidity Up to 95 % (non-condensing)



Storage Conditions


Ambient Temperatures - 20° C to + 70° C, relative humidity within the range of 10 % to 95 % (non-condensing)



Materials of Construction (Ultrasonic Bath)

Stainless steel grade 304L, hard chrome plate to internal base, 2 mm thickness. The bath is designed to accept one rack of 48 lysis tubes.

Materials of Construction (Dry Block Heater)

Solid block of aluminum alloy designed to accept up to 48 lysis tubes.
