UH218 Series Athalon® CM High Pressure Filters

Athalon® CM maximum-life filters with Crixus-enabled remote monitoring technology utilize predictive analysis and remote diagnostics to deliver the highest level of sustained fluid system protection, across all applications, regardless of severity.

Athalon CM filters feature an industry leading BetaX(C)=2000* filter efficiency; the highest rated filter performance available today.

(* per ISO 16889)

Featuring

  • Crixus-enabled technology for remote monitoring and predictive analytics
  • Remote wireless connection for continuous real time monitoring of filter and fluid assets
  • Cloud connectivity provide access to system information from anywhere in the world
  • Patented Ultipleat® (laid-over pleat) filter medium pack and Stress-Resistant Technology (SRT) Media for consistent, reliable, protection of system components over the full service life of the filter element
  • Beta ≥ 2000 performance to rapidly achieve and sustain required fluid system cleanliness
  • Low clean pressure drop, delivering maximum filter capacity in the smallest footprint for low energy operation
  • Anti-static construction to prevent electrostatic discharge from damaging your filter and degrading your fluid

For more information on Crixus, contact Pall or visit www.pall.com



Need Help?
Ask a Question
* Required

Documents

Datasheets

Download: English

Description

Athalon® CM maximum-life filters with Crixus-enabled remote monitoring technology utilize predictive analysis and remote diagnostics to deliver the highest level of sustained fluid system protection, across all applications, regardless of severity.

Athalon CM filters feature an industry leading BetaX(C)=2000* filter efficiency; the highest rated filter performance available today.

(* per ISO 16889)

Featuring

  • Crixus-enabled technology for remote monitoring and predictive analytics
  • Remote wireless connection for continuous real time monitoring of filter and fluid assets
  • Cloud connectivity provide access to system information from anywhere in the world
  • Patented Ultipleat® (laid-over pleat) filter medium pack and Stress-Resistant Technology (SRT) Media for consistent, reliable, protection of system components over the full service life of the filter element
  • Beta ≥ 2000 performance to rapidly achieve and sustain required fluid system cleanliness
  • Low clean pressure drop, delivering maximum filter capacity in the smallest footprint for low energy operation
  • Anti-static construction to prevent electrostatic discharge from damaging your filter and degrading your fluid

For more information on Crixus, contact Pall or visit www.pall.com

Specifications

Notes and Specifications Filter Housing

  • Flows to 230 L/min (60 US gpm)
  • Pressures to 414 bar (6000 psi)
  • Port Size 1” and 1¼”
  • Rated Fatigue Pressure: 0-240 bar (3500 psi) 1 million cycles.
  • Filter Element Burst Pressure: 10 bard (150 psid)
  • Fluid Compatibility: Compatible with all petroleum oils and most water glycols, water-oil emulsions, and synthetic hydraulic and lubrication fluids
  • Temperature Range: Fluorocarbon Seals: -29 ˚C to 120 ˚C (-20 ˚F to 248 ˚F) 60 ˚C (140 ˚F) maximum in HWCF or water glycol fluids
  • Power Supply: 24VDC±10%, maximum load 0.4A
  • IP Rating: IP65 with mating connectors fitted
  • Wireless Connection: Maximum range from gateway 100m, all wireless signals are CE, UL and FCC compliant
  • Materials of Construction: Head and Cover: Ductile Cast Iron. Tube: Carbon Steel
  • Filter Element: Inorganic fibers impregnated and bonded with epoxy resins. Polymer endcaps. Anti-static media design.

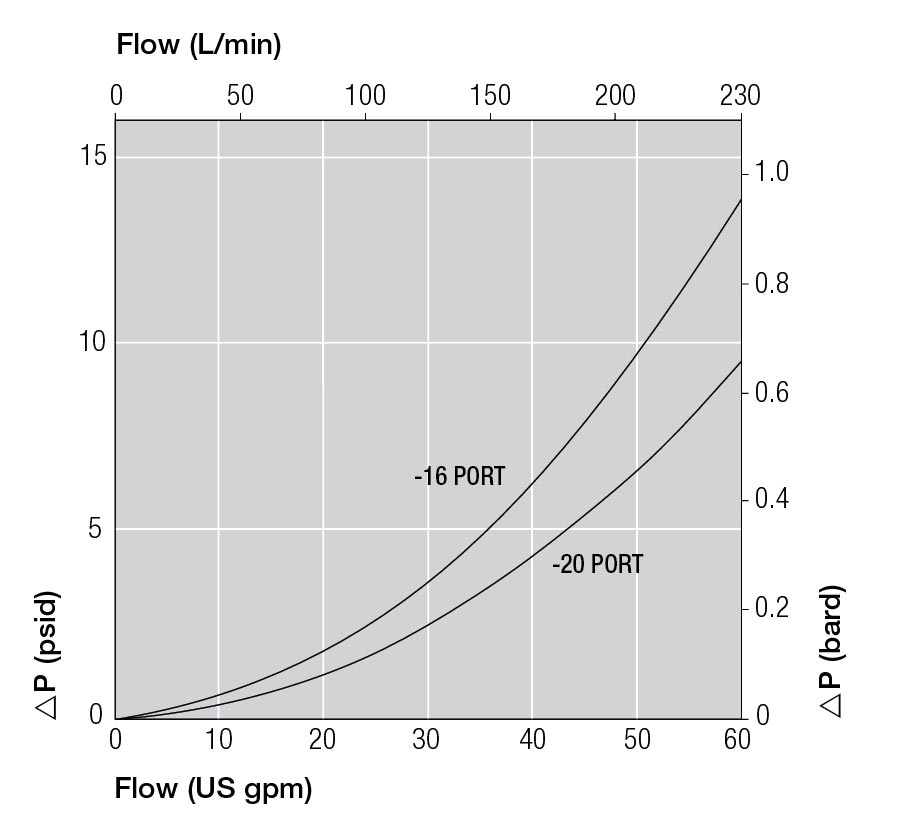

Pressure Drop Information

Housing pressure drop using fluid with 0.9 S.G.
Housing pressure drop is directly proportional to specific gravity.


Element Pressure Drop

218 Series Filter Elements – bard/1000 L/min (psid/US gpm)


Length Code AZ AP AN AS AT
04 20.07 (1.102) 8.51 (0.467) 5.72 (0.314) 3.55 (0.195) 2.69 (0.029)
08 9.93 (0.545) 4.21 (0.231) 2.83 (0.155) 1.76 (0.096) 1.33 (0.073)
13 5.95 (0.327) 2.52 (0.139) 1.70 (0.093) 1.05 (0.058) 0.80 (0.044)
20 3.95 (0.217) 1.68 (0.092) 1.13 (0.062) 0.70 (0.038) 0.53 (0.029)


Multiply actual flow rate times factor in table below to determine pressure drop with fluid at 32 cSt (150 SUS), 0.9 S.G. Correct for other fluids by multiplying new viscosity in cSt/32 (SUS/150) x new S.G./0.9. Note: factors are per 1000 L/min and per 1 US gpm.

Sample ΔP calculation

UH218 Series 13” length housing with C20 BSPP ports using AN grade media. Operating conditions 100 L/min flow rate using a hydraulic fluid of 50 cSt and specific gravity (S.G.) 1.2.

Total Filter ΔP
= ΔP housing + ΔP element
= (0.13 x 1.2/0.9) bard (housing)
+ ((100 x 1.70/1000) x 50/32 x 1.2/0.9) bard (element)
= 0.17 (housing) + 0.35 bard (element)
= 0.52 bard (7.6 psid)

Type

Housings, Vessels, or Assemblies

Ordering Information

For new installations, select one complete part number from each section below

Note: Pall Athalon® CM filter housings are supplied without filter elements or warning devices fitted. Never operate the filter unless a filter element is fitted and all warning device ports are sealed. Note: Z indicates fluorocarbon seals are standard. Other options are available; contact Pall. Housing P/N designates indicator port fitted with a plastic shipping plug.


Table A Table B
Port & Length Options
Port & Length Options
Bypass & Orientation OptionsTable 4
A1604Z G
A1608Z G
A2008Z G
A2013Z G
A2020Z G
C1604Z G
C1608Z G
C2008Z G
C2013Z G
C2020Z G
E1604Z G
E1608Z G
E2008Z G
E2013Z G
E2020Z G
G1604 G
G1608 G
G2008Z G
G2013Z G
G2020Z G


Table 1: Housing Port Options


Code Port Style Max. Operating Pressure
A SAE J1926 straight thread 414 bar (6000 psi)
C BSP ISO 228 threads 414 bar (6000 psi)
E Flange J518C code 62 414 bar (6000 psi)
G ISO 6162 split flange 400 bar (5800 psi)


Table 2: Port Size


Code Port Style
16 1” nominal
20 1¼” nominal


Table 3: Housing Length and Seal Options


Code Length and Seal Material
04Z 4” nominal length, fluorocarbon seals
08Z 8” nominal length, fluorocarbon seals
13Z 13” nominal length, fluorocarbon seals
20Z 20” nominal length, fluorocarbon seals


Table 4: Bypass Valve and Service Options


Code Bypass Valve and Service Type
G 4.5 bard (65 psid) bypass valve, Cap service


Table 5: Region


Code Region
01 USA
02 EU
03 Japan
04 Korea
05 Australia
06 China


Seal Kit P/N: SH 218 SKZ

*Other seal material options are available; Contact Pall

Note: Z indicates fluorocarbon seals are standard. Other options are available; contact Pall.

Table 6: Filter Element Options


Code ßx(c) ≥2000 based on ISO 16889 CST Rating*
AZ 3 07/04/01
AP 5 11/08/03
AN 7 13/09/04
AS 12 15/11/06
AT 25 16/14/08

* CST: Cyclic Stabilization Test to determine filter rating under stress conditions, based on SAE ARP4205

Allows for compliant hardware to connect to the Crixus cloud platform. At minimum, one gateway is required. Up to 50 Athalon CM housings and fluid interfaces can be connected to up to a single gateway. Power supply not provided.



Connects fluid property sensors to the Crixus cloud platform, enabling system fluid condition to be monitored remotely in real-time. The fluid interface includes the fluid property sensor and required sensor cables. Power supply not provided.

Table 7: Water Sensor Options


Code
1 Excludes water sensor
2 Includes water sensor


Table 8: Length Code Specifications


Length
Code
Maximum Overall Length mm (in)
C or G Ports
Maximum Overall Length mm (in)
A or E Ports
Element Removal
Clearance mm (in)
Empty Weight
kg (lb)
04 333.5 (13.13) 332.8 (13.10) 147 (5.79) 11.2 (24.7)
08 435.1 (17.13) 434.4 (17.10) 248 (9.76) 13.0 (28.7)
13 569.7 (22.43) 569.0 (22.40) 383 (15.08) 15.6 (34.4)
20 739.9 (29.13) 739.2 (29.10) 553 (21.77) 18.7 (41.2)

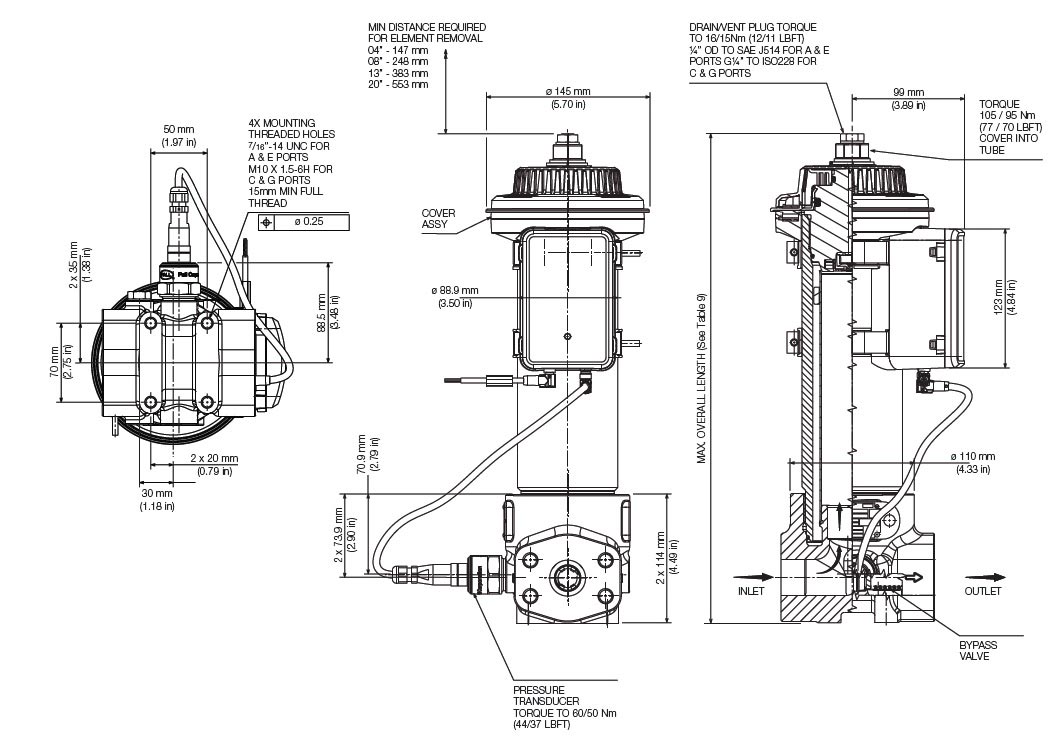

Dimensional Drawings

Dimensions in mm (inches)
