AcroPrep™ Advance 96-Well Filter Plates for DNA Purification product photo Primary L

AcroPrep™ Advance 96-Well Filter Plates for DNA Purification

Maximum Yields of High Quality DNA

  • Optimized for maximum binding yield of DNA from a variety of sample types
  • New well geometry results in reduced hold-up volume and higher recovery of DNA
  • New outlet tip geometry provides direct flow of samples into receiver plate without concerns of crosscontamination
  • Enhanced membrane ensures high yields of contaminant-free DNA for downstream applications
  • Manufactured in accordance with SBS guidelines, allowing entire DNA purification process to be performed on automated equipment
“Pall Laboratory products are designed for laboratory applications only. This product is not approved for use in medical, clinical, surgical or other patient applications. If you require further assistance in product selection for your chosen application, please contact Labcustomersupport@pall.com or call 1-800-521-1520."


* Required
Need Help?
Download Datasheet

AcroPrep Advance Filter Plates for DNA Purification

List Price
$ 209.43
List Price
$ 122.17

Spare Parts and Accessories

List Price
$ 1,286.66
Adapter collar for centrifugation (2/pkg)
List Price
$ 90.39
Cap mat for incubation (5/pkg)
List Price
$ 52.68
AcroPrep Advance multi-well plate lids (10/pkg)
List Price
$ 20.39
Adapter for PCR receiver plate (2/pkg)
List Price
$ 99.27
Description

Maximum Yields of High Quality DNA

  • Optimized for maximum binding yield of DNA from a variety of sample types
  • New well geometry results in reduced hold-up volume and higher recovery of DNA
  • New outlet tip geometry provides direct flow of samples into receiver plate without concerns of crosscontamination
  • Enhanced membrane ensures high yields of contaminant-free DNA for downstream applications
  • Manufactured in accordance with SBS guidelines, allowing entire DNA purification process to be performed on automated equipment
“Pall Laboratory products are designed for laboratory applications only. This product is not approved for use in medical, clinical, surgical or other patient applications. If you require further assistance in product selection for your chosen application, please contact Labcustomersupport@pall.com or call 1-800-521-1520."
Applications
  • Plasmid DNA purification
  • Genomic DNA purification
Specifications

Materials of Construction

  • Filter Media: DNA binding (borosilicate glass without binder) media
  • Plate Housing: Polyproylene
  • Lid: Polystyrene

Dimensions

  • Length: 12.8 cm (5.0 in.)
  • Width: 8.6 cm (3.4 in.)
  • Height With Lid: 1.8 cm (0.7 in.) (350 μL only)
  • Height Without Lid: 350 μL, 1.4 cm (0.6 in.); 1 mL: 3.3 cm (1.3 in.)

Well-Bottom Area

  • 0.25 cm2

Recommended Working Volume

  • 350 μL: < 300 μL
  • 1 mL: < 900 μL

Recommended Operating Vacuum

  • > 25.4 cm Hg (10 in. Hg)

Recommended Centrifugal Force

  • 1,500 x g

Typical Processing Time

  • Vacuum: 2 seconds
  • Centrifuge: < 2 minutes

Typical Hold-Up Volume

  • Optimized for maximum binding Vacuum: 19 μL
Performance

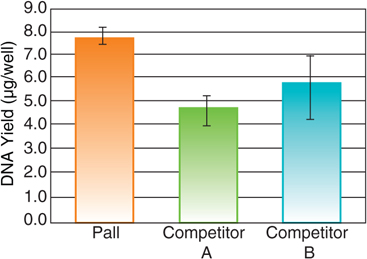

Plasmid DNA Yield Superior to Competitive Plates



pCAT plasmid DNA yield (OD260) using indicated DNA purification plates starting with 1 mL (Pall and Competitor B) or 1.5 mL (Competitor A) overnight culture DH5α. Purification using plate manufacturer’s recommended protocol using 350 μL plates. Error bars indicate standard error (n > 6).

Quality DNA Consistently Purified


  Elution Volume (µL) Recovered Volume (µL) OD260/280 Concentration (ng/µL) Total Yield (µg/well)
Pall 70 55-65 1.95 ± 0.01 131 7.7
Competitor A 50 30 1.98 ± 0.01 155 4.6
Competitor B 70 45-60 2.04 ± 0.05 108 5.6

OD260/280 of pooled purified pDNA (n > 6). High quality DNA has an OD260/280 value between 1.7-2.0.

Type
Filter Plate
Application
Plasmid DNA purification
Product Summary
Maximum yields of high quality DNA. Optimized for maximum binding yield of DNA from a variety of sample types. New well geometry results in reduced hold-up volume and higher recovery of DNA.
