Filter Plates / AcroPrep Advance 96-well Filter Plates for Ultrafiltration - 350 µL, Omega 10K MWCO (10/pkg)
AcroPrep Advance 96-well Filter Plates for Ultrafiltration - 350 µL, Omega 10K MWCO (10/pkg) product photo Primary L

Product image is a representative example for illustration purposes. Actual product may vary.

AcroPrep Advance Filter Plates for Ultrafiltration - 350 µL, Omega 10K MWCO (10/pkg)

Product ID: 8034 Need this product with different specifications

Min Order Qty: 1
$ 476.39 / PAC
Add to Quote

For any queries, please click on the below Submit a Question option.

Filter Media
Omega (modified polyethersulfone) membrane
Sample Volume
< = 3 00 μL
Height (Metric cm)
1.8 cm
Length (Metric cm)
12.8 cm
Width (Metric)
8.6 cm
MWCO Molecular weight cut-off
10 K
Plate Housing Material
Recommended Centrifugal Force
1500 g
Recommended Operating Vacuum
10 in Hg


AcroPrep Advance Filter Plates for Ultrafiltration - 350 µL with 10K Omega membrane are optimized for ultrafiltration applications, offering the rapid and efficient separation of biomolecules.

Ultrafiltration is a membrane separation technique used to separate extremely small particles and dissolved molecules in fluids. The primary basis for separation is molecular size, although other factors such as molecular shape and charge can also play a role. Molecules larger than the membrane pores will be retained at the surface of the membrane and concentrated during the ultrafiltration process. Ultrafiltration can be used in a variety of applications including size exclusion, PCR clean-up, nucleic acid purification and protein separation.

The Pall Omega membrane is a polyethersulfone membrane specifically modified to minimize protein and nucleic acid binding. The low binding nature of the membrane offers numerous benefits, including high recoveries of low concentrations of biomolecules and less surface fouling, which can cause retention performance to decay. Our Omega ultrafiltration membrane is available in AcroPrep 24, 96 and 384-well filter plates and in a number of MWCOs including 3K, 10K, 30K and 100K.

AcroPrep filter plates are constructed from chemically resistant and biologically inert polypropylene which means that the plates themselves are low in binding to nucleic acids and proteins. The polypropylene construction provides durability when using harsh organic solvents, preventing unwanted extractables and leachables.

A patented design and unique sealing mechanism is used to individually seal filter media into each well of the plate, preventing crosstalk and the possibility of cross contamination from one well to another. Optimized outlet tips minimize sample leakage during incubation steps and reduces the presence of hanging drops following filtration.

The filter plates feature a smooth well design that provides consistency in filtration times, as well as efficient sample recovery.

Pall AcroPrep filter plates are designed to meet the stringent requirements for high throughput applications and are manufactured to meet the microplate standards ANSI/SLAS 1-2004 through ANSI/SLAS 4-2004, allowing plates to be run in manual, semi-automated, and automated processes. A rigid single piece construction prevents plates from flexing or jamming in robotic systems, whilst barcode labeling allows for easy sample tracking and identification.


Materials of Construction

  • Filter Media: Omega (modified polyethersulfone) membrane
  • Plate Housing: Polyproylene
  • Lid: Polystyrene


  • Length: 12.8 cm (5.0 in.)
  • Width: 8.6 cm (3.4 in.)
  • Height With Lid: 1.8 cm (0.7 in.) (350 μL only)
  • Height Without Lid: 350 μL, 1.4 cm (0.6 in.); 1 mL: 3.3 cm (1.3 in.)

Well-Bottom Area

  • 0.25 cm2

Recommended Working Volume

  • 350 μL: < 300 μL
  • 1 mL: < 900 μL

Recommended Operating Vacuum

  • > 25.4 cm Hg (10 in. Hg)

Recommended Centrifugal Force

  • 1,500 x g

Typical Vacuum Filtration Performance

Membrane Processing Time (min) Hold-Up Volume (μL)
10K Omega 20 5
30K Omega 8 6
100K Omega 4 7

Typical Centrifugal Filtration Performance

Membrane Processing Time (min) Hold-Up Volume (μL)
3K Omega 45 2
10K Omega 8 2
30K Omega 8 2
100K Omega 5 2


  • Size exclusion
  • PCR clean-up
  • Nucleic acid purification
  • Protein separation

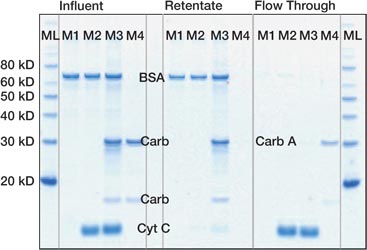

Separation of Proteins with Omega Membrane Using Vacuum Filtration

SDS-PAGE analysis of reduced samples from 30K Omega membrane plate using vacuum separation method, 5 μL/lane. 75 μL protein mix/well subjected to ~20 in. Hg vacuum for ~8 minutes. Each protein at 100 μg/mL in initial mix. ML = Marker Ladder; M1 = BSA; M2 = BSA + Cyt C; M3 = BSA, Carbonic Anydrase, and Cyto C; M4 = Carbonic Anhydrase. GelCode Blue stain.
