Nanosep® and Nanosep MF Centrifugal Devices

Simple, Reliable Concentrating and
Desalting of 50 to 500 µL Samples

  • Ensures rapid processing of samples
  • Typical recoveries are > 90%
  • Available with low proteinbinding Omega™, Bio-Inert®, and GHP membranes
  • A wide range of MWCOs, color-coded for easy identification
  • Constructed of low-binding polypropylene
  • Ultrasonically welded seals prevent bypass or seal failure
  • Fits standard centrifuge rotors that accept 1.5 mL tubes
“Pall Laboratory products are designed for laboratory applications only. This product is not approved for use in medical, clinical, surgical or other patient applications. If you require further assistance in product selection for your chosen application, please contact Labcustomersupport@pall.com or call 1-800-521-1520."


* Required
Need Help?
Download Datasheet

Nanosep MF Centrifugal Devices with Bio-Inert® Membrane

List Price
$ 68.90
List Price
$ 243.28
List Price
$ 1,043.25
List Price
$ 68.90
List Price
$ 243.28
List Price
$ 1,043.25

Nanosep MF Centrifugal Devices with GHP Membrane

List Price
$ 335.80
List Price
$ 1,143.56

Nanosep MF Centrifugal Devices with Next Generation Universal wwPTFE Membrane

List Price
$ 713.30
List Price
$ 240.70
List Price
$ 713.30

Nanosep(R) MF Centrifugal Devices with Next Generation Universal wwPTFE Membrane

List Price
$ 240.70

Nanosep® Centrifugal Devices with Omega™ Membrane

List Price
$ 93.61
List Price
$ 317.37
List Price
$ 1,332.14
List Price
$ 93.61
List Price
$ 317.39
List Price
$ 1,335.21
List Price
$ 93.61
List Price
$ 317.37
List Price
$ 1,332.14
List Price
$ 94.30
List Price
$ 317.37
List Price
$ 1,332.14
List Price
$ 94.30
List Price
$ 317.37
List Price
$ 1,332.14
Description

Simple, Reliable Concentrating and
Desalting of 50 to 500 µL Samples

  • Ensures rapid processing of samples
  • Typical recoveries are > 90%
  • Available with low proteinbinding Omega™, Bio-Inert®, and GHP membranes
  • A wide range of MWCOs, color-coded for easy identification
  • Constructed of low-binding polypropylene
  • Ultrasonically welded seals prevent bypass or seal failure
  • Fits standard centrifuge rotors that accept 1.5 mL tubes
“Pall Laboratory products are designed for laboratory applications only. This product is not approved for use in medical, clinical, surgical or other patient applications. If you require further assistance in product selection for your chosen application, please contact Labcustomersupport@pall.com or call 1-800-521-1520."
Applications
  • Concentrate, purify, and desalt oligonucleotides, DNA, RNA, and proteins
  • Clean up labeling and PCR reactions
  • Isolate DNA from agarose gel slices
  • Separate oligonucleotides and RNA from acrylamide gels
  • Concentrate PCR products regardless of size with 30K device if primer removal is required
  • wwPTFE: Available with low proteinbinding Omega™, Bio-Inert®, and GHP membranes
Specifications

Materials of Construction

  • Nanosep Devices
       Filter Media: Omega (modified polyethersulfone) ultrafiltration membrane
       Sample Reservoir, Membrane Support Base, and Filtrate Receiver: Polypropylene
  • Nanosep MF Devices
       Filter Media: Bio-Inert (modified nylon) and wwPTFE & update (hydrophilic polypropylene) to (water wettable polytetrafluoroethylene): Filter Media: Bio-Inert (modified nylon) and GHP (hydrophilic polypropylene) membranes

Effective Filtration Area

  • 0.3 cm2

Dimensions

  • Overall Length (Fully Assembled with Cap): 4.5 cm (1.8 in.)

Capacities

  • Maximum Sample Volume: 500 µL
  • Final Concentrate Volume: 15 µL
  • Filtrate Receiver Volume: 500 µL
  • Hold-up Volume (Membrane/Support): < 5 µL

Operating Temperature Range

  • 0 - 40 °C (32 - 104 °F)

pH Range

  • Nanosep Devices: 1 - 14
  • Nanosep MF Devices: 3 - 14

Maximum Centrifugal Force

  • 14,000 x g

Centrifuge

  • Fits rotors that accept 1.5 mL tubes

Sanitization

  • Provided non-sterile. May be sanitized by filtering 70% ethanol through the device prior to use.
Performance

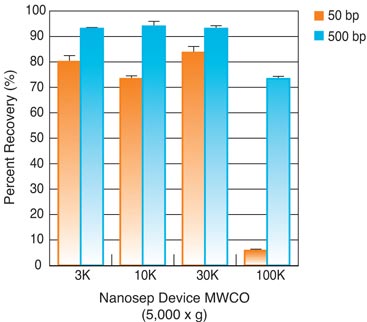

DNA Recovery as a Function of Device MWCO


Nanosep Centrifugal Device: DNA Recovery as a Function of Device MWCO

A 500 μL sample of a 100 μg/mL DNA fragment solution containing 50 and 500 bp double-stranded DNA fragments was centrifuged at 5,000 x g in Nanosep devices to a final volume of 50 μL. Recovered samples were quantitated using absorbance at 260 nm. The 100K device was able to differentiate between the sizes of the DNA fragments.

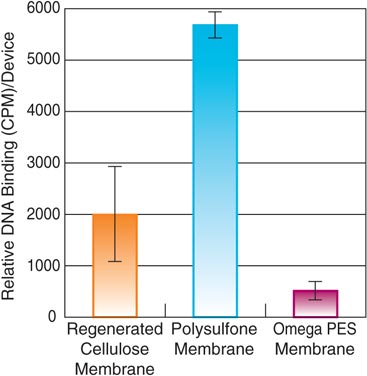

Omega™ Membrane Has the Lowest Non-Specific DNA Binding


Omega™ Membrane Has the Lowest Non-Specific DNA Binding

A 500 μL sample of a 32P-labeled PCR product (400 bp, 50 ng/mL) was centrifuged at 5,000 x g in a 100K Nanosep or competitive device. The retained DNA was recovered in 40 μL TE (10 mM Tris, 1 mM EDTA, pH 8). The remaining radioactivity in the device was counted in a scintillation counter. A value at 1000 CPM roughly corresponds to 1% of the total radioactive sample. Omega membrane has the lowest non-specific binding, resulting in highest DNA recoveries. In general, DNA molecular weights do not correspond well with the MWCO because DNA is a long linear molecule. Effective retention of DNA by an ultrafiltration membrane requires a reduction in g-force to 5,000 x g. Otherwise, DNA can be forced through many MWCO membranes regardless of size.

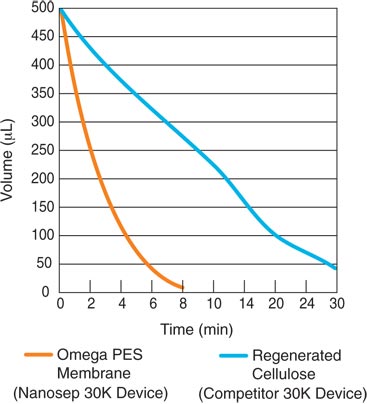

Centrifugal Device Spin Times


Nanosep Centrifugal Device Spin Times
Type
Centrifugal device
Use
Ultrafiltration, Microfiltration
Application
HPLC/UHPLC Sample Preparation
Product Summary
Use Nanosep® devices to concentrate, purify, and desalt peptides, proteins, oligonucleotides, DNA, and RNA. Available with low proteinbinding Omega™, Bio-Inert®, and wwPTFE membranes.
