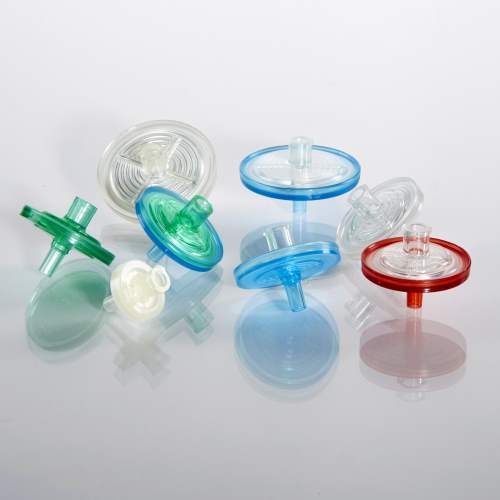

Acrodisc® Syringe Filters with Versapor® Membrane product photo Primary L

Acrodisc® Syringe Filters with Versapor® Membrane

Meet all prefiltration and clarification requirements

  • Certified non-pyrogenic and biologically safe
  • Available in a variety of diameters and pore sizes
“Pall Laboratory products are designed for laboratory applications only. This product is not approved for use in medical, clinical, surgical or other patient applications. If you require further assistance in product selection for your chosen application, please contact Labcustomersupport@pall.com or call 1-800-521-1520."


* Required
Need Help?
Download Datasheet

Acrodisc 13mm Nonsterile

List Price
$ 692.16

Acrodisc 25mm Nonsterile

List Price
$ 994.67
List Price
$ 994.67
List Price
$ 994.67
List Price
$ 1,890.02
List Price
$ 993.15

Acrodisc Syringe Filters with Versapor Membrane, Sterile

List Price
$ 185.25
List Price
$ 185.25
List Price
$ 185.25

Acrodisc® Syringe Filters with Versapor® Membrane, Non-sterile

0.45 μm, 4 mm (250/pkg, 750/cs)
List Price
$ 1,323.28
Description

Meet all prefiltration and clarification requirements

  • Certified non-pyrogenic and biologically safe
  • Available in a variety of diameters and pore sizes
“Pall Laboratory products are designed for laboratory applications only. This product is not approved for use in medical, clinical, surgical or other patient applications. If you require further assistance in product selection for your chosen application, please contact Labcustomersupport@pall.com or call 1-800-521-1520."
Applications
  • Useful for prefiltration of particulate-laden samples, serum filtration, and dissolution testing.
  • Protects instrumentation against particulate build up.
Pall Laboratory products are designed for laboratory applications only. This product is not approved for use in medical, clinical, surgical or other patient applications. If you require further assistance in product selection for your chosen application, please contact Labcustomersupport@pall.com or call 1-800-521-1520.
Specifications

Materials of Construction

Filter Media: Versapor membrane (acrylic copolymer on a non-woven support)
50 mm Prefilter Media: Binder-free borosilicate glass fiber
4, 13, and 50 mm (PN 4572) Housing: Polypropylene
25 mm and 50 mm (PN 4276) Housing: Modified acrylic

Effective Filtration Area

4 mm: 0.3 cm2
13 mm: 1.0 cm2
25 mm: 2.8 cm2
50 mm: 19.6 cm2

Inlet/Outlet Connections

4, 13, and 25 mm: Female luer-lok inlet, male slip luer outlet
50 mm: 10.4 - 12.7 (1/4 - 1/2 in.) stepped hose barb

Typical Hold-up Volume(with air purge)

4 mm: < 7.5 µL
13 mm: < 28 µL
25 mm: < 50 µL
50 mm: < 2 mL

Maximum Operating Temperature

4, 13, and 25 mm: 55 °C (131 °F)
50 mm: 82 °C (180 °F)

Maximum Operating Pressure

4, 13, and 25 mm: 5.2 bar (520 kPa, 75 psi)
50 mm: 4.1 bar (410 kPa, 60 psi)

Typical Water Flow Rate

mL/min at 3.1 bar (310 kPa, 45 psi)
0.45 µm, 4 mm: 3
0.8 µm, 13 mm: 180
0.45 µm, 25 mm: 225
0.8 µm, 25 mm: 600
1.2 µm, 25 mm: 660
5 µm, 25 mm: 970
mL/min at 1.0 bar (100 kPa, 15 psi)
5 µm, 50 mm: 1700

Endotoxin Level

<0.25 EU/mL using Limulus Amoebocyte Lysate (LAL) test

Biological Safety

Passes United States Pharmacopeia (USP) Biological Reactivity Test, In Vivo<88>

Sterilization

PN 4188, 4190, 4199, 4276 sterilized by gamma irradiation and individually blister packaged.
Performance
Non-sterile Acrodisc Syringe Filters: Instructions for use
Type
Syringe Filter
Use
Microfiltration
Application
Clarification and Prefiltration
Segment
Sterile Filtration and Clarification
