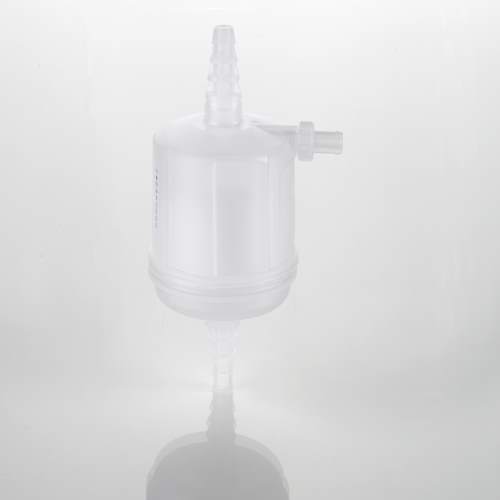

AcroPak™ 300 Capsule with PTFE Membrane product photo Primary L

AcroPak™ 300 Capsule with PTFE Membrane

High Air Flow Rate Venting Applications

  • Offers broad chemical compatibility with PTFE membrane and polypropylene housing
  • 100% integrity-tested to provide the high level of confidence you require
“Pall Laboratory products are designed for laboratory applications only. This product is not approved for use in medical, clinical, surgical or other patient applications. If you require further assistance in product selection for your chosen application, please email us a question or call 1-800-521-1520."
Read More


* Required
Need Help?
Download Datasheet
Download

AcroPak 300 Capsule with PTFE Membrane

CAPSULE, AcroPak 300 0.2UM PTFE 3/PK
Stocked: 201 available. Need more information? Check additional availability.
List Price
$ 193.00
Check Availability
CAPSULE, AcroPak 300 0.2UM PTFE 100/PK
Stocked: 5 available. Need more information? Check additional availability.
List Price
$ 6,154.00
Check Availability
Description

High Air Flow Rate Venting Applications

  • Offers broad chemical compatibility with PTFE membrane and polypropylene housing
  • 100% integrity-tested to provide the high level of confidence you require
“Pall Laboratory products are designed for laboratory applications only. This product is not approved for use in medical, clinical, surgical or other patient applications. If you require further assistance in product selection for your chosen application, please email us a question or call 1-800-521-1520."
Applications
  • Recommended for bioreactor venting requiring high air flow rates
  • Useful device for chemical and solvent filtration
Specifications

Materials of Construction

  • Filter Media: PTFE on a polypropylene support
  • Housing: Polypropylene

Effective Filtration Area

  • 280 cm2

Dimensions

  • Length: 10.5 cm (4.1 in.) with hose barbs
  • Housing Diameter With Vent: 6.7 cm (2.6 in.)
  • Housing Diameter Without Vent: 5.3 cm (2.1 in.)

Inlet/Outlet Connections

  • Stepped hose barbs 6.4 - 12.7 mm (1/4 - 1/2 in.) diameter

Typical Hold-Up Volume

  • < 6 mL

Maximum Operating Temperature

  • 60 °C (140 °F) at 2.1 bar (210 kPa, 30 psi)

Maximum Operating Pressure

  • 4.1 bar (410 kPa, 60 psi) at ambient temperature

Recommended Integrity Test Minimum Bubble Point - 60% IPA/40% H2O (v:v)

  • 1.2 bar (120 kPa, 18 psi)

Typical Liquid Flow Rate (1 cp)

  • 0.8 L/min/0.1 bar (10 kPa) 0.6 L/min/psi

Typical Air Flow Rate

  • 32 L/min/0.07 bar (7 kPa, 1 psi)

Bacterial Retention

  • Lot samples retain a minimum of 107 cfu/cm2 of B. diminuta per modified ASTM F838, current revision

Endotoxin Level

  • < 0.25 EU/mL using Limulus Amoebocyte Lysate (LAL) test

Biological Safety

  • Passes United States Pharmacopeia (USP) Biological Reactivity Test, In Vivo <88>

Sterilization

  • Provided non-sterile. Can withstand 10 autoclave cycles at 121 - 123 °C (250 - 253 °F) for a maximum of 20 min. Integrity should be verified after each autoclave cycle and before use.
Type
Filter Capsules
Application
In-line Vents
