Disposable Shower Head Filter (Reorder Code: AQF4, AQF42) – 31 Day Use
The Pall-Aquasafe Disposable Shower Head Filter (Reorder Code: AQF4, AQF42) provides filtered water for topical applications such as wound care*, personal hygiene, for consumption and the preparation of cold drinks and food*, and for rinsing of medical instruments for up to 31 days. The double layer sterilising grade Supor® membrane is rated and validated at 0.2 μm1,2 and provides protection to patients and vulnerable users by acting as a barrier to waterborne particulates and pathogens such as Legionella spp. and Pseudomonasspp.
To minimise the risk of inadvertent cross-contamination and retrograde contamination, the filter housing material utilises silver technology as an enhanced, non-leaching bacteriostatic additive.* Where local practices and regulations allow.
|Protective barrier against waterborne contaminants including Pseudomonas spp.1||Reduces the risk of water associated nosocomial infection|
|Validated double layer sterilizing grade filtration with integral pre-filter||Documented performance, validated according to international requirements|
|Enhanced bacteriostatic efficiency of 99.99 % for Pseudomonas aeruginosa||Bacteriostatic additive throughout housing material, minimises risk of inadvertent cross-contamination and retrograde contamination|
|Increased longevity||Cost effective protection, easier logistics, reduced waste|
|Fully recyclable materials||Environmentally friendly|
|Water saving quick connect adaptor option||Cost saving|
|Compatible with common systemic heat and chemical disinfection||Complementary to sanitisation programs|
|Pall-Aquasafe Disposable Water Filter (AQF4, AQF42)||CE Marked Medical Device|
|Membrane area||Approx. 1020 cm2|
|Membrane rating||Sterilizing grade** membrane 0.2 μm Supor® with integrated pre-filtration layer (approx 1.0 µm)|
|Length (excluding quick connect adaptor)||Approx. 240 mm|
|Maximum upstream operating pressure||5 bar (500 kPa) @ 60 °C|
|Normal upstream operating pressure||2 - 4 bar (200 - 400 kPa)|
|Maximum continuous operating temperature||60 °C|
|Maximum temperature exposure||70 °C for a total cumulative period of 30 mins over the life of the filter|
|Maximum lifetime||31 days|
The Pall-Aquasafe Disposable Water Filter (AQF4, AQF42) is compatible with:
Chlorine Dioxide: up to 1.0 mg/L ClO2 (1 ppm) over indicated life.
Active Chlorine: 100 ppm active chlorine for 1 hour at 20 ºC +/- 5 ºC.
Continuous Treatment with Active Chlorine Followed by Shock Treatment: < 7 ppm active chlorine at 30 ºC over indicated life followed by shock treatment with 100 ppm active chlorine solution for 1 hour at 30 ºC.
pH: pH of 12.82 for 1 hour at 20 ºC +/- 5 ºC.
Peracetic Acid: 1000 ppm peracetic acid at 60 ºC for 2 hours. ** Pall-Aquasafe Disposable Water Filters are not to be used for producing waterfor infusion or injection.
|AQF4||Pall-Aquasafe Disposable Shower Head Filter||12 units per case|
|AQF42||Pall-Aquasafe Disposable Shower Head Filter||2 units per case|

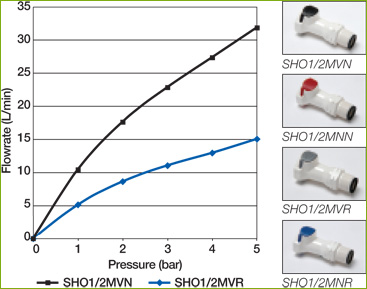

|Quick Connect Adaptors|
|SHO1/2MVR||With valve, with restrictor for higher† water pressures||1 unit|
|SHO1/2MNR||Without valve, with restrictor for higher† water pressures||1 unit|
|SHO1/2MVN||With valve, without restrictor for lower water pressures||1 unit|
|SHO1/2MNN||Without valve, without restrictor for lower water pressures||1 unit|
† As a guide, use of a restricted connector adaptor with water pressures above 3 bar may be advisable.
