Gaskleen® Pico1000 Analyzer product photo Primary L

Gaskleen® Pico1000 Analyzer

The Gaskleen Pico1000 analyzer measures trace moisture in nitrogen and argon process gas streams, with a limit of detection of 300 part per trillion (pptv). The system is ideally suited for qualifying and certifying ultrahigh purity process gases, as well as detecting purifier end-of-life. Its robust, compact design is readily portable, allowing users to easily move it around a facility for quick checks of process gas quality or troubleshooting moisture excursions. The Pico1000 consumes up to 70% less process gas, compared to competitive analyzers.

Operation

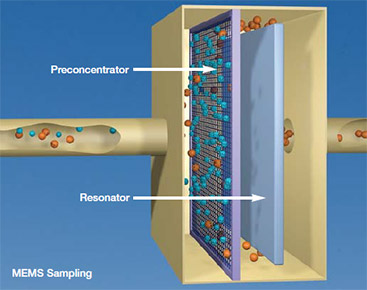

The analyzer uses a microelectromechanical system (MEMS) to gravimetrically measure the moisture concentration. Sample process gas flows through a mass flow controller to the preconcentrator MEMS where the moisture is trapped with a proprietary coating throughout the sample period. When the sampling is complete the preconcentrator heats in milliseconds vaporizing the collected moisture.

Co-packaged with the preconcentrator is a MEMS resonator vibrating in the MHz frequency range. This resonator is functionalized with another proprietary chemoselective coating to enhance absorption and desorption of the moisture from the preconcentrator. This proprietary design allows the resonator to quickly capture and measure the mass of moisture absorbed on the resonator.

The resonator is vibrating continuously during the measurement cycle. The preconcentrator vaporizes the moisture and the resonator frequency shift (ΔHz) occurs, which is detected and transformed into an electrical signal that is directly proportional to the mass of that moisture.

Sample collection is performed continuously, except during preconcentrator heating and resonator measurement, which only takes a few seconds. The Pico1000 is a near-real-time analyzer with continuous collection and batch measurement.

Features

  • USB data extraction port
  • Novel 21st century MEMS technology
  • 300 pptv Lower Detection Limit
  • Rugged, light weight and versatile design
  • Built-in diagnostics
  • Consumes 70% less gas than traditional systems

Benefits

  • Extract csv data to a USB in seconds
  • Easy “Plug and Play” installation and operation
  • 900 pptv Limit of Quantitation
  • Fast response time
  • Designed for Mobility
  • Purifier prequalification and end of life detection
  • Low cost of ownership


* Required
Need Help?
Download Datasheet
Description

The Gaskleen Pico1000 analyzer measures trace moisture in nitrogen and argon process gas streams, with a limit of detection of 300 part per trillion (pptv). The system is ideally suited for qualifying and certifying ultrahigh purity process gases, as well as detecting purifier end-of-life. Its robust, compact design is readily portable, allowing users to easily move it around a facility for quick checks of process gas quality or troubleshooting moisture excursions. The Pico1000 consumes up to 70% less process gas, compared to competitive analyzers.

Operation

The analyzer uses a microelectromechanical system (MEMS) to gravimetrically measure the moisture concentration. Sample process gas flows through a mass flow controller to the preconcentrator MEMS where the moisture is trapped with a proprietary coating throughout the sample period. When the sampling is complete the preconcentrator heats in milliseconds vaporizing the collected moisture.

Co-packaged with the preconcentrator is a MEMS resonator vibrating in the MHz frequency range. This resonator is functionalized with another proprietary chemoselective coating to enhance absorption and desorption of the moisture from the preconcentrator. This proprietary design allows the resonator to quickly capture and measure the mass of moisture absorbed on the resonator.

The resonator is vibrating continuously during the measurement cycle. The preconcentrator vaporizes the moisture and the resonator frequency shift (ΔHz) occurs, which is detected and transformed into an electrical signal that is directly proportional to the mass of that moisture.

Sample collection is performed continuously, except during preconcentrator heating and resonator measurement, which only takes a few seconds. The Pico1000 is a near-real-time analyzer with continuous collection and batch measurement.

Features

  • USB data extraction port
  • Novel 21st century MEMS technology
  • 300 pptv Lower Detection Limit
  • Rugged, light weight and versatile design
  • Built-in diagnostics
  • Consumes 70% less gas than traditional systems

Benefits

  • Extract csv data to a USB in seconds
  • Easy “Plug and Play” installation and operation
  • 900 pptv Limit of Quantitation
  • Fast response time
  • Designed for Mobility
  • Purifier prequalification and end of life detection
  • Low cost of ownership
Specifications

Specifications (Part Number: 3005105)


Performance
Measurement Range 0 to 3 ppmv
Accuracy: 0.3-200 ppbv
201-3,000 ppbv
± 300 pptv or 10 % of reading whichever is greater
± 20 % of reading
Precision ± 5 % of reading across the full measurement range
Sample Time 10 min (0 – 50 ppbv), nominal
2.5 min (50 - 200 ppbv), nominal
30 sec (200 ppbv - 3 ppmv), nominal



Representative Performance (non-quality control parameter)
Lower Detection Limit (LDL) 300 pptv (3σ at 8 ppbv, nominal)
Sensitivity 100 pptv
Speed of Response 1.6 to 2.3 ppmv / 2.3 to 1.6 ppmv, nominal: T-10 = 8 min, T-90 = 9 min
8 to 12 ppbv / 12 to 8 ppbv, nominal: T-10 = 24 min, T-90 = 79 min



Design Parameters
Measurement Method Gravimetric MEMS Resonator
Analyte H2O
Size and Weight (nominal) 44.6 cm W x 28.8 cm D x 17.6 cm H (17.6 inch W x 11.3 inch D x 6.9 inch H)
11.4 kg (25 lbs) - system only
67 cm W x 50 cm D x 29.7 cm H (24.6 inch W x 19.7 inch D x 11.7 inch H) case
20.4 kg (45 lbs) - case and system
Gas Inlet Connection 1/4 inch gasket seal (VCR1 or compatible)
Gas Outlet Connection 1/4 inch male compression fitting (Swagelok2 or compatible)
Wetted Components < 0.25 μm / 10 μinch Ra internal surface finish (except for MFC with
< 0.41 μm / 16 μinch Ra internal surface finish)
Helium Leak Test < 2 X 10-8 mbar•liter per second
Shipping / Storage Temperature -30°C (-22°F) to 80°C (176°F)
Mounting Configuration 483 mm rack-mountable component or desktop
Equipment Ratings IEC Installation Category II, VDC Pollution Degree 2
Authorizations CSA, UL, CE, WEEE, ISTA 1A
U. S. Patents # US 6,511,915; US 6,627,965; US 6,953,977



Operating Conditions
Gas Compatibility Nitrogen, Argon (contact Pall for additional gases)
Sample Temperature 5°C (41°F) to 30°C (86°F)
Sample Flow Rate 280 sccm (nominal) ± 1%
Environmental Conditions 0°C (32°F) to 30°C (86°F); Max. 80% RH non-condensing environment
Inlet Pressure 69 kPa (10 psig) to 310 kPa (45 psig)
Exhaust Pressure 101 ± 7 kPa absolute pressure (14.7 ± 1 psia); If > 500 m (1640 ft.) in elevation consult with Pall



Electrical
Power Requirements 100-240 VAC 50/60 Hz, supply voltage fluctuations not to exceed ± 10% of nominal supply voltage (indoor use only)
Power Consumption 60 W average with a nominal 90 W peak start-up draw
Inputs / Outputs (analog/digital) 4 - 20 mA (isolated), requires external voltage source, 12 ... 36 VDC
0 - 5 VDC (isolated), load requirements: RL > 2 kΩ, 0 pF < CL < 200 pF
2 USB 1.1
7” LCD Touch screen
Output by USB downloadable csv data file, or analog signal
RS232 serial port (factory service diagnostic communication only)
Alarms 4 user programmable Form C relays


1 VCR is a trademark of the Swagelok Co.
2 Swagelok is a trademark of Swagelok Co.

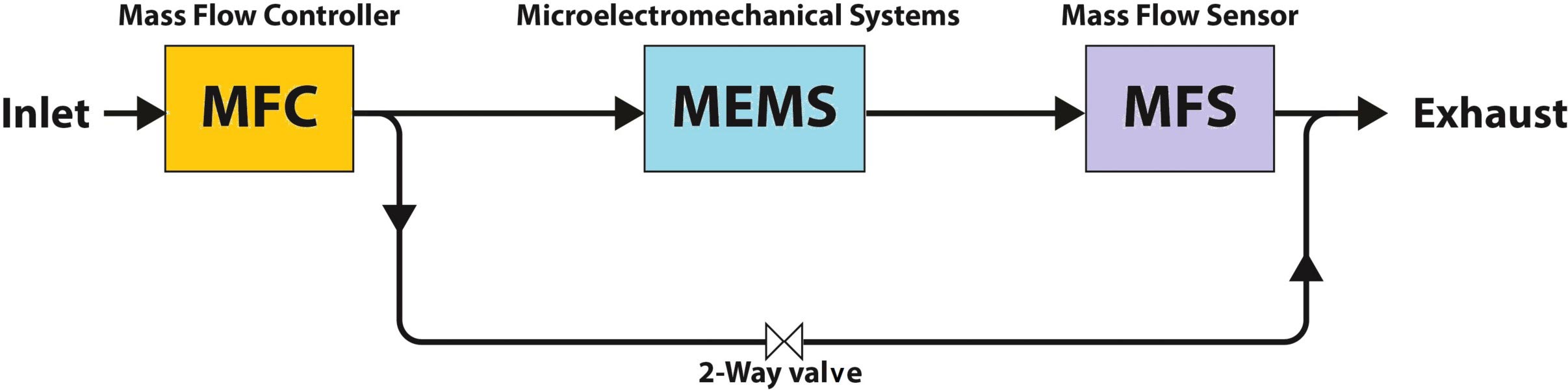

Flow Diagram

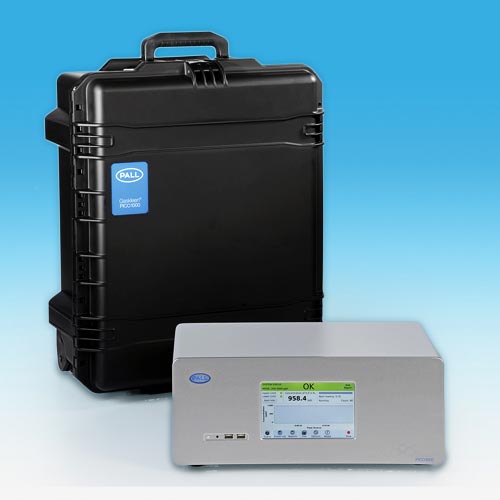

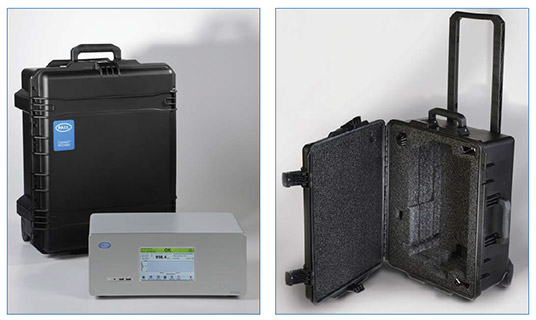

Mobile Case Included




Type
Instruments, Systems
Use
Purification
Ordering Information

Part Number Description
3005105 Gaskleen Pico1000 Moisture Analyzer For N2 and AR

Application
Trace moisture detection, Trace moisture detection, Trace moisture detection
Segment
LED
Photovoltaics
Semiconductor
