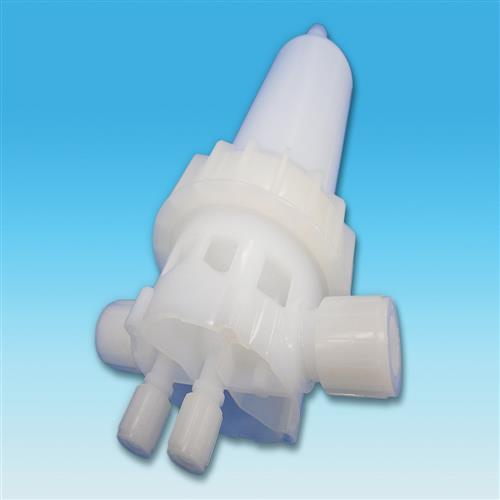

Megaplast™ G2 CD Filter Housing

The centrally located Drain/Vent port on the Megaplast CD housing head provides for efficient and rapid drainage when mounted with the bowl up, and efficient venting when mounted in the bowl down position.

The Megaplast CD has the same head mounting position design and dimensions as the Pall FlexBowl Housing. The comparable flat head design allows for more equipment design installation options.

The housings are designed to meet the stringent cleanliness requirements of ultrapure applications by using high purity PFA for all wetted components.

The Megaplast G2 CD housings are available in 102 mm, (4 in), 254 mm, (10 in), and 508 mm, (20 in) sizes. The 254 mm, (10 in) housing is designed to fit standard filter cartridges with a diameter of up to 82.5 mm, (3.25 in).

A selection of standard semiconductor industry inlet and outlet connection fittings are offered in different sizes and styles.

Features

  • Optimized drainage and venting designs
  • High-purity design
  • Metal-free construction
  • High temperature capability
  • Closure nut is free floating


* Required
Need Help?
Download Datasheet
Description

The centrally located Drain/Vent port on the Megaplast CD housing head provides for efficient and rapid drainage when mounted with the bowl up, and efficient venting when mounted in the bowl down position.

The Megaplast CD has the same head mounting position design and dimensions as the Pall FlexBowl Housing. The comparable flat head design allows for more equipment design installation options.

The housings are designed to meet the stringent cleanliness requirements of ultrapure applications by using high purity PFA for all wetted components.

The Megaplast G2 CD housings are available in 102 mm, (4 in), 254 mm, (10 in), and 508 mm, (20 in) sizes. The 254 mm, (10 in) housing is designed to fit standard filter cartridges with a diameter of up to 82.5 mm, (3.25 in).

A selection of standard semiconductor industry inlet and outlet connection fittings are offered in different sizes and styles.

Features

  • Optimized drainage and venting designs
  • High-purity design
  • Metal-free construction
  • High temperature capability
  • Closure nut is free floating
Specifications

Materials of Construction


Components Materials
Bowl High-purity PFA
Head High-purity PFA
Closure nut PVDF
O-ring1, 2 PFA encapsulated fluorocarbon elastomer


1 All fluoropolymer materials made without PFOA.
2 Other O-ring options available.



Configuration T-flow
Maximum Operating Temperature 95 ̊C / 203 ̊F
Maximum Operating Pressure of Housing 0.56 MPaG < 30 ̊C / 80 psig @ 86 ̊F
0.38 MPaG < 60 ̊C / 55 psig @ 140 ̊F
0.28 MPaG < 95 ̊C / 40 psig @ 200 ̊F

Type
Filter Housing
Use
Filtration
Additional Information

Dimensions

Megaplast G2 CD Filter Housing Dimension Megaplast G2 CD Filter Housing Dimension



Part number L1 L2 W
PFCD1F128SPH1B 64.5 mm
(2.54 in)
388 mm
(15.3 in)
218.9 mm
(8.62 in)
PFCD1F168SPH1B 64.5 mm
(2.54 in)
388 mm
(15.3 in)
223.8 mm
(8.81 in)
PFCD1F128FLH1B 66 mm
(2.60 in)
366.3 mm
(14.42 in)
191.3 mm
(7.53 in)
PFCD1F168FLH1B 67.3 mm
(2.65 in)
366.3 mm
(14.42 in)
214.6 mm
(8.45 in)
PFCD1F128BWH1B 59.7 mm
(2.35 in)
357.3 mm
(14.07 in)
198.4 mm
(7.81 in)
PFCD1F168BWH1B 59.7 mm
(2.35 in)
357.3 mm
(14.07 in)
198.4 mm
(7.81 in)



Pressure Drop vs. Liquid Flow Rate (Water, 20°C)5

Megaplast G2 CD Filter Flow Rate

5 For liquids with viscosity differing from water, multiply the pressure drop by the viscosity in centipoise.

Ordering Information

PFCD [1] [2] [3] [4] [5]

Table 1


Code Filter length
04 4 in
1 10 in
2 20 in


Table 2


Code Closure nut materials
F PVDF
P PTFE


Table 3


Code In / Out Vent / Drain
128 3/4 in 1/2 in
168 1 in 1/2 in


Table 4


Code Connections
BW Butt Weld
FL Flare style
SP Pillar Super 300 P series


Table 5


Code O-ring
H1B PFA encapsulated fluorocarbon elastomer
H11F Kalrez6 7075



6 Kalrez is a trademark of Dupont

* Part numbers are not available with every option. (Refer to codes for options.)

  Contact your local Pall representative for option availability.

* SPANNER WRENCH PART NUMBER : ACS0655AAHD

Segment
Semiconductor
