Seitz® K Series Depth Filter Sheets

High-throughput filtering capabilities and a long service life

Looking for depth filter media with unrivaled dirt removal capacities? The Seitz K Series Depth Filter Sheets provide long-lasting and high-throughput filtration you can count on time and time again. The Seitz K Filter Sheets meet the highest quality standards you've been looking for, from the selection and quality control of raw materials to applying the latest production technologies. Available in multiple grades, the homogenous and consistent media is suitable for microbial reduction and applications requiring fine, clarifying, and coarse filtration grades.

  • Includes a combination of surface, depth, and adsorptive filtration: high solids, very good permeability, excellent filtrate quality
  • Each individual filter sheet is laser etched with the sheet grade, batch number and production date for full traceability

Product images are a representation of product family for illustration purposes only. Actual products may vary.

Seitz® K Series Depth Filter Sheets, for Fine Filtration, SEITZ-EK 1 400x400

Product ID: B07569
Unit of Measure
1/EA
Min Order Qty
1
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Hot Water Sanitization
90 °C
Recommended max.dp
1.5 bar
Size (Imperial)
400 mm x 400 mm
Size (Metric)
15.8" x 15.8
Steam Sterilization
125 °C
See All Attributes

Seitz® K Series Depth Filter Sheets, for Microorganism Reduction, KS 50 400x400

Product ID: B07571
Unit of Measure
100/EA
Min Order Qty
100
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Hot Water Sanitization
90 °C
Recommended max.dp
1.5 bar
Size (Imperial)
400 mm x 400 mm
Size (Metric)
15.8" x 15.8
Steam Sterilization
125 °C
See All Attributes

Seitz® K Series Depth Filter Sheets, for Microorganism Reduction, SEITZ-EK 400x400

Product ID: B07570
Unit of Measure
100/EA
Min Order Qty
100
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Hot Water Sanitization
90 °C
Recommended max.dp
1.5 bar
Size (Imperial)
400 mm x 400 mm
Size (Metric)
15.8" x 15.8
Steam Sterilization
125 °C
See All Attributes

Seitz® K Series Depth Filter Sheets, for Microorganism Reduction, SEITZ-EKS 200x200

Product ID: B08456
Unit of Measure
400/EA
Min Order Qty
400
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Hot Water Sanitization
90 °C
Recommended max.dp
1.5 bar
Size (Imperial)
7.87'' x 7.87'
Size (Metric)
200 x 200 mm
Steam Sterilization
125 °C
See All Attributes
$ 2.36

Seitz® K Series Depth Filter Sheets, for Particle Removal , K 700 400x400

Product ID: B08390
Unit of Measure
100/EA
Min Order Qty
100
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Hot Water Sanitization
90 °C
Recommended max.dp
3 bar
Size (Imperial)
400 mm x 400 mm
Size (Metric)
15.8" x 15.8
Steam Sterilization
125 °C
See All Attributes

Seitz® K Series Depth Filter Sheets, for Particle Removal, K 800 400x400

Product ID: B08742
Unit of Measure
1/EA
Min Order Qty
1
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Hot Water Sanitization
90 °C
Recommended max.dp
3 bar
Size (Imperial)
400 mm x 400 mm
Size (Metric)
15.8" x 15.8
Steam Sterilization
125 °C
See All Attributes

Seitz® K Series Depth Filter Sheets, for Particle Removal, K 900 400x400

Product ID: B08744
Unit of Measure
100/EA
Min Order Qty
100
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Hot Water Sanitization
90 °C
Recommended max.dp
3 bar
Size (Imperial)
400 mm x 400 mm
Size (Metric)
15.8" x 15.8
Steam Sterilization
125 °C
See All Attributes

Seitz® K Series Depth Filter Sheets, for Polish Filtration, K 300 400x400

Product ID: B01105
Unit of Measure
100/EA
Min Order Qty
100
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Hot Water Sanitization
90 °C
Recommended max.dp
3 bar
Size (Imperial)
400 mm x 400 mm
Size (Metric)
15.8" x 15.8
Steam Sterilization
125 °C
See All Attributes

Seitz® K Series Depth Filter Sheets, for Polish Filtration, K 300 600x612

Product ID: B01092
Unit of Measure
1/EA
Min Order Qty
50
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Hot Water Sanitization
90 °C
Recommended max.dp
3 bar
Size (Imperial)
600 mm x 612 mm
Size (Metric)
23.6" x 24.1
Steam Sterilization
125 °C
See All Attributes

Seitz® K Series Depth Filter Sheets, for Polishing Filtration, K 100 400x400

Product ID: B07573
Unit of Measure
100/EA
Min Order Qty
100
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Hot Water Sanitization
90 °C
Recommended max.dp
3 bar
Size (Imperial)
400 mm x 400 mm
Size (Metric)
15.8" x 15.8
Steam Sterilization
125 °C
See All Attributes
Seitz® K Series Depth Filter Sheets, for Polishing Filtration, K 100 600x612 product photo

Seitz® K Series Depth Filter Sheets, for Polishing Filtration, K 100 600x612

Product ID: B07567
Unit of Measure
1/EA
Min Order Qty
50
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Hot Water Sanitization
90 °C
Recommended max.dp
3 bar
Size (Imperial)
600 mm x 612 mm
Size (Metric)
23.6" x 24.1
Steam Sterilization
125 °C
See All Attributes
$ 3.40

Seitz® K Series Depth Filter Sheets, for Polishing Filtration, K 150 400x400

Product ID: B07574
Unit of Measure
100/EA
Min Order Qty
100
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Hot Water Sanitization
90 °C
Recommended max.dp
3 bar
Size (Imperial)
400 mm x 400 mm
Size (Metric)
15.8" x 15.8
Steam Sterilization
125 °C
See All Attributes

Documents

Datasheet

  • Seitz K Series Depth Filter Sheets

    Select Language :

Instructions for Use

  • Seitz Sheets: Instructions

    Select Language :

Applications

  • Seitz EKS, Seitz EK 1, Seitz EK, Seitz KS 50, Seitz KS 80

Microorganism reduction and yeast removal in wine, final filtration of juice and juice concentrate, microorganism reduction in sugar syrups and microorganism reduction in enzyme solutions



  • Seitz K 100, Seitz K 150, Seitz K 200, Seitz K 250, Seitz K 300

Polishing of wine, prefiltration of juice prior to final membrane filtration and haze removal in apple juice



  • Seitz K 700, Seitz K 800, Seitz K 900

Wine clarification, particle removal from fruit juice and tea-based drinks, prefiltration of juice concentrate, olive oil polishing, enzyme solution and sweetener clarification

Specifications

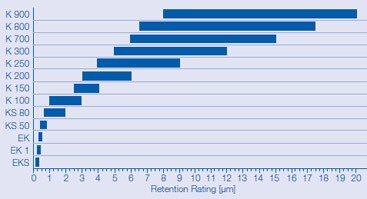

Relative Retention Rating1

1Measured under laboratory test conditions. Removal performance of filter sheets is nominal and dependent on process conditions. There is no standardized method among manufacturers for its characterization.



Food Contact Compliance

  • Please refer to the Pall website for a Declaration of Compliance to specific National Legislation and/or Regional Regulatory requirements for food contact use.



Main Constituents

Cellulose, diatomaceous earth (DE, Kieselguhr), perlite



Characterization:

Grade

Mass per

Unit Area

g/m2

Thickness

mm

Ash

%

Water

Permeability2

L/m2/min

(gal/ft2/min)

EKS 1400 3.7 58 29 (0.7)
EK 1 1450 3.8 51 41 (1)
EK 1400 3.8 46 68 (1.7)
KS 50 1350 3.7 46 93 (2.3)
KS 80 1350 3.7 46 113 (2.8)
K 100 1350 3.7 46 146 (3.6)
K 150 1350 3.9 46 185 (4.6)
K 200 1350 3.9 46 213 (5.2)
K 250 1250 4 46 510 (12.5)
K 300 1250 4.2 46 785 (19.3)
K 700 1250 4.1 46 925 (22.8)
K 800 1250 4.1 46 1275 (31.4)
K 900 1200 4.3 46 1700 (41.8)

These figures have been determined in accordance with in-house test methods and the methods of the Technical / Analytical Work Group within the European Depth Filtration Association.



2The permeability was measured under test conditions with clean water at 20 °C (68 °F) and a Δp of 1 bar (14.5 psi).



Regeneration

Seitz K series filter sheets may be rinsed with clean water (in the forward or reverse direction3) to increase throughput and optimize economic efficiency. Optimal regeneration of filter sheets installed in a plate and frame filter may be achieved with serial rinses of warm water followed by hot water. An example protocol is shown below.



  1. Rinse with warm water 60 °C (140 °F) for 15 minutes
  2. Rinse with hot water 70 – 80 °C (158 – 176 °F) for 8 – 10 minutes



The rinse flow rate should be equivalent to the filtration flow rate with a back pressure of 0.5 –1 bar (7.2 –14.5 psi).



3When rinsing in the reverse flow direction, it is critical to control particulate and microbial levels in the rinse water so that the sheet's filtrate side is not contaminated. Water used for reverse flow flushes should be particle-free, and if the filter will not be sterilized prior to re-use the water should be free of microbes. Backwashing should be in a diagonal direction from outlet to inlet in a plate and frame filter.



Sterilization and Sanitation

Method Temperature °C (°F) Maximum Differential Pressure bar (psi) Time4/Cycle min
Steam 125 (257) 0.5 (7.2) 20
Hot Water 90 (194) 1 (14.5) 30

4The actual time required may vary as a function of the process conditions.



Filtration Guidelines5

For achieving optimal filtrate quality, the following flow velocities and differential pressures should not be exceeded:

Grade Description

Flow Velocity

L / m2/h

(gal/ft2/ h)

Maximum

Differential

Pressure-bar (psi)

EKS, EK 1, EK, KS 50, KS 80 Fine Filtration 525 (12.9) 1.5 (21.8)
K 100, K 150, K 200, K 250, K 300 Polishing Filtration 850 (20.9) 3 (43.5)
K 700, K 800, K 900 Coarse Filtration 850 (20.9) 3 (43.5)

5Please contact Pall for recommendations on your specific filtration process as results may vary by product, pre-filtration and filtration conditions.



For additional operating guidelines, including rinsing of sheets prior to use, please refer to instructions provided by Pall.



Quality

  • Seitz Filter Sheets are produced in a controlled environment
  • Manufactured according to ISO 9001:2015 certified Quality Management System
