Seitz® T Series Depth Filter Sheets

For general filtration applications

The Seitz T Series Depth Filter Sheets were developed for coarse and clarifying filtration of many fluids in the food and beverage industry.  The reduced density and high porosity media make this media suitable for filtration of viscous materials, retaining gel particles, or coarse dispersed substances at low differential pressures. Available in multiple formats.

From the selection and quality control of raw materials to the application of the latest production technologies, the T Series Filter Sheets meet the highest quality standards:

  • Homogenous and consistent media offer proven and reliable performance
  • An economic filtration with high particle holding capacity resulting in long filtration cycles and high throughputs
  • Each individual filter sheet is laser etched with the sheet grade, batch number and production date for full traceability
Seitz® T Series Depth Filter Sheets

Product images are a representation of product family for illustration purposes only. Actual products may vary.

Seitz® T Series Depth Filter Sheets, for Clarification and Particle removal in the food and beverage industry, T 2600 400x400 in cartons

Product ID: 1426045
Unit of Measure
100/EA
Min Order Qty
100
Filter Media
Cellulose
Hot Water Sanitization
90 °C
Size (Imperial)
15.8" x 15.8
Size (Metric)
400 mm x 400 mm
Steam Sterilization
125 °C
Food Contact Compliant
Yes
See All Attributes
Check Availability
Request a Quote
$ 1.82
1 Item
  • 1

Documents

Datasheet

  • Seitz T Series Depth Filter Sheets

    Select Language :
    English

Instructions for Use

  • Seitz Sheets: Instructions

    Select Language :
    English

Applications

  • Seitz T 120, Seitz T 500, Seitz T 750; Seitz T 950

Coarse filtration of rennet, coarse clarification of rapeseed and wheat germ oil and clarifying filtration of sugar syrup



  • Seitz T 1000, Seitz T 1500, Seitz T 2100, Seitz T 3500

Coarse filtration of natural extracts, coarse filtration of sugar syrup and coarse filtration of honey and edible oils



  • Seitz T 2600, Seitz T 5500

Sugar syrup clarification, barrel charr and particle removal in spirits and clarification of enzyme solutions

Specifications

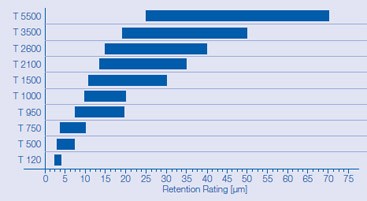

Relative Retention Rating

1 Effective removal performance of filter sheets is dependent on process conditions.



Food Contact Compliance

Please refer to the Pall website for a Declaration of Compliance to specific National Legislation and/or Regional Regulatory requirements for food contact use.



Main Constituents

  • Seitz T 120, Seitz T 500, Seitz T 750; Seitz T 950, Seitz T 1000, Seitz T 1500, Seitz T 2100, Seitz T 3500:  cellulose, perlite
  • Seitz T 2600, Seitz T 5500: cellulose



Characterization

Grade Mass per Unit Area g/m2 Thickness mm Ash % Water Permeability2 L/m2/min (gal/ft2/min)
T 120 900 2.8 43 213 (5.3)
T 500 850 2.7 38 465 (11.6)
T 750 850 2.7 40 565 (14.1)
T 950 850 2.8 40 1,700 (42.5)
T 1000 950 3.6 35 3,400 (85)
T 1500 850 3.7 33 7,285 (182.1)
T 2100 700 3.3 15 10,200 (255)
T 2600 700 2.9 < 1 10,200 (255)
T 3500 888 4.6 15 12,750 (318.8)
T 5500 750 4.5 < 1 25,500 (637.5)

These figures have been determined in accordance with in-house test methods and the methods of the Technical /Analytical Work Group within the European Depth Filtration Association.



2The permeability was measured under test conditions with clean water at 20 °C (68 °F) and a Δp of 1 bar (14.5 psi).



Regeneration

T Series Filter Sheets may be rinsed with clean water (in the forward or reverse direction) to increase throughput and to optimize economic efficiency. Optimal regeneration of filter sheets installed in a plate and frame filter may be achieved with serial rinses of warm water followed by hot water. An example protocol is shown below.



  • Rinse with warm water (60 °C / 140 °F) for 15 minutes
  • Rinse with hot water (70 – 80 °C / 158 – 176 °F) for 8 – 10 minutes



The rinse flow rate should be equivalent to the filtration flow rate with a back pressure of 0.5 –1 bar (7.2 –14.5 psi).



Sterilization and Sanitization

Method Temperature °C (°F) Maximum Differential Pressure bar (psi) Time3/ Cycle min
Steam 125 (257) 0.5 (7.2) 20
Hot Water 90 (194) 1 (14.5) 30

3The actual time required may vary as a function of the process conditions.



Filtration Guidelines

Please contact Pall for recommendations on your specific filtration process as results may vary by product, pre-filtration and filtration conditions.

For additional operating guidelines, including rinsing of sheets prior to use, please refer to instructions provided by Pall.



Quality

  • Filter sheets produced in a controlled environment
  • Manufactured according to ISO 9001:2015 certified Quality Management System
