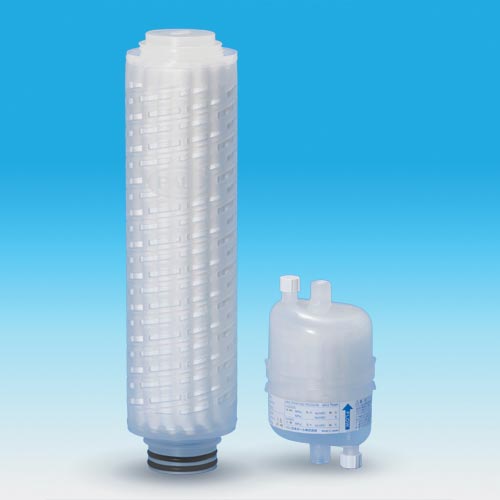

Profile® Star Pleated Depth Filter Cartridges

All-Polypropylene Depth Filters for High Particle Removal Efficiency

Profile Star pleated depth filter cartridges offer excellent chemical compatibility with a wide range of fluids across various applications. What makes them unique is they have been optimized to deliver the benefits of both traditional pleated and depth style trap filters - the ideal combination. A trait like this is possible since the filter utilizes a proven and successful proprietary technique of varying the fiber diameter to produce a pore size gradient from coarse (upstream) to fine (downstream) while maintaining a high open area throughout the depth of the filter medium.

Profile® Star Pleated Depth Filter Cartridges | Pall Shop

Order Products

Product ID: AB1A0157WH4

Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
1.5 µm
Membrane Material
Polypropylene
Industry-Specific Certification
W480 Food Contact
Cartridge Length (Imperial)
10 in
See All Attributes

Product ID: AB1A0103J

Unit of Measure
1/EA
Min Order Qty
1

Product ID: AB1A0307WH4

Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
3 µm
Membrane Material
Polypropylene
Filter Cartridge Style
Code 7
Cartridge Length (Imperial)
10 in
See All Attributes

Filter 10" Profile Star 40µm product photo
Product ID: AB1A4007J

Unit of Measure
6/EA
Min Order Qty
6

Product ID: AB1A0107H4

Unit of Measure
6/EA
Min Order Qty
6

Product ID: AB1A1007WH4

Unit of Measure
1/EA
Min Order Qty
1

Product ID: AB1A0503J

Unit of Measure
1/EA
Min Order Qty
1

Product ID: AB1A0107WH4

Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
1 µm
Membrane Material
Polypropylene
Filter Cartridge Style
Code 7
Cartridge Length (Imperial)
10 in
See All Attributes

Product ID: AB1A0507WH4

Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
5 µm
Membrane Material
Polypropylene
Filter Cartridge Style
Code 7
Cartridge Length (Imperial)
10 in
See All Attributes

Filter 10" Profile Star 5µm product photo
Product ID: AB1A0507H4

Unit of Measure
1/EA
Min Order Qty
1

Product ID: AB2A0107J

Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
1 µm
Membrane Material
Polypropylene
Filter Cartridge Style
Code 7
Cartridge Length (Imperial)
20 in
See All Attributes

Product ID: AB2A0103J

Unit of Measure
1/EA
Min Order Qty
6
Removal Rating
1 µm
Membrane Material
Polypropylene
Filter Cartridge Style
Code 3
Cartridge Length (Imperial)
20 in
See All Attributes

Description

Why choose Profile Star pleated depth filter cartridges?

The pressure drops and flow capability of these cartridges are comparable to competitive pleated polypropylene filters while also providing excellent removal of soft contaminants (gels) because of the depth of the medium. The pleat configuration also enables effective low pressure backflushing for food and beverage applications to remove surface particles and enhance filter regeneration.



Additional benefits include:



  • All-polypropylene construction
  • High dirt-holding capacity and flow rates
  • Long service life

Applications

Food and Beverage:

Liquid Applications



  • Beer – trap filtration, particle removal, pre-filtration
  • Bottled water and alcohol-free beverages – particle removal, pre-filtration
  • Wine – single step or multi-step pre-filtration



Air / Gas Applications

  • Fermentation – particle removal, pre-filtration of inlet air and exhausts

Documents

Data Sheets

  • Profile Star Filter Cartridges for Particle and Gel Removal
