CBFP Filter Vessels

When looking for a cost-effective single-bag filter vessel that is both durable and reliable, look to the Pall FSI CBFP series vessels. Although the standard CBFP series vessels do not carry an ASME Code stamp, you can still realize the benefits of an economic filter vessel that is manufactured to the same high standards and engineering expertise that characterizes all other FSI vessels.

Just like other FSI housing series, the Pall FSI CBFP filter vessels can use standard bags with or without the Polyloc ring and can also be configured to use high-performance Pall Marksman elements with the same housing and with no additional CAPEX.

Product images are a representation of product family for illustartion purpose only. Actual products may vary

BFNP0013C0150N01N01N02A1N STK

Product ID: VB428729CS
Unit of Measure
1/EA
Min Order Qty
1
$ 958.56

CBCP0012B0150N02N02N08A1N CUST

Product ID: VB438021N
Unit of Measure
1/EA
Min Order Qty
1
$ 1,863.15

CBCP0012C0150N02F02F02A1N CUST

Product ID: VB437899CS
Unit of Measure
1/EA
Min Order Qty
1
$ 1,963.87

CBCP0012C0150N02N02N06A1N CUST

Product ID: VB435942N
Unit of Measure
1/EA
Min Order Qty
1
$ 2,104.06

CBCP0013B0150N01N01N02A1N CUST

Product ID: VB437080BS
Unit of Measure
1/EA
Min Order Qty
1
$ 910.16

CBCP0013C0150N01N01N02A1N CUST

Product ID: VB437080CS
Unit of Measure
1/EA
Min Order Qty
1
$ 1,032.75

CBCP0014B0150N02N02N02A1N CUST

Product ID: VB437084BS
Unit of Measure
1/EA
Min Order Qty
1
$ 462.29

CBCP0014C0150N02N02N02A1N CUST

Product ID: VB437084CS
Unit of Measure
1/EA
Min Order Qty
1
$ 1,035.21

CBFP0011A0150N02F02F06A1N STND

Product ID: VB435593AS
Unit of Measure
1/EA
Min Order Qty
1
$ 1,054.57

CBFP0011A0150N02N02N02A1N STND

Product ID: VB435581AS
Unit of Measure
1/EA
Min Order Qty
1
$ 996.69

CBFP0011A0150N02N02N06A1N CUST

Product ID: VB439716N
Unit of Measure
1/EA
Min Order Qty
1
$ 1,223.74
CBFP0011A0150N02N02N06A1N STK product photo

CBFP0011A0150N02N02N06A1N STK

Product ID: VB435334AS
Unit of Measure
1/EA
Min Order Qty
1
$ 864.95

Description

Features:



  • Accepts Pall Marksman Series Filter Cartridges
  • Offset, Side Inlet with Side Outlet (same side or opposite), or Side Inlet with Bottom Outlet configuration available
  • Positive bag seating without the use of a manual hold-down device
  • Single gasket cover seal
  • Models 11, 12: Connections sizes available in either 2” or 3” NPT or flange
  • Models 13, 14: Connections sizes available in either 1” or 2” NPT or flange



Model 11 - Used for Size 1 Filter Bags

Model 12 - Used for Size 2 Filter Bags

Model 13 - Used for Size 3 Filter Bags

Model 14 - Used for Size 4 Filter Bags



CBFP Model 11, 12 Options

  • Available with extra length legs and evacuation floats
  • ASME Code upgrade available
  • NSF 61 Certification available with CBFP12 304SS and 316SS
  • Mesh lined and heavy duty rimmed basket available
  • Sanitary and Victaulic connections (available upon request)



CBFP Model 13, 14 Options

  • Mesh lined and heavy duty rimmed basket available
  • Flange, Sanitary and Victaulic connections (available upon request)
  • Adjustable clamp-on legs in Carbon Steel or 304 Stainless Steel

Preferred Stock Vessels for Sale

Model and Bag Size
Part Number
Description
CBFP 11 Size 1
VB435334AS
CBFP0011A0150N02N02N06A1N STK
VB435334CS
CBFP0011C0150N02N02N06A1N STK
CBFP 12 Size 2
VB432149AS
CBFP0012A0150N02N02N06A1N STK
VB432149CS
CBFP0012C0150N02N02N06A1N STK
CBFP 13 Size 3
VB436752AS
CBFP0013A0150N01N01N02A1N STK
CBFP 14 Size 4
VB436762AS
CBFP0014A0150N02N02N02A1N STK
VB436762CS
CBFP0014C0150N02N02N02A1N STK

Documents

Filter Vessel Documents

  • FSI Filter Vessels Catalog

    Select Language :
  • FSI Master Catalog

    Select Language :
  • FSI Bag Filters Vessels Brochure

    Select Language :

Specifications

Vessel Material
A
Carbon Steel
B
304 Stainless Steel
C
316 Stainless Steel
Vessel Pressure Rating (PSI)
0150
150 PSI (10.34 BAR)
Coating/Lining Material
N
None (Standard)
A
Electropolish
F
Paint finish/prep
S
Special
X
Passivation
Design Temperature Range
Carbon Steel
20 to 500°F (-6 to 260°C)
Stainless Steel
-20 to 250°F (-28 to 121°C)
Surface Finish
Carbon Steel
Acrylic enamel painted exterior
Stainless Steel
Light sand blast
Lid Opening Styles
1
Hinge, Swing Bolt
Connections
Flange
NPT
Filter Bag Size
Model 11
Size 1
Model 12
Size 2
Model 13
Size 3
Model 14
Size 4
Number of Bags
1
Code Stamp
None

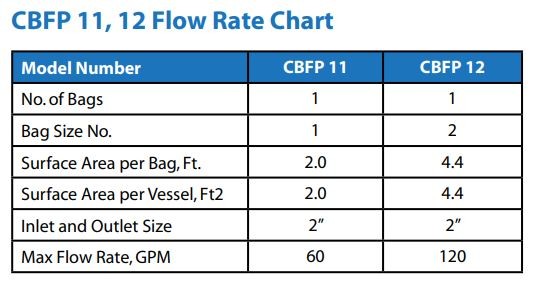

Maximum Flow Rate, GPM
Model 11
60
Model 12
120
Model 13
15
Model 14
30

NOTE: The maximum flow rate GPM is the MAXIMUM FLOW RATE recommended through the vessel using a 10 micron felt filter bag (PONG10) filtering water. Any increase in fluid viscosity will reduce the maximum GPM figures significantly. Please consult your Pall technical representative when sizing these vessels.
