SUPRApak™ Plus PW Series Modules

For High Throughput Depth Filtration in Enclosed Systems

SUPRApak Plus PW depth filter module design is using the new layer to layer seal technology.

The SUPRApak Plus PW meets the entire range of removal requirements in the food and beverage industry and is available in multiple grades suitable for applications requiring fine, clarifying and coarse filtration.

SUPRApak Plus PW Series Modules

Product images are a representation of product family for illustration purposes only. Actual products may vary.

SUPRApak PW 5900 LW

Product ID: 5302742
Unit of Measure
1/EA
Min Order Qty
1
Diameter (Imperial)
16 in
Diameter (Metric)
410 mm
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Filtration Area (Imperial)
86.1 ft²
Filtration Area (Metric)
8 m²
Food Contact Compliant
Yes
See All Attributes
$ 361.00

SUPRApak PW 7100 LW

Product ID: 5303072
Unit of Measure
1/EA
Min Order Qty
1
Diameter (Imperial)
16 in
Diameter (Metric)
410 mm
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Filtration Area (Imperial)
86.1 ft²
Filtration Area (Metric)
8 m²
Food Contact Compliant
Yes
See All Attributes
$ 361.00

SUPRApak PW 5700 MW

Product ID: 5303071/M
Unit of Measure
1/EA
Min Order Qty
1
Diameter (Imperial)
12 in
Diameter (Metric)
285 mm
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Filtration Area (Imperial)
29.1 ft²
Filtration Area (Metric)
2.7 m²
Food Contact Compliant
Yes
See All Attributes
$ 216.00

SUPRApak PW 7100 MW

Product ID: 5303072/M
Unit of Measure
1/EA
Min Order Qty
1
Diameter (Imperial)
12 in
Diameter (Metric)
285 mm
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Filtration Area (Imperial)
29.1 ft²
Filtration Area (Metric)
2.7 m²
Food Contact Compliant
Yes
See All Attributes
$ 216.00

SUPRApak PW 5200 SW

Product ID: 5302800/S
Unit of Measure
1/EA
Min Order Qty
1
Diameter (Imperial)
12 in
Diameter (Metric)
183 mm
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Filtration Area (Imperial)
4.3 ft²
Filtration Area (Metric)
0.4 m²
Food Contact Compliant
Yes
See All Attributes
$ 148.00

SUPRApak PW 5500 SW

Product ID: 5302807/S
Unit of Measure
1/EA
Min Order Qty
1
Diameter (Imperial)
12 in
Diameter (Metric)
183 mm
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Filtration Area (Imperial)
4.3 ft²
Filtration Area (Metric)
0.4 m²
Food Contact Compliant
Yes
See All Attributes
$ 148.00

SUPRApak PW 5700 SW

Product ID: 5303071/S
Unit of Measure
1/EA
Min Order Qty
1
Diameter (Imperial)
12 in
Diameter (Metric)
183 mm
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Filtration Area (Imperial)
4.3 ft²
Filtration Area (Metric)
0.4 m²
Food Contact Compliant
Yes
See All Attributes
$ 148.00

SUPRApak PW 5900 SW

Product ID: 5302742/S
Unit of Measure
1/EA
Min Order Qty
1
Diameter (Imperial)
12 in
Diameter (Metric)
183 mm
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Filtration Area (Imperial)
4.3 ft²
Filtration Area (Metric)
0.4 m²
Food Contact Compliant
Yes
See All Attributes
$ 148.00

SUPRApak PW 7100 SW

Product ID: 5303072/S
Unit of Measure
1/EA
Min Order Qty
1
Diameter (Imperial)
12 in
Diameter (Metric)
183 mm
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Filtration Area (Imperial)
4.3 ft²
Filtration Area (Metric)
0.4 m²
Food Contact Compliant
Yes
See All Attributes
$ 148.00

SUPRApak PW 7700 SW

Product ID: 5303104/S
Unit of Measure
1/EA
Min Order Qty
1
Diameter (Imperial)
12 in
Diameter (Metric)
183 mm
Filter Media
Kieselguhr, Perlite and Cellulose Fibers
Filtration Area (Imperial)
4.3 ft²
Filtration Area (Metric)
0.4 m²
Food Contact Compliant
Yes
See All Attributes

Description

Developed from traditional depth filtration technology, SUPRApak modules efficiently combine the filtration mechanisms of surface filtration, depth filtration and adsorption. Highly unique to their design is an entirely new flow configuration, based on the "edgeflow" principle.

Seitz® filter sheet material is wrapped around a central, permeable core. Feed and filtrate channels provide a fluid flow path resulting in maximum utilization of the sheet material, to provide highly efficient contaminant removal and a cost-effective enclosed system alternative to flat sheet filtration. New to the SUPRApak PW Series is an improved layer to layer sealing which offers the following features and benefits:



Features Benefits
Flow configuration based on "edge flow" principle
  • Up to 6 times higher throughput compared to classical sheet filtration, resulting in longer process uptimes1
  • Increased adsorption capability and excellent filtrate quality

Sealing line technology

  • Higher mechanical stability
  • Modules can be steam sanitized
  • Higher dp stability and therefore higher total throughput
Enclosed filtration system
  • Increased process safety and product quality
  • No drip losses
  • Minimal operator exposure to process fluids

Drainable, low hold-up volume assembly

  • Higher product yield; lower cleaning costs

High filtration capacity in compact design

  • Small footprint

Simple, quick installation and servicing

  • Reduced labor and maintenance costs

Applications

Typical applications are found in many fluids in the food and beverage industry.



Final Filtration Enzyme solutions, Sweeteners
Polishing filtration Sweeteners, Beer, Wine, Flavors, Thin liquor gelatin, Yeast extract, Vinegar
Clarifying filtration Beer, Wine, Enzymes, Flavors, Thin liquor gelatin, Polyols, Edible oils
Coarse filtration General particle removal

Specifications

Quality

  • Filter sheets produced in a controlled environment
  • Manufactured according to ISO 9001:2008 certified Quality Management System



Food Contact Compliance

Please refer to the Pall website for a Declaration of Compliance to specific National Legislation and/or Regional Regulatory requirements for food contact use.



Main Components2


Sheet Material
PW 5200, PW 5500, PW 5700, PW 5900, PW 7100
Cellulose, Diatomaceous Earth (DE, Kieselguhr) Perlites
Center Core Polypropylene (20% talc-filled)
Sealing Line Polypropylene

2For more information on materials of construction, please see the Declaration of Compliance at.



Technical Information

Operating Characteristics in Compatible Fluids3

Module Size Grade Max. Operating Temperature
SUPRApak M, L PW 5200–PW 7100 80 °C (167 °F) / 8 hours4

3 Compatible fluids are those which do not adversely affect the filter materials of construction.

4 Laboratory tests up to 8 hours exposure. Actual field experience shows substantially longer resistance to high temperatures. For continuous hot fluid applications over 40° C (104° F), a stainless steel support core is required. Please see SUPRApak housing data sheet for information.



Operating Guidelines

Field experience shows that maximum achievable differential pressures vary with the applications and product selection. They are determined by monitoring filtrate quality, and are influenced by several factors. Please contact Pall for details, and refer to SUPRApak module instructions for use.



Nominal Weight and Typical Ash Content

Module Dry Weight Wet Weight Ash Content5

SUPRApak M

(PW 5200 – PW 7100)

5.1 – 5.6 kg

(11.2–12.3 lbs)

15.5 –16.5 kg

(34.1–36.3 lbs)

40 – 54%

SUPRApak L

(PW 5200 – PW 7100)

11–12 kg

(24.2–26.4 lbs)

25 – 30 kg

(55 – 66 lbs)

40 – 54%

5 These figures are determined on typical finished articles. Values differ for individual PW grades. Ash values for the filter sheets in individual batches are available on request.



Many applications in the food and beverage industry are ideally suited to the use of SUPRApak technology, resulting in significant commercial and technical advantages.



Sanitization6

Method Temperature Time/Cycles6
Hot Water 85 °C (185 °F) 20 cycles @ 20 min each
Steam 125 °C (258 °F) 10 cycles @ 20 min each

6The actual time required may vary as a function of the process conditions. Laboratory tests were carried out up to 10 cycles. Actual field experience shows more cycles are achievable, coupled with proper filtrate quality monitoring.



Rinsing7

Module Size Rising Volume/Module Recommended Flow Rate
SUPRApak M 140 liters (37 gal) 1.5 times filtration flow rate
SUPRApak L 340 liters (90 gal) 1.5 times filtration flow rate
7 Depending on the application, rinsing with cold or warm water in a forward flow direction is recommended prior to filtration.

Documents

Datasheet

  • SUPRApak™ Plus PW Series Modules

    Select Language :

Related Documents

  • Increase Filtration Capacity and Reduce Process Time in Citrus Oil De-waxing Applications

    Select Language :

Videos

Pall SUPRApak vs Filter Press setup time

Ordering Information

This information is a guide to the part number structure and possible options. For availability of specific options and housing details, please contact Pall.



Part Number: SUPRApak PW [Table 1] [Table 2] W

Example Part Number: SUPRApak PW 5200 LW

See bold reference code in tables

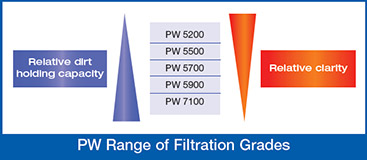

Table 1: Grade

Code
5200
5500
5700
5900
7100


Table 2: Nominal Dimensions

Code Height External Diameter
M 250 mm (9.8") 285 mm (11.2")
L 250 mm (9.8") 415 mm (16.3")
