Pall® PD2 Powder Handling Bags



Safe and easy powder containment and transfer

Overview

Containment of pharmaceutical ingredients and materials, whether for the protection of operators, the environment or the product itself, is a continuing priority for the pharmaceutical industry.

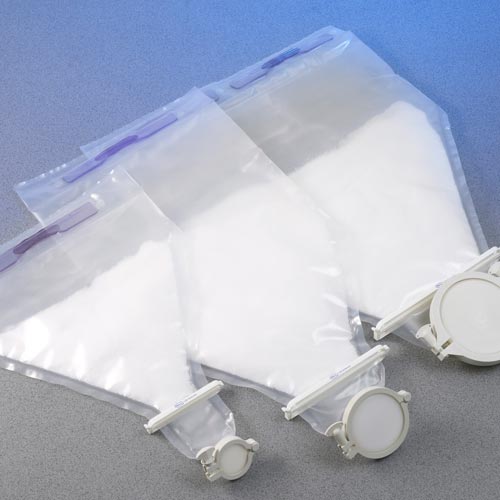

Pall PD2 powder handling bags have been developed with anti-static properties. The PD2 bags are available in a wide range of sizes from 125 mL up to 50L with ports available in 2 inch, 3 inch, 4 inch and 6 inch. Additionally, we can offer all required filling and powder bag transportation equipment from the start to the final use. This makes the PD2 powder bag offering one of the most flexible offering on the market dedicated compliant with pharmaceutical requirements (GMP).

The PD2 film has been developed to allow the bags to be supplied in irradiated or non-irradiated formats, depending on the application requirements.

Shop Powder Handling Bags

Accessories and Spare Parts
Accessories and Spare Parts

Order Products

Large powder bag lift, 2540-3455 mm height product photo

Large powder bag lift, 2540-3455 mm height

Product ID: LGRMXPBSL
Unit of Measure
1/EA
Min Order Qty
1
See All Attributes
125 mL PD2 powder handling bag, 2 in. sanitary outlet diameter, sterile claim, box of 20 product photo

125 mL PD2 powder handling bag, 2 in. sanitary outlet diameter, sterile claim, box of 20

Product ID: PD2U8TS0000-SC01
Unit of Measure
20/EA
Min Order Qty
20
See All Attributes
5 L PD2 powder handling bag, 2 in. sanitary outlet diameter, sterile claim, box of 20 product photo

5 L PD2 powder handling bag, 2 in. sanitary outlet diameter, sterile claim, box of 20

Product ID: PD2UATS0000-SC02
Unit of Measure
20/EA
Min Order Qty
20
See All Attributes
2.5 L PD2 powder handling bag, 3 in. sanitary outlet diameter, sterile claim, box of 20 product photo

2.5 L PD2 powder handling bag, 3 in. sanitary outlet diameter, sterile claim, box of 20

Product ID: PD2UATS0000-SC18
Unit of Measure
20/EA
Min Order Qty
20
See All Attributes
5 L PD2 powder handling bag, 4 in. sanitary outlet diameter, sterile claim, box of 20 product photo

5 L PD2 powder handling bag, 4 in. sanitary outlet diameter, sterile claim, box of 20

Product ID: PD2UATS0000-SC03
Unit of Measure
20/EA
Min Order Qty
20
See All Attributes
5 L PD2 powder handling bag, 6 in. sanitary outlet diameter, sterile claim, box of 10 product photo

5 L PD2 powder handling bag, 6 in. sanitary outlet diameter, sterile claim, box of 10

Product ID: PD2UATS0000-SC04
Unit of Measure
10/EA
Min Order Qty
10
See All Attributes
15 L PD2 powder handling bag, 2 in. sanitary outlet diameter, sterile claim, box of 20 product photo

15 L PD2 powder handling bag, 2 in. sanitary outlet diameter, sterile claim, box of 20

Product ID: PD2UATS0000-SC05
Unit of Measure
20/EA
Min Order Qty
20
See All Attributes
15 L PD2 powder handling bag, 4 in. sanitary outlet diameter, sterile claim, box of 10 product photo

15 L PD2 powder handling bag, 4 in. sanitary outlet diameter, sterile claim, box of 10

Product ID: PD2UATS0000-SC06
Unit of Measure
10/EA
Min Order Qty
10
See All Attributes
15 L PD2 powder handling bag, 6 in. sanitary outlet diameter, sterile claim, box of 10 product photo

15 L PD2 powder handling bag, 6 in. sanitary outlet diameter, sterile claim, box of 10

Product ID: PD2UATS0000-SC07
Unit of Measure
10/EA
Min Order Qty
10
See All Attributes
30 L PD2 powder handling bag, 4 in. sanitary outlet diameter, sterile claim, box of 10 product photo

30 L PD2 powder handling bag, 4 in. sanitary outlet diameter, sterile claim, box of 10

Product ID: PD2UATS0000-SC08
Unit of Measure
10/EA
Min Order Qty
10
See All Attributes
50 L PD2 powder handling bag, 4 in. sanitary outlet diameter, sterile claim, box of 10 product photo

50 L PD2 powder handling bag, 4 in. sanitary outlet diameter, sterile claim, box of 10

Product ID: PD2UATS0000-SC10
Unit of Measure
10/EA
Min Order Qty
10
See All Attributes
50 L PD2 powder handling bag, 6 in. sanitary outlet diameter, sterile claim, box of 10 product photo

50 L PD2 powder handling bag, 6 in. sanitary outlet diameter, sterile claim, box of 10

Product ID: PD2UATS0000-SC11
Unit of Measure
10/EA
Min Order Qty
10
See All Attributes
101 Items

Description

Safe and easy powder containment and transfer



Containment of pharmaceutical ingredients and materials, whether for the protection of operators, the environment or the product itself, is a continuing priority for the pharmaceutical industry.



Pall PD2 powder handling bags have been developed with anti-static properties. The PD2 bags are available in a wide range of sizes from 125 mL up to 50L with ports available in 2 inch, 3 inch, 4 inch and 6 inch. Additionally, we can offer all required filling and powder bag transportation equipment from the start to the final use. This makes the PD2 powder bag offering one of the most flexible offering on the market dedicated compliant with pharmaceutical requirements (GMP).



The PD2 film has been developed to allow the bags to be supplied in irradiated or non-irradiated formats, depending on the application requirements.



Feature Benefit
100% leak tested Robust and safe technology for powder handling applications
Tapered funnel-shaped bag and polyethylene based multi-layer film with a permanent antistatic additive in the contact layer High product recovery during operation, typically >99.95%
Flexible, transparent material, ergonomic handle Ease-of-use and process visibility
Made in ISO Class 7 cleanroom Suitable for use in all typical biopharmaceutical applications
Standard sanitary connections in 2 in., 4 in. or 6 in. sizes Broad connection compatibility and robust powder containment and process integrity
2.5 L to 50 L capacities as standard Suitable for a wide range of powder handling applications and volumes
125 mL samples available Off-the-shelf availability for stability studies
Lifting technology available to support powder bags around mixing applications Can form part of a total processing solution for powder handling around mixing applications
Available in both irradiated and non-irradiated formats Can be used in applications where powder requires irradiation after filling into the powder bags
3 sterilization grades available: sterile claimed, gamma-irradiated, none gamma-irradiated Flexible to suit applications requiring different sterilization grade

Applications

Applications include contained transfer, storage or shipping of:



  • Dry powder media
  • Filter aids
  • Buffer salts
  • Excipients

Documents

Datasheet

Validation Guide

  • Powder Handling Bags with PD2 Film

    Enter your details to download

Specifications

Technical Specifications



The Pall PD2 powder handling bags are constructed from a polyethylene based multi layer film with a permanent antistatic additive in the contact layers.

The film thickness is 200 micron.

Maximum Load: 25 kg/handle

Sterilization Method: Gamma irradiation (maximum 50 kGy)



Supporting Hardware and Single-Use Accessories



To facilitate ease-of-use of the powder handling bags, a range of hardware is available to assist in the powder addition and delivery into a process.

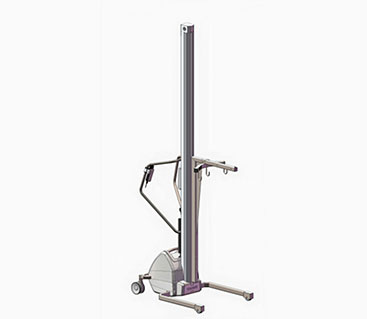

Figure 1

Powder bag lifting device

Figure 2

Powder bag filling hardware

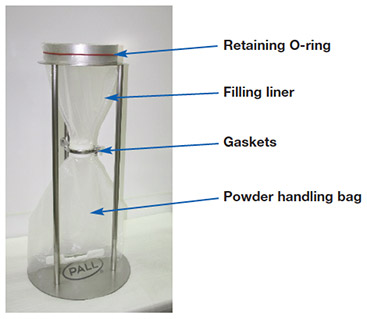

Figure 3

Essential single-use accessories for the powder bag filling hardware

A wide range of single-use accessories is available. The main items are highlighted and are referenced with all other accessories in the ordering information section of this datasheet. Single-use accessories include:



Closures: Sanitary clamp, gaskets, caps and plugs to securely close the PD2 powder bag.

Outer Clamps: A variety of pinch clamps to control powder movement within a powder bag.

Filling Liners: Single-use devices to facilitate filling of a powder bag.

Chutes: To extend the connectivity of the powder bag outlets.

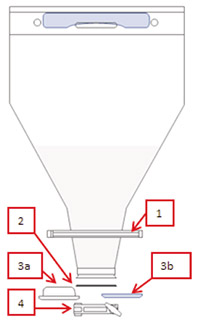

Table 1

Accessories for powder handling bags1

Size 1. Pinch Clamp 2. Gasket 3a/3b. End Cap 4. Sanitary Clamp
  Non-irradiated Irradiated
 Non-irradiated Irradiated
 Non-irradiated Irradiated Non-irradiated
2 in. sanitary outlet
 700009CNS 4100142CS 4100142CNS 3a: 4101083S 3a: 4101083NS 700154CS 700154CNS
3 in. sanitary outlet 700119CNS SC00876S SC00876NS 3b: FY02445S 3b: FY02445NS FY02444S FY02444NS
4 in. sanitary outlet 700119CNS 4100138CS 4100138CNS 3a: 4100136S 3a: 4100136NS 700152CS 700152CNS
6 in. sanitary outlet
 700734CNS 4100134CS 4100134CNS 3b: 700603CS 3b: 700603CNS 701076CS 701076CNS

1Minimum Order Quantity 10 pieces



Quality Standards



Pall PD2 powder handling bags are:

  • 100% leak tested
  • Manufactured in-house in a controlled environment (ISO 7) under a quality management systems certified to ISO 9000.

A full Validation Guide is available. The materials of construction of the powder handling bags are compliant with the following USP/Regulations:

  • ISO 10993-5 (biological compatibility)
  • USP <87> (cytotoxicity)
  • USP <88> Class VI (biological reactivity)
  • USP <661> (physicochemical tests for plastics)
  • BSE/TSE EMEA 410/01

Additional Information

Powder Handling Bags


Powder Handling Bags (Sterile Claim Certified)




Part Number Description MOQ* Accessories Included
PD2U8TS0000-SC01 125 mL, Pall PD2 powder handling bag, 2 in. sanitary outlet, sterile claim 20 Pinch clamp
Sanitary clamp
Endcap
Gasket
PD2UATS0000-SC16 2.5 L, Pall PD2 powder handling bag, 2 in. sanitary outlet, sterile claim 20
PD2UATS0000-SC18 2.5 L, Pall PD2 powder handling bag, 3 in. sanitary outlet, sterile claim 20
PD2UATS0000-SC17 2.5 L, Pall PD2 powder handling bag, 4 in. sanitary outlet, sterile claim 20
PD2UATS0000-SC02 5 L, Pall PD2 powder handling bag, 2 in. sanitary outlet, sterile claim 20
PD2UATS0000-SC12 5 L, Pall PD2 powder handling bag, 3 in. sanitary outlet, sterile claim 20
PD2UATS0000-SC03 5 L, Pall PD2 powder handling bag, 4 in. sanitary outlet, sterile claim 20
PD2UATS0000-SC04 5 L, Pall PD2 powder handling bag, 6 in. sanitary outlet, sterile claim 10
PD2UATS0000-SC05 15 L, Pall PD2 powder handling bag, 2 in. sanitary outlet, sterile claim 20
PD2UATS0000-SC13 15 L, Pall PD2 powder handling bag, 3 in. sanitary outlet, sterile claim 10
PD2UATS0000-SC06 15 L, Pall PD2 powder handling bag, 4 in. sanitary outlet, sterile claim 10
PD2UATS0000-SC07 15 L, Pall PD2 powder handling bag, 6 in. sanitary outlet, sterile claim 10
PD2UATS0000-SC14 30 L, Pall PD2 powder handling bag, 3 in. sanitary outlet, sterile claim 10
PD2UATS0000-SC08 30 L, Pall PD2 powder handling bag, 4 in. sanitary outlet, sterile claim 10
PD2UATS0000-SC09 30 L, Pall PD2 powder handling bag, 6 in. sanitary outlet, sterile claim 10
PD2UATS0000-SC15 50 L, Pall PD2 powder handling bag, 3 in. sanitary outlet, sterile claim 10
PD2UATS0000-SC10 50 L, Pall PD2 powder handling bag, 4 in. sanitary outlet, sterile claim 10
PD2UATS0000-SC11 50 L, Pall PD2 powder handling bag, 6 in. sanitary outlet, sterile claim 10
*MOQ = Minimum order quantity

Powder Handling Bags (Gamma Irradiated)

  Order Separately
Part Number Description MOQ*

Clamp

Part

Number

 MOQ

Sanitary

Clamp

Part

Number

 MOQ

Endcap

Part

Number

 MOQ

Gasket

Part

Number

 MOQ
PD2U8TS0000-0001

125 mL Pall PD2 powder handling bag, 2 in. sanitary outlet, irradiated

 20 700009CNS 10 700154CS 10 4101083S 10 4100142CS 10
PD2UATS0000-0012

2.5 L, Pall PD2 powder handling bag, 2 in. sanitary outlet, irradiated

 20 700009CNS 10 700154CS 10 4101083S 10 4100142CS 10
PD2UATS0000-0022

2.5 L, Pall PD2 powder handling bag, 3 in. sanitary outlet, irradiated

 20 700119CNS 10 FY02444S 10 FY02445S 10 SC00876S 10
PD2UATS0000-0014

2.5 L, Pall PD2 powder handling bag, 4 in. sanitary outlet, irradiated

 60
 700119CNS 10 700152CS 10 4100136S 10 4100138CS 10
PD2UATS0000-0002

5 L, Pall PD2 powder handling bag, 2 in. sanitary outlet, irradiated

 20 700009CNS 10 700154CS 10 4101083S 10 4100142CS 10
PD2UATS0000-0023

5 L, Pall PD2 powder handling bag, 3 in. sanitary outlet, irradiated

 20 700119CNS 10 FY02444S 10 FY02445S 10 SC00876S 10
PD2UATS0000-0003

5 L, Pall PD2 powder handling bag, 4 in. sanitary outlet, irradiated

 20 700119CNS 10 700152CS 10 4100136S 10 4100138CS 10
PD2UATS0000-0004

5 L, Pall PD2 powder handling bag, 6 in. sanitary outlet, irradiated

 10 700734CNS 10 701076CS 10 700603CS 10 4100134CS 10
PD2UATS0000-0005

15 L, Pall PD2 powder handling bag, 2 in. sanitary outlet, irradiated

 20 700009CNS 10 700154CS 10 4101083S 10 4100142CS 10
PD2UATS0000-0024

15 L, Pall PD2 powder handling bag, 3 in. sanitary outlet, irradiated

 20 700119CNS 10 FY02444S 10 FY02445S 10 SC00876S 10
PD2UATS0000-0006

15 L, Pall PD2 powder handling bag, 4 in. sanitary outlet, irradiated

 20 700119CNS 10 700152CS 10 4100136S 10 4100138CS 1
PD2UATS0000-0007

15 L, Pall PD2 powder handling bag, 6 in. sanitary outlet, irradiated

 10 700734CNS 10 701076CS 10 700603CS 10 4100134CS 10
PD2UATS0000-0025

30 L, Pall PD2 powder handling bag, 3 in. sanitary outlet, irradiated

 20 700119CNS 10 FY02444S 10 FY02445S 10 SC00876S 10
PD2UATS0000-0008

30 L, Pall PD2 powder handling bag, 4 in. sanitary outlet, irradiated

 20 700119CNS 10 700152CS 10 4100136S 10 4100138CS 10
PD2UATS0000-0009

30 L, Pall PD2 powder handling bag, 6 in. sanitary outlet, irradiated

 10 700734CNS 10 701076CS 10 700603CS 10 4100134CS 10
PD2UATS0000-0026

50 L, Pall PD2 powder handling bag, 3 in. sanitary outlet, irradiated

 10 700119CNS 10 FY02444S 10 FY02445S 10 SC00876S 10
PD2UATS0000-0010

50 L, Pall PD2 powder handling bag, 4 in. sanitary outlet, irradiated

 10 700119CNS 10 700152CS 10 4100136S 10 4100138CS 10
PD2UATS0000-0011

50 L, Pall PD2 powder handling bag, 6 in. sanitary outlet, irradiated

 10 700734CNS 10 701076CS 10 700603CS 10 4100134CS 10
*MOQ = Minimum order quantity



Powder Handling Bags (Not Gamma Irradiated)

  Order Separately
Part Number Description MOQ*

Pinch

Clamp

Part

Number

 MOQ

Sanitary

Clamp

Part

Number

 MOQ

Endcap

Part

Number

 MOQ

Gasket

Part

Number

 MOQ
PD2U8T-0000-0001

125 ml, Pall PD2 powder handling bag, 2 in. sanitary outlet, non-irradiated

 20 700009CNS 10 700154CNS 10 4101083NS 10 4100142CNS 10
PD2UAT-0000-0012

2.5 L, Pall PD2 powder handling bag, 2 in. sanitary outlet, non-irradiated

 20 700009CNS 10 700154CNS 10 4101083NS 10 4100142CNS 10
PD2UAT-0000-0022

2.5 L, Pall PD2 powder handling bag, 3 in. sanitary outlet, non-irradiated

 20 700119CNS 10 FY02444NS 10 FY02445NS 10 SC00876NS 10
PD2UAT-0000-0014

2.5 L, Pall PD2 powder handling bag, 4 in. sanitary outlet, non-irradiated

 60 700119CNS 10 700152CNS 10 4100136NS 10 4100138CNS 10
PD2UAT-0000-0002

5 L, Pall PD2 powder handling bag, 2 in. sanitary outlet, non-irradiated

 20 700009CNS 10 700154CNS 10 4101083NS 10 4100142CNS 10
PD2UAT-0000-0023

5 L, Pall PD2 powder handling bag, 4 in. sanitary outlet, non-irradiated

 20 700119CNS 10 FY02444NS 10 FY02445NS 10 SC00876NS 10
PD2UAT-0000-0003

5 L, Pall PD2 powder handling bag, 4 in. sanitary outlet, non-irradiated

 20 700119CNS 10 700152CNS 10 4100136NS 10 4100138CNS 10
PD2UAT-0000-0004

5 L, Pall PD2 powder handling bag, 6 in. sanitary outlet, non-irradiated

 10 700734CNS 10 701076CNS 10 700603CNS 10 4100134CNS 10
PD2UAT-0000-0005

15 L, Pall PD2 powder handling bag, 2 in. sanitary outlet, non-irradiated

 20 700009CNS 10 700154CNS 10 4101083NS 10 4100142CNS 10
PD2UAT-0000-0024

15 L, Pall PD2 powder handling bag, 3 in. sanitary outlet, non-irradiated

 20 700119CNS 10 FY02444NS 10 FY02445NS 10 SC00876NS 10
PD2UAT-0000-0006

15 L, Pall PD2 powder handling bag, 4 in. sanitary outlet, non-irradiated

 20 700119CNS 10 700152CNS 10 4100136NS 10 4100138CNS 10
PD2UAT-0000-0007

15 L, Pall PD2 powder handling bag, 6 in. sanitary outlet, non-irradiated

 10 700734CNS 10 701076CNS 10 700603CNS 10 4100134CNS 10
PD2UAT-0000-0025

30 L, Pall PD2 powder handling bag, 3 in. sanitary outlet, non-irradiated

 20 700119CNS 10 FY02444NS 10 FY02445NS 10 SC00876NS 10
PD2UAT-0000-0008

30 L, Pall PD2 powder handling bag, 4 in. sanitary outlet, non-irradiated

 20 700119CNS 10 700152CNS 10 4100136NS 10 4100138CNS 10
PD2UAT-0000-0009

30 L, Pall PD2 powder handling bag, 6 in. sanitary outlet, non-irradiated

 10 700734CNS 10 701076CNS 10 700603CNS 10 4100134CNS 10
PD2UAT-0000-0026

50 L, Pall PD2 powder handling bag, 3 in. sanitary outlet, non-irradiated

 10 700119CNS 10 FY02444NS 10 FY02445NS 10 SC00876NS 10
PD2UAT-0000-0010

50 L, Pall PD2 powder handling bag, 4 in. sanitary outlet, non-irradiated

 10 700119CNS 10 700152CNS 10 4100136NS 10 4100138CNS 10
PD2UAT-0000-0011

50 L, Pall PD2 powder handling bag, 6 in. sanitary outlet, non-irradiated

 10 700734CNS 10 701076CNS 10 700603CNS 10 4100134CNS 10

*MOQ = Minimum order quantity





Powder Transfer Filling Support Liners and Powder Chutes



Part Number Description MOQ*
PD2UATS0000-0050 Pall PD2 liner, 5 L, 2 in. sanitary outlet, gamma irradiated 20
PD2UATS0000-0053 Pall PD2 liner, 5 L, 3 in. sanitary outlet, gamma irradiated 20
PD2UATS0000-0051 Pall PD2 liner, 5 L, 4 in. sanitary outlet, gamma irradiated 20
PD2UATS0000-0052 Pall PD2 liner, 5 L, 6 in. sanitary outlet, gamma irradiated 20
PD2UATS0000-0071 Pall PD2 powder chute, 4 in., 2 in. sanitary outlet, gamma irradiated 20
PD2UATS0000-0072 Pall PD2 powder chute, 4 in., 3 in. sanitary outlet, gamma irradiated 20
PD2UATS0000-0070 Pall PD2 powder chute, 4 in., 4 in. sanitary outlet, gamma irradiated 20

*MOQ = Minimum order quantity



Powder Transfer Filling Support Hardware



Part Number Description
705285 Powder bag filling support, 4 in. sanitary connection, with integral legs
705286 Leg extender kit for Powder bag filling support
705287 Small base plate (14.6 in. diameter) for powder bag filling support
705288 Large base plate (20 in. diameter) for powder bag filling support
705363 Clamp assembly, 2 in. sanitary connection
705364 Clamp assembly, 6 in. sanitary connection
705337 Retaining O-ring (supplied in box qty = 10)



Powder Handling Bag Accessories

Part Number Description Size MOQ*
700009CNS Pinch clamp, white polyamide (PA) 150 mm 10
700119CNS Pinch clamp, white PA 220 mm 10
700734CNS Pinch clamp, white PA 320 mm 10
700154CNS Sanitary clamp, white PA 2 in. 10
700154CS Sanitary clamp, white PA, gamma irradiated 2 in. 10
FY02444NS Sanitary clamp, white PA 3 in. 10
FY02444S Sanitary clamp, glass-filled (GF) nylon, gamma irradiated 3 in. 10
700152CNS Sanitary clamp, white PA 4 in. 10
700152CS Sanitary clamp, white PA, gamma irradiated 4 in. 10
701076CNS Sanitary clamp, white PA 6 in. 10
701076CS Sanitary clamp, white PA, gamma irradiated 6 in. 10
4100142CNS Gasket, white silicone 2 in. 10
4100142CS Gasket, white silicone, gamma irradiated 2 in. 10
SC00876NS Gasket, white silicone 3 in. 10
SC00876S Gasket, white silicone, gamma irradiated 3 in. 10
4100138CNS Gasket, white silicone 4 in. 10
4100138CS Gasket, white silicone, gamma irradiated 4 in. 10
4100134CNS Gasket, white silicone 6 in. 10
4100134CS Gasket, white silicone, gamma irradiated 6 in. 10
4101083NS Cup end cap, natural high-density polyethylene (HDPE) 2 in. 10
4101083S Cup end cap, natural HDPE, gamma irradiated 2 in. 10
4100136NS Cup end cap, natural HDPE 4 in. 10
4100136S Cup end cap, natural HDPE, gamma irradiated 4 in. 10
FY02445NS End cap flat, polypropylene (PP) 3 in. 10
FY02445S End cap flat, PP, gamma irradiated 3 in. 10
700123CNS End cap flat, natural HDPE 4 in. 10
700603CNS End cap flat, natural HDPE 6 in. 10
700603CS End cap flat, natural HDPE, gamma irradiated 6 in. 10
700204CNS Tyvek* cap 2 in. 2 in. 10
700125CNS Tyvek cap 4 in. 10
700604CNS Tyvek cap 6 in. 10
700214CNS Push-in dust cap, low-density polyethylene (LDPE) 4 in. 10

*MOQ = Minimum order quantity; C= cleaned;  NS= Non-sterilized; S= Sterilized

Applications

Bags - Powder Transfer
