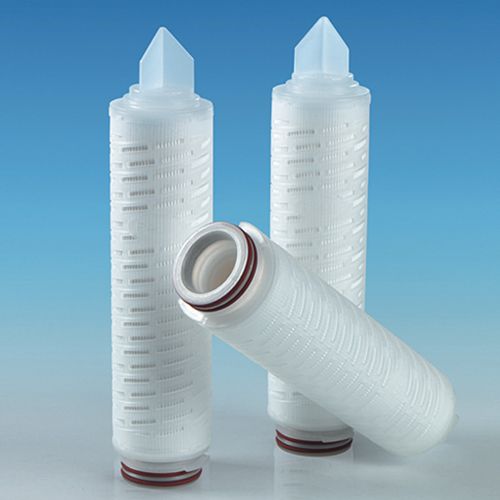

Emflon® HTPFRW Filter Cartridges product photo Primary L

Emflon® HTPFRW Filter Cartridges

Emflon HTPFRW cartridges are sterilizing grade hydrophobic membrane filters designed for reliable retention of bacteria and high levels of phages in compressed gas and vent applications.

Emflon HTPFRW cartridges are specifically designed for critical, high temperature sterile filtration of compressed air and gas and hot fluid tank venting applications. They can also be considered for use in oxygen-enriched air applications.1 In the food and ingredient industry, high temperature applications include fermentation inlet and exhaust air and aseptic packaging/ blow-fill-seal. Oxygen enrichment of air is used in fermenter or bioreactor applications where improved aeration enables higher product yields.

The filters feature Pall’s advanced 0.2 micron rated polytetrafluoroethylene (PTFE) double layer membranes, pleated with very high area into single open-end cartridges. The polypropylene hardware is specially formulated with oxidation-resistant materials, and the filters’ support and drainage layers are made of polyphenylene sulphide polymer for oxidation protection.


Features Benefits
Inherently hydrophobic 100% PTFE membranes Prevents wetting out in humid conditions or repeated steaming cycles, ensuring unrestricted gas throughput
High area pleated, robust double-layer membranes Economical installations due to high throughputs and low pressure drops
Excellent resistance to mechanical damage
Oxidation-resistant materials of construction Long service life in hot air and vent applications, also suitable for oxygen-enriched air applications1
Multi-cycle in situ steam challenged in forward and reverse direction Enhanced steaming resistance
Validated for 0.2 micron bacteria removal in liquid and aerosol challenge tests Sterile effluent even in humid conditions, resulting in improved fermentation yields and reliable protection from contamination
Aerosol bacteriophage challenged Superior bacteriophage protection of microbial cultures
Water Intrusion testable (WIT) Enables in situ user integrity testing with water
Part and serial number laser etched and encoded in 2D matrix Filter identifying information can be scanned with a 2D matrix code reader to complement the use of a Palltronic® Flowstar integrity test instrument
100% integrity tested prior to dispatch; individually serialized modules Documented quality; full traceability to materials and production records

1 Please refer to Application Note USTR2311a for important guidelines regarding use in oxygen and oxygen-enriched air. The user must perform a suitable risk assessment regarding such applications.


* Required
Need Help?
Download Datasheet
Description
Emflon HTPFRW cartridges are sterilizing grade hydrophobic membrane filters designed for reliable retention of bacteria and high levels of phages in compressed gas and vent applications.

Emflon HTPFRW cartridges are specifically designed for critical, high temperature sterile filtration of compressed air and gas and hot fluid tank venting applications. They can also be considered for use in oxygen-enriched air applications.1 In the food and ingredient industry, high temperature applications include fermentation inlet and exhaust air and aseptic packaging/ blow-fill-seal. Oxygen enrichment of air is used in fermenter or bioreactor applications where improved aeration enables higher product yields.

The filters feature Pall’s advanced 0.2 micron rated polytetrafluoroethylene (PTFE) double layer membranes, pleated with very high area into single open-end cartridges. The polypropylene hardware is specially formulated with oxidation-resistant materials, and the filters’ support and drainage layers are made of polyphenylene sulphide polymer for oxidation protection.


Features Benefits
Inherently hydrophobic 100% PTFE membranes Prevents wetting out in humid conditions or repeated steaming cycles, ensuring unrestricted gas throughput
High area pleated, robust double-layer membranes Economical installations due to high throughputs and low pressure drops
Excellent resistance to mechanical damage
Oxidation-resistant materials of construction Long service life in hot air and vent applications, also suitable for oxygen-enriched air applications1
Multi-cycle in situ steam challenged in forward and reverse direction Enhanced steaming resistance
Validated for 0.2 micron bacteria removal in liquid and aerosol challenge tests Sterile effluent even in humid conditions, resulting in improved fermentation yields and reliable protection from contamination
Aerosol bacteriophage challenged Superior bacteriophage protection of microbial cultures
Water Intrusion testable (WIT) Enables in situ user integrity testing with water
Part and serial number laser etched and encoded in 2D matrix Filter identifying information can be scanned with a 2D matrix code reader to complement the use of a Palltronic® Flowstar integrity test instrument
100% integrity tested prior to dispatch; individually serialized modules Documented quality; full traceability to materials and production records

1 Please refer to Application Note USTR2311a for important guidelines regarding use in oxygen and oxygen-enriched air. The user must perform a suitable risk assessment regarding such applications.
Specifications

Materials of Construction


Component Description
Filter Medium Double-layer PTFE
Support / Drainage Polyphenylene Sulphide
Cage Polypropylene with Silica / TiO2 filler
Core, Fin End, End Cap Polypropylene
Adaptor Polypropylene with internal stainless steel reinforcing ring
O-ring Seal Silicone Elastomer Ethylene Propylene Rubber


Technical Information

The technical information provided is based on controlled laboratory tests done on typical production filters at the conditions described, unless otherwise indicated. Actual operating conditions may affect the filter’s performance.

Nominal Filter Area

0.84 m 2 (9.04 ft2) per 254 mm (10") module

Operating Characteristics in Compatible Gases2


Maximum Differential Pressure Operating Temperature
3.4 bard (49.3 psid) (forward) ≤ 90 °C (194 ºF)
5.4 bard (78.3 psid) (forward) ≤ 40 °C (104 ºF)
3 bard (43.5 psid) (reverse) ≤ 40 °C (104 ºF)

2 Air, nitrogen, or other compatible gases. For differential pressure and temperature limits in applications with oxygen-enriched air please refer to Application Note USTR2311a or contact Pall.

Typical Service Life in Continuous Air Service


Maximum Temperature2, 3 Service Life
100 °C (212 °F) 1 year
110 °C (230 °F) 6 months
120 °C (248 °F) 2 months

3 For continuous gas flow under 60 ºC (140 ºF) in critical applications, Emflon PFRW filters are recommended.

Autoclave and Steaming4


Cumulative Steaming Time Operating Temperature
100 1-hour cycles (forward) (all sizes) 142 °C (288 °F)
150 12 hour cycles (forward) (AB1, AB2, AB3 styles) 142 °C (288 °F)


Maximum Steaming Conditions Steaming Temperature
1.0 bard (15 psid) (forward) 125 °C (257 °F)
0.3 bard (4.3 psid) (forward) 142 °C (287 °F)
0.5 bard (7.3 psid) (reverse) 125 °C (257 °F)

4 For applications requiring autoclaving and sterlization, Pall recommends the use of Code 2 or Code 7 adaptors to ensure filter sealing after cooling. Cartridges should be cooled to system operating temperature prior to use. Data shown for forward steam flow also indicates autoclave resistance.

Removal Ratings


Fluid Performance6
Liquids 0.2 μm, sterile effluent7
Gases 0.003 micron particles in dry gas, aerosol removal of bacteria8, bacteria spores8, bacteriophage9. Also tested in accordance with ISO 8573-4 and test method ISO 12500-3:200910.

6 For further specific information, please request Pall’s Technical Performance Document for this filter.
7 Liquid challenged with Brevundimonas diminuta at >107 cfu/cm2 effective filtration area according to ASTM 838-05. Provides sterile effluent according to FDA Guidelines (2004).
8 Aerosol challenged with Brevundimonas diminuta and Bacillus subtilis spores.
9 Aerosol challenged with MS2 bacteriophage.
10 For further details, please contact Pall.

Typical Flow Rates5


Typical clean delta p per 127 mm (5 inch) cartridge, air at 20 °C (68 °F), with housing losses subtracted.


Typical clean delta p per 254 mm (10 inch) cartridge, air at 20 °C (68 °F), with housing losses subtracted.

5 For gases other than air and for multi-round cartridge installations, please contact Pall for proper sizing. Note that for sizing in oxygen-enriched applications, recommendations for sizing are described in USTR2311a and should be followed.
Type
Cartridges and Elements
Use
Filtration
Ordering Information
This information is a guide to the part number structure and possible options. For availability of specific options and housing details, please contact Pall.

Part Number: AB [Table 1] HTPFR [Table 2] W [Table 3]

Example Part Number: AB1HTPFR7WH4
See bold reference code in tables.

Table 1: Nominal Length


Code Length
05 127 mm (5")
1 254 mm (10")
2 508 mm (20")
3 762 mm (30")


Table 2: Adaptor


Code Description
211 SOE – single open end with flat closed end, 2 locking tabs and external 226 O-rings
7 SOE – single open end with fin end, 2 locking tabs and external 226 O-rings

11 AB05 configuration only

Table 3: O-ring Seal Material


Code Description
H4 Silicone Elastomer
J Ethylene Propylene Rubber
