Palltronic® Compact Touch MUX Integrity Test Instrument Extension

Increase Production Efficiency by Integrity Testing Multiple Filter Assemblies Simultaneously

The Palltronic Compact Touch MUX extension enables a single Palltronic Compact Touch integrity test device to perform a Pall Pressure Decay Test on up to four filter assemblies simultaneously.

The test unit is a small, lightweight, portable instrument weighing 7 kg (15.4 lbs.). Data input to the MUX Extension instrument is done via the Compact Touch integrity test device touchscreen with all essential information displayed. The integrity test unit stabilizes the test pressure and measures pressure decay for a defined time.

The test device is dust-proof and splash-proof in accordance with IP55 rating providing protection against severe laboratory and production conditions. The venting system includes external vent valves to prevent fluid contamination backing into the unit on completion of the filter integrity test.

The MUX extension reduces pressure hold test time of up to 4 identical filter assemblies by ≥50 %. By utilizing two units in combination with one Compact Touch up to 8 identical filter assemblies may be tested.

CE Declaration

The Palltronic Compact Touch MUX Integrity Test Instrument Extension is compliant to:

  • European Directive 2014/30/EU (formerly 2004/108/EC) – Electromagnetic Compatibility
  • European Directive 2014/95/EU (formerly 2006/95/EC) – Low Voltage Safety
  • European Directive 2011/65/EU – Restriction of Hazardous Substances (RoHS2)
  • European Directive 2012/19/EU – Waste Electrical and Electronic Equipment (WEEE)


* Required
Need Help?
Download Datasheet
Description

Increase Production Efficiency by Integrity Testing Multiple Filter Assemblies Simultaneously

The Palltronic Compact Touch MUX extension enables a single Palltronic Compact Touch integrity test device to perform a Pall Pressure Decay Test on up to four filter assemblies simultaneously.

The test unit is a small, lightweight, portable instrument weighing 7 kg (15.4 lbs.). Data input to the MUX Extension instrument is done via the Compact Touch integrity test device touchscreen with all essential information displayed. The integrity test unit stabilizes the test pressure and measures pressure decay for a defined time.

The test device is dust-proof and splash-proof in accordance with IP55 rating providing protection against severe laboratory and production conditions. The venting system includes external vent valves to prevent fluid contamination backing into the unit on completion of the filter integrity test.

The MUX extension reduces pressure hold test time of up to 4 identical filter assemblies by ≥50 %. By utilizing two units in combination with one Compact Touch up to 8 identical filter assemblies may be tested.

CE Declaration

The Palltronic Compact Touch MUX Integrity Test Instrument Extension is compliant to:

  • European Directive 2014/30/EU (formerly 2004/108/EC) – Electromagnetic Compatibility
  • European Directive 2014/95/EU (formerly 2006/95/EC) – Low Voltage Safety
  • European Directive 2011/65/EU – Restriction of Hazardous Substances (RoHS2)
  • European Directive 2012/19/EU – Waste Electrical and Electronic Equipment (WEEE)
Specifications

Physical Dimensions 250 (w) x 280 (h) x 220 (d) mm
(9.8” x 11” x 8.7”)
Weight Unit without casing 7 kg (15.4 lbs.)
Filter Tests Pressure Decay Test
Operating System Linux*
Test Program Storage Up to 100 programs
Test Result Storage Up to 1,000 tests
Languages Display and Input English, German, French, Spanish, Italian, Portuguese, Brazilian
Languages Display Only Chinese, Japanese, Russian

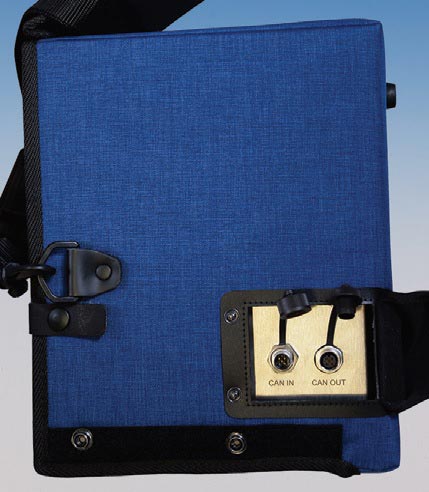

Communication Ports CAN bus for product extensions
Pressure Measurement Measuring Range 50 - 6000 mbar (0.73 – 87 psi)
Pressure Measurement Accuracy ± 0.5 % of full scale (6000 mbar)
Resolution 1 mbar (0.0145 psi)
Calibration Limits ± 0.33 % of full scale (6000 mbar)
Electrical Data Voltage automatically adjusted between
100 – 240 V AC
Input Frequency 50 Hz / 60 Hz
External Vent Valve 24 V DC
Monochrome Screen Size: diagonal 6.9 cm (2.7 in)
128 x 64 pixels Illuminated Background
Pneumatic Specifications Maximum Gas Supply Pressure:
8,000 mbar (116 psi)
Minimum Gas Supply Pressure:
1,000 mbar (14.5 psi) above test pressure
Test Pressure Range:
50 – 6,500 mbar (0.7 – 94.2 psi)
Pneumatic Connections Compressed Air Inlet: Male Stäubli* Nipple
RBE03.6150
Compressed Air Outlet: Female Stäubli
Coupling RBE03.2904
Vent: Hose connection 8 mm outer diameter
Operation and Storage Conditions Operating Temperature:
3 °C to +50 °C (+37 °F to +122 °F)
Storage Temperature:
-20 °C to +70 °C (-4 °F to +158 °F)
Humidity: < 95% rh (no condensation)
IP Rating IP55
ATEX This instrument is not suitable for use in ATEX regulated atmospheres.
Recycling Information Please visit the Pall website for information
on recycling: https://www.pall.com/en/
about-pall/corporate-sustainability/weeecompliance.
html

Ordering Information

Part Number Description
CT001-MUX
  • Compact Touch MUX extension unit
  • Mains adaptor with UK, UE, US and Aus/NZ plug
  • Carry Case
  • Red pressure line with male and female Stäubli connections
  • 4x blue pressure line and external vent valve with male and female Stäubli connections
  • USB flash drive with pre-loaded IFU English, German, French, Spanish, Italian, Portuguese, Brazilian, Chinese, Japanese, and Russian
  • Quick Start Guide
