9681 Series Filter Assemblies product photo Primary L

9681 Series Filter Assemblies

Features

  • Flows to 600 L/min (160 US gpm)
  • Pressures to 420 bard (6100 psid)
  • Port size 1 14 in. & 1 12 in.
  • Coralon™ filter medium pack
  • Out-to-in filter element flow path
Please Note:
The 9681 Series is a Preferred Product Line utilizing Coralon™ filter medium.   Please See Ordering Information for available options

All replacement filter elements, differential pressure indicators and sealkits remain available for this series. See ‘Ordering Information’ tab above for details of spares.


* Required
Need Help?
Description

Features

  • Flows to 600 L/min (160 US gpm)
  • Pressures to 420 bard (6100 psid)
  • Port size 1 14 in. & 1 12 in.
  • Coralon™ filter medium pack
  • Out-to-in filter element flow path
Please Note:
The 9681 Series is a Preferred Product Line utilizing Coralon™ filter medium.   Please See Ordering Information for available options

All replacement filter elements, differential pressure indicators and sealkits remain available for this series. See ‘Ordering Information’ tab above for details of spares.
Specifications

Maximum Acceptable Working Pressure:

450 Bar (6500 psi)

Fatigue Pressure Rating:

(NFPA/T2.6.1-1991 category B/90)
275 Bar (4000 psi)-Stainless steel indicators required above 3000 psi (207 bar) RFP

Typical Burst Pressure:

<1260 Bar (187,270 psi)

Temperature Range:

Nitrile seals -45°F to 225°F (-43°C to 107°C)
Fluorocarbon seals -20°F to 250°F (-29°C to 120°C)
140°F (60°C) maximum in HWCF or water-glycol fluids <

Dry Weights:

S Length – 12 kg (26 lbs)
T Length – 14.8 kg (33 lbs)
U Length – 17.5 kg (39 lbs)

Filter Element Collapse Pressure:


9601 – 207 bar (3000 psid)

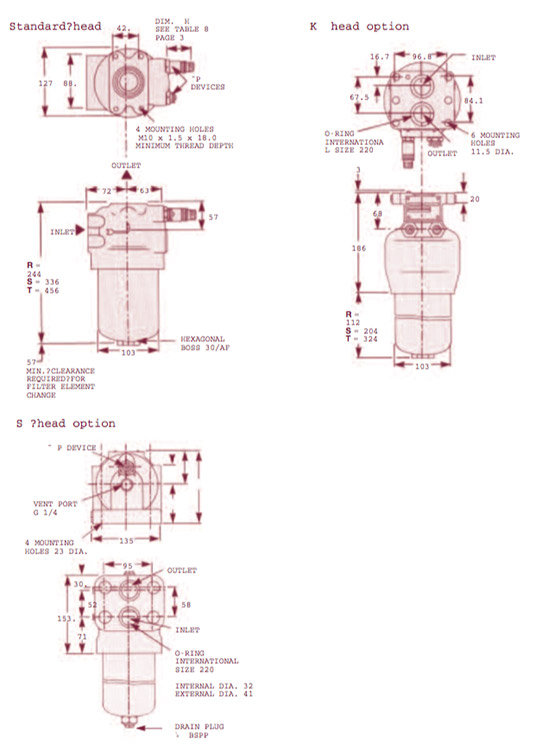

Dimensional Drawings

Performance

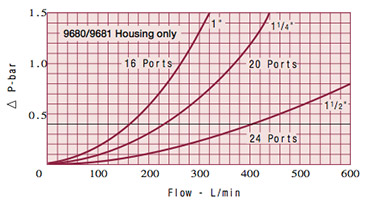

Housing pressure drop

Using fluid with s.g. 0.9 housing pressure drop is directly proportional with to specific gravity.



9601 Series Element ΔP factor (bar/L/min)


Length CP CT
4 in. 16.75 6.74
8 in. 8.49 3.41
13 in. 5.10 2.05
16 in. 3.87 1.55

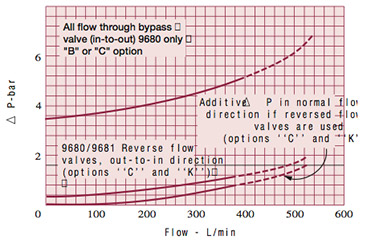

Bypass valve curves

Bypass valve pressure drop using fluid with s.g. 0.9. Valve pressure drop is directly proportional to fluid specific gravity.



Filter assembly clean pressure drop

=ΔP housing +ΔP element

Element pressure drop factor

Multiply flow rate byΔP factor/1000 to determine pressure drop (bar) with fluid at 30 cSt 0.9 S.G. Correct for other viscosities and specific gravity multiplying new viscosity in cSt/30 x new S.G./0.9.

Sample ΔP calculation

HH9680C20KNTBM at 200 L/min flow rate using a hydraulic fluid at 50 cSt and specific gravity (s.g.) 1.2.

ΔP assembly
= ΔP housing + ΔP element
= (0.3 x 1.2/0.9)
+ ((200 x 1.41/1000) x 50/30 x 1.2/0.9)
= 0.4 (housing) + 0.63 (element)
Type
Assemblies, Filter Housings
Use
Filtration, Polishing, Prefiltration, Removal
Ordering Information
Please select only from the following list of standard filter housing options.

Available 9681 Series Options


9680/1 Series

HZ9681C20 SW1
HZ9681G20 SW1
HZ9681C20 TW1
HZ9681C24 SW1

HZ9681C20 UW1
HZ9681C24 UW1
HZ9681G20 UW1
HZ9681K20 SW1
HZ9681K20 TW1
HZ9681K20 UW1
HZ9681S20 SW1
HZ9681S20 UW1



The specification of each filter housing part number is outlined in the tables below.

Assembly P/N: H

968


Table1



Table2
Table3
Table4
Table5
Table6
Table7
Table8


Element P/N:

HC

960

 F











Table2



Table5


Table6


Table1






Seal Kit P/N:

H9600SK







Table 1



Table 1. Seal Type


Code Seal Material
H Nitrile
Z Flourocarbon


Table 2. Element Collapse Rating


Code Rating
1 210 bar diff. for housings without bypass


Table 3.Port Type


Code Option
C BSP thread
G SAE split flange with metric holding bolts.
High pressure 420 bar.
K Top manifold mounting
S Side manifold mounting


Table 4. Port Size


Code Option Aailable for
20 1 14 in. Port type C, G, K, S
24 1 12 in. Port type C


Table 5. Filter Element


Medium Code Rating (μm)
x(c)>1000)*
9601 CP 5
CT 15


Table 6. Length


Assembly Code Element Code Dry Wt. Kg
9681
S 8 12
T 13 14.8
U 16 17.5


Table 7. Bypass Option

Section 3 (At least one Differential Pressure Indicator or ‘B’ type blanking plug must be ordered)

Differential Pressure Indicator P/N: RC [Table 6]  Z 091 Z [Table 7]

Note: If no differential pressure indicator is selected, ‘B’ type blanking plug (P/N HC9000A104Z) must be ordered separately and fitted to replace the plastic shipping plug.

Note: Z indicates fluorocarbon seals are standard. Other options are available; contact Pall.

Table 7A: Indicator Options

For applications with operating conditions less than 200 bar (3000 psi)

Code Brass Option indicator
A218M Electrical switch (SPDT) with Hirschmann connector
A218R Electrical switch (SPDT) with Hirschmann connector with Red and Green LED indicators
A219D Visual indicator


For applications with operating conditions greater than 200 bar (3000 psi)

Code Stainless Steel indicator
778NZ Visual filter with thermal lockout
861CZ Electrical Switch (SPDT) with 6” leads
861CZ* Electrical switch (SPDT) with Hirschmann connector
771BZ Electrical switch (SPDT) with 3-pin

Other options available; contact Pall.
* Requires YM suffix after SS code from Table 7B.

Table 7B: Differential Pressure Indicator Material


Code Pressure Setting
Omit Brass Indicator: use at operating pressures < 200 bar (3000 psi)
SS Stainless Steel Indicator: recommended for high pressure cycle applications with pressures > 200 bar (3000 psi)

Other setting options are available; contact Pall.

Table 8.Differential Pressure Device Options


Code Indicator ‘H’ Dim’n
1 Machined Indicator port with shipping plug
B Bleed plug and seal in place of ?P indicator. 8mm
D Visual indicator. 23mm
E Visual indicator in stainless steel. 23mm
M Electrical switch–SPDT.
Automatic reset. Hirschmann type
plug & socket. IEC class IP65.
78mm
P Visual indicator with thermal lockout. 23mm
R Electrical switch–SPDT with neon light indicator. Hirschmann type plug & socket. 90mm
W IEC class IP65.
Electrical switch–SPDT for
47mm


Note: Stainless steel indicators are required for fatigue applications above 275 bar. Refer to PMEDELTAP for details.
Application
Auto LOH for Stamping, Auto LOH-Filling Lines, Mining Equipment Gear Case, Mining Equipment Hydraulic Fluid, Mining Euqipment Lube Oil - on & off board, Heavy Hydraulic, Heavy Lubrication, Medium & Light Hydraulic, Medium & Light Lubrication, Coolants / Bearing Lubrication, Drives Gear Box + Roll Housing, Forging / Extrusion, Gear Box / Bearing, Gear Box / Morgoil, Material Directional Control, Material Handling, Non Contact, Medium & Light Hydraulic, Medium & Light Lubrication
Segment
Automotive
General Industrial
Industrial & Mobile OEM
Mining
Primary Metals
