Profile® III Filters

Profile® III Filters product photo Primary L

Profile® III is the latest evolution in Pall’s pioneering work in melt-blown products. 30 nm Profile® III pushes boundaries and capitalizes on our proprietary fine fiber technology. It sets market standards in microdefect and yield performances at next generation ceria and silica CMP processes.

Features & Benefits

  • Built-in pre-filtration microstructure retains large particles and classifies fluids with abrasives, pigments, or other active dispersion particles as fine as 10 nm.
  • Membrane filter-like efficiency without the pressure drop penalty—up to 50% reduction from legacy products—and that results in longer service life.
  • The latest 30 nm Profile® III is manufacturing-proven and reduces micro-scratches by > 50% without adversely impacting slurry properties or productivity.
Read More


Contact Us
* Required
AB2W00325J product photo
Product ID: AB2W00325J
Product ID
Unit of Measure
1/EA
Min Order Qty
1
AB1W00325J product photo
Product ID: AB1W00325J
Product ID
Unit of Measure
1/EA
Min Order Qty
1
MCY1001W003J 254 product photo
Product ID: MCY1001W003J254
Product ID
Unit of Measure
1/EA
Min Order Qty
1

Datasheets

Download: Chinese | English

Profile® III is the latest evolution in Pall’s pioneering work in melt-blown products. 30 nm Profile® III pushes boundaries and capitalizes on our proprietary fine fiber technology. It sets market standards in microdefect and yield performances at next generation ceria and silica CMP processes.

Features & Benefits

  • Built-in pre-filtration microstructure retains large particles and classifies fluids with abrasives, pigments, or other active dispersion particles as fine as 10 nm.
  • Membrane filter-like efficiency without the pressure drop penalty—up to 50% reduction from legacy products—and that results in longer service life.
  • The latest 30 nm Profile® III is manufacturing-proven and reduces micro-scratches by > 50% without adversely impacting slurry properties or productivity.

Materials of Construction

Kleen-Change® Capsule Cartridge
Configurations Solaris* Retrofit Pall Manifold 3/8" Flare AB Style (O-ring Seal) MCY Style (Gasket Seal)
Filter Medium Polypropylene Polypropylene
Capsule Components Polypropylene -
Core Polypropylene Polypropylene
O-Rings EPDM EPDM

Code 25 222 double O-ring flat end

Code 7 226 double O-ring bomb fin
Gaskets (MCY Style Only) EPDM
* Solaris is a trademark of Integris
Removal Rating 30 nm (0.03 μm), 50 nm (0.05 μm), 0.3 μm, 1.0 μm
Maximum Operating Temperature 82 ºC / 180 ºF
Maximum Differential Pressure 38 °C / 100 °F 82 °C / 180 °F
Maximum Forward Differential Pressure 82 °C / 180 °F
Maximum Operating Pressure 0.34 MPaG @ 20 °C / 50 psig @ 68 °F

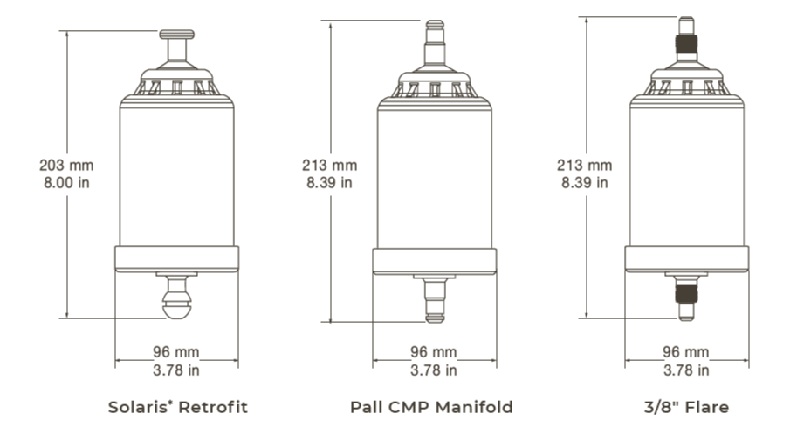

Capsule Configurations and Dimensions

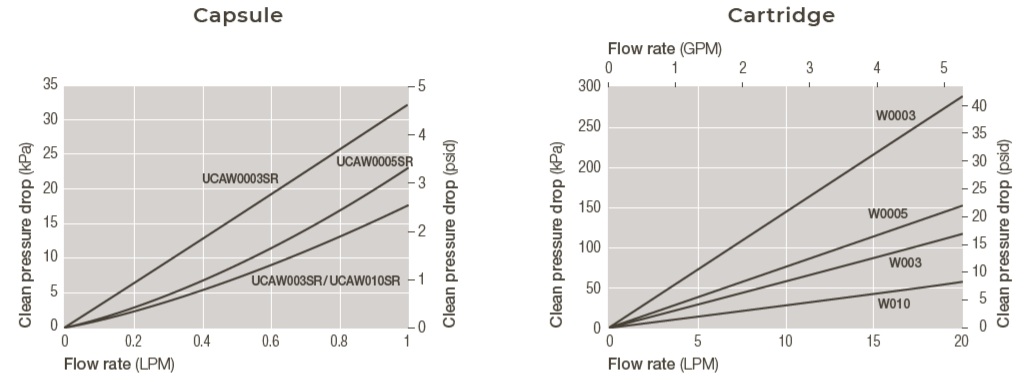

Typical Flow Charcteristics – 1 cP fluid, 20 ºC

Filter Cartridges
Filtration

Capsule: UCA W [Table 2][Table 3]

Cartridge : AB [Table 1] W [Table 2] 25J
AB [Table 1] W [Table 2] 7J
MCY100 [Table 1] W [Table 2] J254

Table 1

Code Cartridge Nominal Length Cartridge Nominal Diameter
1 254 mm / 10 inch 70 mm / 2.75 inch
2 508 mm / 20 inch 70 mm / 2.75 inch
3 762 mm / 30 inch (AB type only) 70 mm / 2.75 inch

Table 2

Code Removal Ratings
010 1.0 μm
003 0.3 μm
0005 50 nm (0.05 μm)
0003 30 nm (0.03 μm)

Table 3

Code Configuration
SR Solaris* Retrofit
F06 3/8” Flare inlet / outlet
TJ Pall CMP manifold
