Fluorodyne® Filters

The Fluorodyne filter has been developed to meet the stringent requirements of today's high purity DI water applications.

Rated 0.2 μm, 0.1 μm and 40 nm, Fluorodyne filters offer ready wettability and broad chemical compatibility. All Fluorodyne filters are constructed of a unique modified PVDF membrane, providing superior bacteria and particle removal efficiency in demanding environments.
  • Excellent particle removal efficiency
  • Three removal ratings available
  • Many configurations
  • Manufactured in a cleanroom environment
  • No prewetting required
  • 100% integrity tested


* Required
Need Help?
Download Datasheet
Description
The Fluorodyne filter has been developed to meet the stringent requirements of today's high purity DI water applications.

Rated 0.2 μm, 0.1 μm and 40 nm, Fluorodyne filters offer ready wettability and broad chemical compatibility. All Fluorodyne filters are constructed of a unique modified PVDF membrane, providing superior bacteria and particle removal efficiency in demanding environments.
  • Excellent particle removal efficiency
  • Three removal ratings available
  • Many configurations
  • Manufactured in a cleanroom environment
  • No prewetting required
  • 100% integrity tested
Specifications

Materials of Construction


Components Materials
Filter Medium Hydrophilic PVDF
Support and Drainage Polypropylene
Core and Cage Polypropylene
End Caps Polypropylene
O-ring Options Acid-proof Fluoroelastomer, EPDM, Silicone, FEP Encapsulated Fluoroelastomer
Sealing Methods Melt seal


Removal Rating and Operating Conditions


Removal Ratings 0.2 μm, 0.1 μm, 40 nm
Nominal Filter Areas 10" : 7 ft2 / 254 mm : 0.7 m2
20" : 14 ft2 / 508 mm : 1.3 m2
30" : 21 ft2 / 762 mm : 2.0 m2
40" : 28 ft2 / 1016 mm : 2.6 m2
Maximum Operating Temperature 70˚C1 / 158 ˚F
Maximum Forward
Differential Pressure
0.55 MPa @ 50 ˚C / 80 psid @ 122 ˚F
0.34 MPa @ 70 ˚C / 50 psid @ 158 ˚F

1 Only for deoxygenated water systems and for aqueous liquids not containing alkalis.


Nominal Length 254 mm / 10 in 508 mm / 20 in 762 mm / 30 in 1016 mm / 40 in
Nominal Filter Areas 0.7 m2 / 7 ft2 1.3 m2 / 14 ft2 2.0 m2 / 21 ft2 2.6 m2 / 28 ft2

Performance

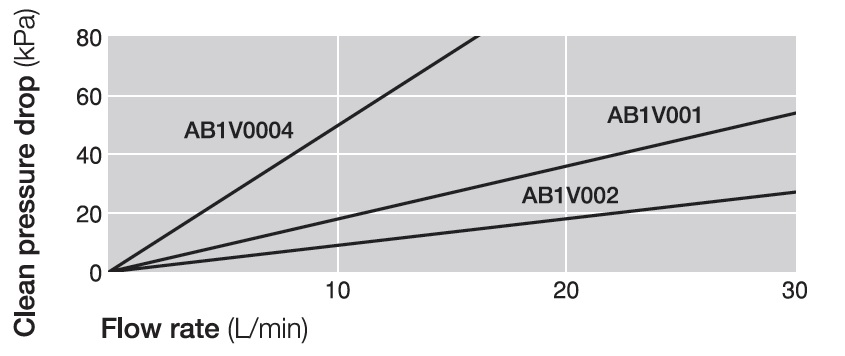

Pressure Drop vs. Liquid Flow Rate (Water, 20℃)

Cartridge Style AB1
Type
Cartridges and Elements
Use
Filtration, Purification
Ordering Information

Part Numbers / Ordering Information


AB [1] V [2] [3] EY [4]

Table 1


Code Nominal Cartridge Length
1 254 mm / 10 in
2 508 mm / 20 in
3 762 mm / 30 in
4 1016 mm / 40 in


Table 2


Code Removal Ratings
002 0.2 μm
001 0.1 μm
0004 40 nm


Table 3


Code O-ring Specifications Features
3 AS568A-222 222 double O-ring
Flat End
7 AS568A-226 226 double O-ring
Bayonet lock / finned end
8 AS568A-222 222 double O-ring
Finned End


Table 4


Code O-ring Materials
H1 FEP Encapsulated Fluoroelastomer
H4 Silicone
HF Acid-proof Fluoroelastomer
J EPDM


Representative example part numbers


AB1V0023EYH4
AB2V0023EYH4
AB2V0028EYH4
AB3V0027EYH4
AB3V0028EYH4
      AB1V0013EYH4
AB2V0013EYH4
AB2V0018EYH4
AB3V0017EYH4
AB3V0018EYH4
      AB1V00043EYH4
AB2V00043EYH4
AB2V00048EYH4
AB3V00047EYH4
AB3V00048EYH4
AB4V00048EYH4
Application
Ultrapure water
