The use of encapsulated filters in the pharmaceutical industry is becoming more widespread due to the significant advantages they provide, including reduced operator exposure, reduced cleaning, increased yield and easier handling.
In applications producing and using hazardous or toxic materials such as cytotoxic drugs, catalysts or powdered activated carbon (PAC), Pall SUPRAcap 200 modules offer increased operator protection and simplified process handling. Pall SUPRAcap 200 modules are the first encapsulated, disposable depth filter modules for medium to large scale process filtration.
Applications for Pall SUPRAcap 200 modules include:
The wide portfolio of Pall depth filter media and grades, together with our proven experience, helps you to find the optimal solution to your individual filtration application both quickly and efficiently.

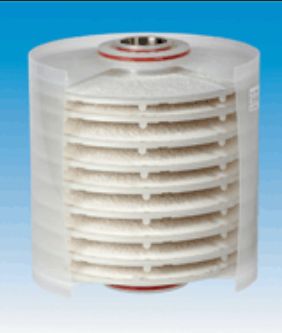

Pall SUPRAcap 200 modules are encapsulated in polypropylene and installed in a specially constructed housing so that only the inlet and outlet socket and the ejection plates between the stacked modules are in contact with product in the filter housing. These housing parts are removable and can be washed separately so that the cleaning efforts are dramatically reduced, compared to standard depth filter module applications.
Pall SUPRAcap 200 encapsulated modules have been engineered to meet industry requirements, such as steam in place sterilization and low extractables. They offer high flow rates and throughputs and are designed to have minimal hold-up volumes ensuring maximum product recovery.
Further information is available on Pall's range of Filter Modules and Capsules with Seitz Depth Filter Media
| Maximum Operating Temperature | 90 oC |
| Maximum Operating Pressure | 6 barg (87 psig) at 60 oC 3 barg (43psig) at 90 oC |
* With compatible fluids, which do not soften, swell or adversely affect the products or its materials of construction.
| Steam in Place | 125 oC for 20 minutes |
| SUPRAcap 200 capsule | Polypropylene components |
| O-rings | Silicone elastomer FEP encapsulated silicone EPDM eleastomer |
| Nominal Total Length | 324 mm (12.7 in.) |
| Nominal Total Diameter | 298 mm (11.7 in.) |
| Code | Depth Filter Type | Typical Water Permeability in L/min/m2 @ Δp 1 bar (14.5 psid) |
Nominal Retention Rating in µm | Ash Content in % | Endotoxin Level in EU/mL before Rinsing |
|---|---|---|---|---|---|
| PDD1 | PDD1 | 25 | 0.1-0.85 | 52 | <0.06 |
| PDE2 | PDE2 | 35 | 0.2-3.5 | 47 | <0.06 |
| PDH4 | PDH4 | 93 | 0.5-15.0 | 45 | <0.06 |
| PDK5 | PDK5 | 151 | 1.5-20.0 | 45 | <0.06 |
| PEKS | EKSP | 29 | 0.1-0.3 | 58 | <0.06 |
| PEKM | EKMP | 41 | 0.2-0.5 | 48 | <0.06 |
| PEK1 | SUPRA EK1P | 64 | 0.2-0.5 | 47 | <0.06 |
| P050 | KS 50P | 93 | 0.4-0.8 | 46 | <0.06 |
| P080 | SUPRA 80P | 159 | 1.0-3.0 | 49 | <0.06 |
| P100 | K100P | 149 | 1.0-3.0 | 45 | <0.06 |
| P200 | K200P | 217 | 3.0-6.0 | 43 | <0.06 |
| P250 | K250P | 535 | 4.0-9.0 | 44 | <0.06 |
| P700 | K700P | 935 | 6.0-15.0 | 45 | <0.06 |
| P900 | K900P | 1980 | 8.0-20.0 | 45 | <0.06 |
| B010 | BIO 10 | 30 | 0.2-0.4 | <1 | <0.06 |
| B020 | BIO 20 | 75 | 0.4-1.0 | <1 | <0.06 |
| XEK1 | EK1 | 41 | 0.2-0.4 | 51 | NA |
| XEK | EK | 68 | 0.3-0.5 | 46 | NA |
| X050 | KS50 | 93 | 0.4-0.8 | 46 | NA |
| X080 | KS80 | 113 | 0.6-2.0 | 46 | NA |
| X100 | K100 | 146 | 1.0-3.0 | 46 | NA |
| X150 | K150 | 185 | 2.5-4.0 | 46 | NA |
| X200 | K200 | 213 | 3.0-6.0 | 46 | NA |
| X250 | K250 | 510 | 4.0-9.0 | 46 | NA |
| X300 | K300 | 785 | 5.0-12.0 | 46 | NA |
| X700 | K700 | 925 | 6.0-15.0 | 46 | NA |
| X900 | K900 | 1700 | 8.0-20.0 | 46 | NA |
| T950 | T950 | 1700 | 8.0-20.0 | 40 | NA |
| T100 | T1000 | 3400 | 10-25 | 35 | NA |
| T150 | T1500 | 7285 | 11-30 | 33 | NA |
| T210 | T2100 | 10200 | 13-35 | 13 | NA |
| T260 | T2600 | 10200 | 15-40 | <1 | NA |
| T350 | T3500 | 12750 | 19-50 | 13 | NA |
| T550 | T5500 | 25500 | 25-70 | <1 | NA |
NA - Not Applicable as endotoxin content is not a measured criteria for these sheets.

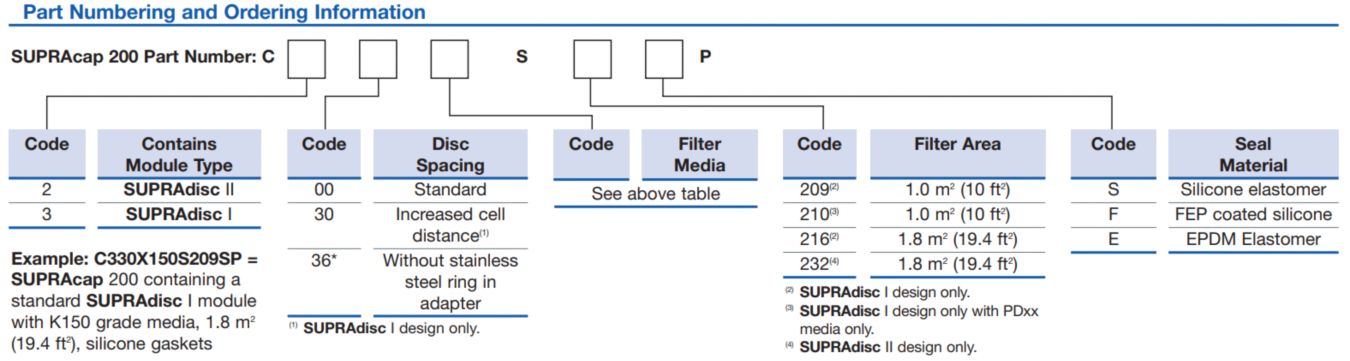

SUPRAcap 200 Depth Filter Modules
Please talk to Pall representative regarding your requirements so we can provide a suitable product for your application.
