Supracap™ 50 Depth Filter Capsules



• Cell harvesting
• Clarification of fermentation broth
• Antibiotics
• Serum
• Blood products
• Vaccines
• Plant extracts



Pall UpScale^SM Program



From drug discovery and basic research, through process development and production, Pall Corporation is the single source for all your filtration and separation needs. Our UpScale program provides you with the scalable products and support you need to bring new products to market faster.



Pall Activated Carbon Filters



Supracap 50 capsules are also available as part of the scalable Pall activated carbon filter range, incorporating Seitz^® AKS filter media in 9 different grades of carbon.



Further Information



Further information is available on Pall's range of Filter Modules and Capsules with Seitz Depth Filter Media and also the Pall Supracap Depth Filter Capsules range of products.



Ca	Mg	Fe	Cu	Al	Ni
<0.5 ppm	< 0.1 ppm	< 0.1 ppm	< 0.1 ppm	< 50 ppb	< 10 ppb



¹ The tests were carried out according to the methods of the Technical/Analytical Work Group within the European Depth Filter Association, or in accordance with in-house test methods.





Materials of Constructions



Media	Cellulose base 2
Capsule	Polypropylene
Vent	Polypropylene
Sealing technology	Thermal bonding

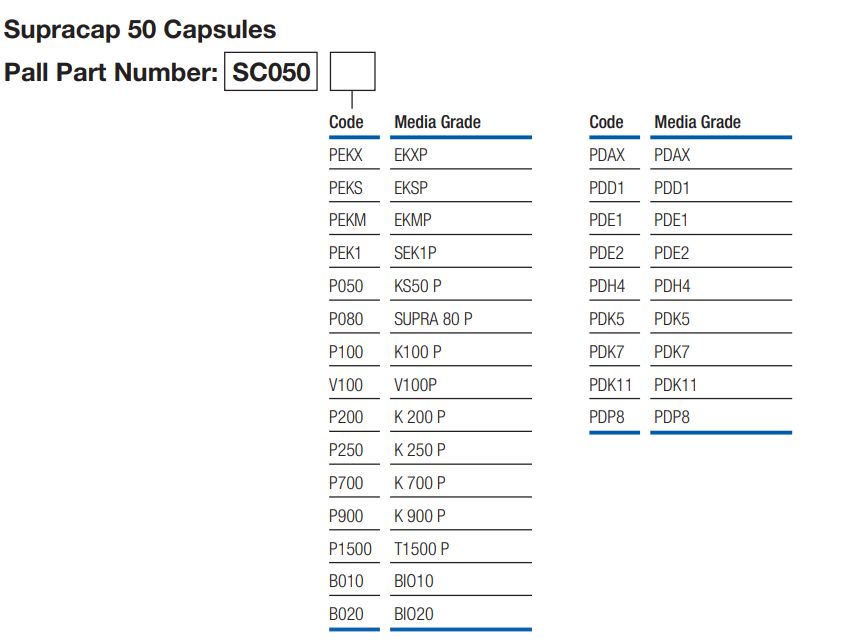

² See ordering information





Operating Parameters ³



Maximum operating pressure and temperature	3 bar (44 psi) at 40 oC
Maximum differential pressure	1.5 bar (22 psi)



³ In compatible fluis which do not soften, swell or adversely affect the filter or its materials of construction





Sterilization



Autoclaving at 125 oC

1 cycle x 30 minutes

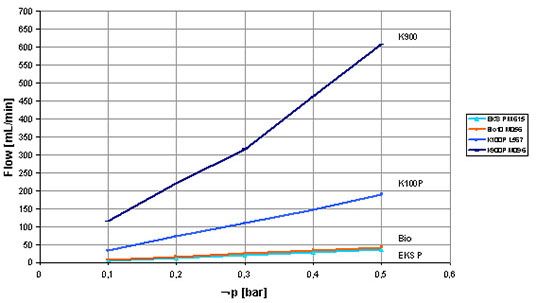

Typical Flow Rates

Flow dp HP series













Technical Specification



Code4	Depth Filter Type	Typical Water Permeability in L/min/m2 @ Δp 1 bar (14.5 psid)	Nominal Retention Rating in µm	Ash Content in %	Endotoxin Level in EU/mL before Rinsing
PDAX	PDAX	15	0.05 – 0.3	60	< 0.06
PDD1	PDD1	25	0.1-0.85	52	<0.06
PDE1	PDE1	27	0.1 – 3.0	52	< 0.06
PDE2	PDE2	35	0.2-3.5	47	<0.06
PDH4	PDH4	93	0.5-15.0	45	<0.06
PDK5	PDK5	151	1.5-20.0	45	<0.06
PDK7	PDK7	463	3 - 20	45	<0.06
PDP8	PDP8	1010	6 - 30	39	<0.06
PDK11	PDK11	173	2 - 20	49	<0.06
PEKX	EKXP	25	0.05 – 0.2	62	< 0.06
PEKS	EKSP	29	0.1-0.3	58	<0.06
PEKM	EKMP	41	0.2-0.5	48	<0.06
PEK1	SUPRA EK1P	64	0.2-0.5	47	<0.06
P050	KS 50P	93	0.4-0.8	46	<0.06
P080	SUPRA 80P	159	1.0-3.0	49	<0.06
P100	K100P	149	1.0-3.0	45	<0.06
P200	K200P	217	3.0-6.0	43	<0.06
P250	K250P	535	4.0-9.0	44	<0.06
P700	K700P	935	6.0-15.0	45	<0.06
P900	K900P	1980	8.0-20.0	45	<0.06
B010	BIO 10	30	0.2-0.4	<1	<0.06
B020	BIO 20	75	0.4-1.0	<1	<0.06
V100	V100 P	173	2-4	53	<0.06

NA - Not Applicable as endotoxin content is not a measured criteria for these sheets
⁴ Other grades available on request



Dual-Layer Filter Media Grade Combinations



Media Grade Codes for Stax™, Supracap™ and Supradisc™ Modules



A dual layer media grade is a combination of two single layer media grades. The media grade code starts with P (Pharmaceutical Grade) followed by D (Dual layer) and the appropriate dual media combination ID. For generating a dual media combination ID, the appropriate top sheet grade letter (columns) is combined with the bottom sheet grade number or “x” (lines).

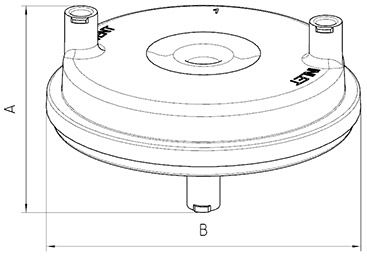

A	Supracap 50 single layer Supracap 50 HP	42 mm (1.65 in.) 52 mm (2.05 in.)
B	64 mm (2.52 in.)





Typical Filtration Area



22 cm2 (3.41 in.2)





Connections



Venting, inlet and outlet

Luer-lock
