This product is currently not available. Please contact us for more information.
The Supradisc module design concept combines the advantages of conventional depth filter sheets with the positive features of enclosed filters.
Seitz® depth filter sheets have been used for years in a vast array of applications using a range of equipment. With their exceptional mechanical strength they can be incorporated into Supradisc modules and installed into enclosed filter housings. This arrangement reduces cleaning and cleaning validation, as well as simplifies installation making it easier to handle and dispose of the filters after use. Each module consists of three major components:
These components can then be broken down further to better understand the robust construction of Pall® Supradisc modules. Individual filter cells are made from the joining of two Seitz depth filter sheets and using an injection molding process to seal the edges of the filter sheets to create a filter cell. A drainage plate is placed between each filter sheet prior to this process to reduce flow resistance and to improve flow distribution over the entire surface area of the filter sheets. Up to 21 filter cells can be stacked on a tubular core, compressed and joined to form a unit. This design results in a reliable sealing between the filter cells, and provides the structural robustness necessary to prevent product failure or process bypass situations during operation.
This product is currently not available. Please contact us for more information.
The Supradisc module design concept combines the advantages of conventional depth filter sheets with the positive features of enclosed filters.
Seitz® depth filter sheets have been used for years in a vast array of applications using a range of equipment. With their exceptional mechanical strength they can be incorporated into Supradisc modules and installed into enclosed filter housings. This arrangement reduces cleaning and cleaning validation, as well as simplifies installation making it easier to handle and dispose of the filters after use. Each module consists of three major components:
These components can then be broken down further to better understand the robust construction of Pall® Supradisc modules. Individual filter cells are made from the joining of two Seitz depth filter sheets and using an injection molding process to seal the edges of the filter sheets to create a filter cell. A drainage plate is placed between each filter sheet prior to this process to reduce flow resistance and to improve flow distribution over the entire surface area of the filter sheets. Up to 21 filter cells can be stacked on a tubular core, compressed and joined to form a unit. This design results in a reliable sealing between the filter cells, and provides the structural robustness necessary to prevent product failure or process bypass situations during operation.
Almost all grades of Seitz depth filter sheets that are available in flat sheet format are also available in Supradisc modules. Due to their excellent mechanical strength, these sheets can readily be incorporated into modules.
The Supradisc module adapter has two o-rings and a bayonet lock, a concept successfully implemented by the biopharmaceutical industry for filter cartridges.
Consequently, Supradisc modules can be installed quickly and easily into filter housings accepting this style adapter. Supradisc modules are also available with a flat gasket style adapter.
The filter media meet the specifications set forth in the US Code of Federal Regulations Title 21, parts 177.2260 e, f, g, h, i, j, k, l, the materials for all polypropylene plastic components are listed in the US Code of Federal Regulations Title 21, part 177.1520.
With regard to food law conformity, the manufacture of depth filter sheets is also subject to ongoing analysis by the German ISEGA Forschungs– und Untersuchungsanstalt mbH, Aschaffenburg.
For best possible results and maximum reliability, Pall recommends performing filter evaluations utilizing your process and process conditions. Pall specialists can provide valuable assistance, either at your facility or in our SLS (Scientific and Laboratory Services) laboratories. Pall offers hands-on assistance and places its extensive technical resources at your disposal in the form of worldwide technical advice, including cost-reduction programs, process review and problem solving.
Further information is available on Pall's range of Filter Modules and Capsules with Seitz Depth Filter Media.

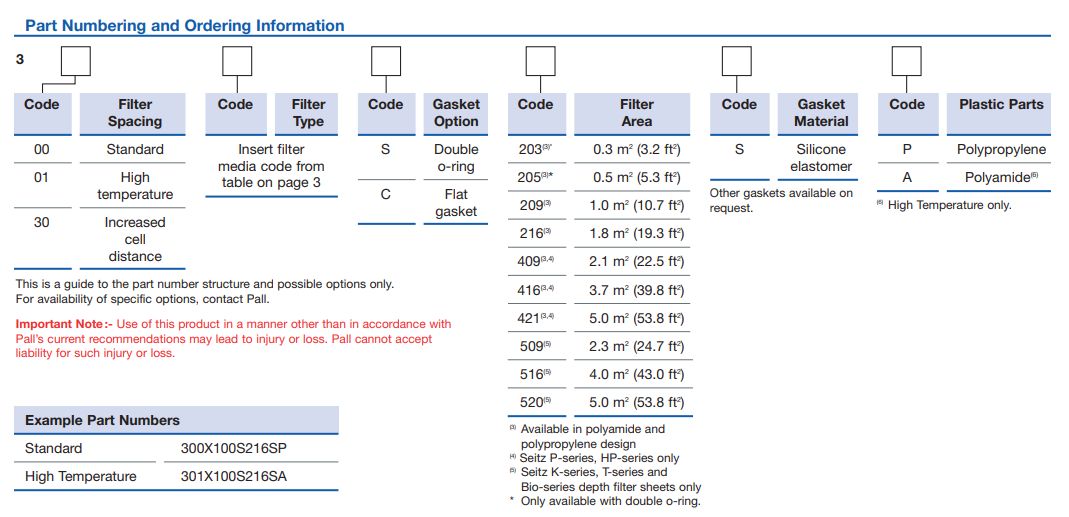

Product | Filter area in m2 | Filter area in ft2 | Typical filtered volume (L) |
---|---|---|---|
SUPRAdisc 203 | 0.30 | 3.2 | > 15 |
SUPRAdisc 205 | 0.50 | 5.3 | > 15 |
SUPRAdisc 209 | 1.00 | 10.7 | > 50 |
SUPRAdisc 216 | 1.80 | 19.3 | > 50 |
SUPRAdisc 409 | 2.10 | 23 | > 100 |
SUPRAdisc 416 | 3.70 | 40 | > 100 |
SUPRAdisc 421 | 5.00 | 54 | > 100 |
SUPRAdisc 509 | 2.30 | 24.7 | > 100 |
SUPRAdisc 516 | 4.00 | 43.0 | > 100 |
SUPRAdisc 520 | 5.00 | 53.8 | > 100 |
Code | Depth Filter Type | Typical Water Permeability in L/min/m2 @ Δp 1 bar (14.5 psid) |
Nominal Retention Rating in µm | Ash Content in % | Endotoxin Level in EU/mL before Rinsing |
---|---|---|---|---|---|
PEKS | EKSP | 29 | 0.1-0.3 | 58 | <0.06 |
PEKM | EKMP | 41 | 0.2-0.5 | 48 | <0.06 |
PEK1 | SUPRA EK1P | 64 | 0.2-0.5 | 47 | <0.06 |
P050 | KS 50P | 93 | 0.4-0.8 | 46 | <0.06 |
P080 | SUPRA 80P | 159 | 1.0-3.0 | 49 | <0.06 |
P100 | K100P | 149 | 1.0-3.0 | 45 | <0.06 |
P200 | K200P | 217 | 3.0-6.0 | 43 | <0.06 |
P250 | K250P | 535 | 4.0-9.0 | 44 | <0.06 |
P700 | K700P | 935 | 6.0-15.0 | 45 | <0.06 |
P900 | K900P | 1980 | 8.0-20.0 | 45 | <0.06 |
B010 | BIO 10 | 30 | 0.2-0.4 | <1 | <0.06 |
B020 | BIO 20 | 75 | 0.4-1.0 | <1 | <0.06 |
XEK1 | EK1 | 41 | 0.2-0.4 | 51 | NA |
XEK | EK | 68 | 0.3-0.5 | 46 | NA |
X050 | KS50 | 93 | 0.4-0.8 | 46 | NA |
X080 | KS80 | 113 | 0.6-2.0 | 46 | NA |
X100 | K100 | 146 | 1.0-3.0 | 46 | NA |
X150 | K150 | 185 | 2.5-4.0 | 46 | NA |
X200 | K200 | 213 | 3.0-6.0 | 46 | NA |
X250 | K250 | 510 | 4.0-9.0 | 46 | NA |
X300 | K300 | 785 | 5.0-12.0 | 46 | NA |
X700 | K700 | 925 | 6.0-15.0 | 46 | NA |
X900 | K900 | 1700 | 8.0-20.0 | 46 | NA |
T950 | T950 | 1700 | 8.0-20.0 | 40 | NA |
T100 | T1000 | 3400 | 10-25 | 35 | NA |
T150 | T1500 | 7285 | 11-30 | 33 | NA |
T210 | T2100 | 10200 | 13-35 | 13 | NA |
T260 | T2600 | 10200 | 15-40 | <1 | NA |
T350 | T3500 | 12750 | 19-50 | 13 | NA |
T550 | T5500 | 25500 | 25-70 | <1 | NA |
NA - Not Applicable as endotoxin content is not a measured criteria for these sheets.
Maximum Operating Temperature | 80 oC in Polypropylene design 160 oC in Polyamide design |
Maximum Operating Pressure | 2.4 bard (35 psid) |
1 With compatible fluids, which do not soften, swell or adversely affect the products or its material of construction.
SUPRAdisc Components | Polypropylene Polyamide (Only high temperature version) |
O-rings | Silicone elastomer |
All plastic components used in the construction meet the specification for Biological Reactivity test in vivo for Class VI plastics (121 °C) as described in the current United States Pharmacopoeia (USP).
All SUPRAdisc modules and all their components are fully traceable by serial number.
Steam in place | 125 °C for 30 minutes at 0.3 bard (43 psid) maximum |
Nominal Total Length Double-O-ring | 332 mm (13.1 in.) |
Flat Gasket | 272 mm (10.7 in.) |
Nominal Diameters | 284 mm (12 in.) for ordering codes 203, 205, 209 and 216 in polypropylene and polyamide designs 410 mm (16.1 in.) for ordering codes 409, 416 and 421 in polyamide design 413 mm (16.3 in.) for ordering codes 509, 516 and 520 in polypropylene design |
