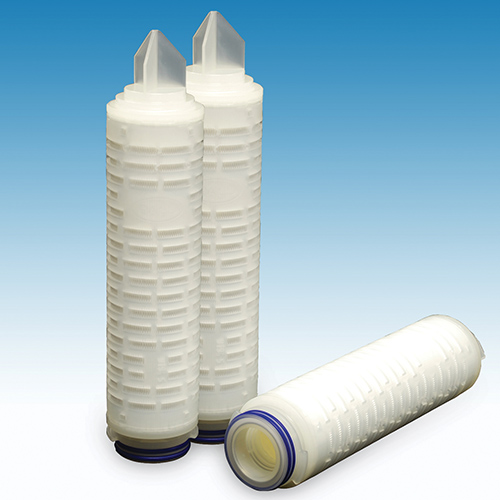

PREcart PP II Pleated Depth Filter Cartridges

High-Performance Pleated Depth Filters for Particle Removal in Food and Beverage Applications

The PREcart PP II conventional, fan pleated depth filter cartridge is ideal for applications requiring excellent particle removal while effectively prolonging the life of downstream final filters. The highly stable media structure also offers consistent and excellent filtrate quality.

Order Products

PREcart PP II Filter Cartridges, 2 µm, 30 in, Silicone Elastomer, 499A120W073SP

Product ID: B12437
Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
2 µm
Membrane Material
Polypropylene
Cartridge Length (Imperial)
30 in
Cartridge Length (Metric)
762 mm
Cartridge Length (Metric)
76.2 cm
Gasket / O-Ring Material
Silicone Elastomer
See All Attributes

PREcart PP II Filter Cartridges, 1 µm, 30 in, Silicone Elastomer, 499A110W083SP

Product ID: B14401
Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
1 µm
Membrane Material
Polypropylene
Cartridge Length (Imperial)
30 in
Cartridge Length (Metric)
762 mm
Cartridge Length (Metric)
76.2 cm
Gasket / O-Ring Material
Silicone Elastomer
See All Attributes

Description

Why choose PREcart PP II pleated depth filter cartridges?

These cartridges are designed to meet typical food and beverage production cycles' high mechanical resistance and compatibility requirements including filtration, sanitization, regeneration, and steam sterilization.



Additional benefits include:



  • Superior backflush capability for cartridge regeneration
  • Resistance to multiple in situ steam sterilization and hot water sanitization cycles
  • Broad chemical compatibility
  • Food contact compliance and safety

Applications/Use

Food & Beverage:

  • Beer - Prefiltration
  • Distilled Spirits – Activated carbon removal and guard filtration
  • Water and Alcohol-free beverages – Particle removal
  • Wine – First step or single-step prefiltration

Specifications



Quality

  • Cartridges produced in a controlled environment
  • Manufactured within a Quality Manufacturing System certified to ISO 9001:2015



Food Contact Compliance

Please refer to the Pall website for a Declaration of Compliance to specific National Legislation and/or Regional Regulatory requirements for food contact use.



Technical Information

The technical information provided is based on controlled laboratory tests done on typical production filters at the conditions described unless otherwise indicated. Actual operating conditions may affect the filter's performance.



PERFORMANCE



Operating Characteristics in Compatible Fluids1

Maximum Differential Pressure Operating Temperature
   5.0 bard (72.5 psid) (forward) 25 °C (77 °F)
 2.0 bard (29 psid) (forward)   80 °C (176 °F)
   1.5 bard (21.8 psid) (forward)    90 °C (194 °F)
1 bard (14.5 psid) (reverse)    60 °C (140 °F)



1Fluids which do not swell, soften, or adversely affect any of the filter components.



Table 1: Removal Rating2

Code Description
110 1 µm
120 2 µm
130 3 µm
150 5 µm
210 10 µm
220 20 µm



2PREcart PP filter cartridge liquid retention ratings are based on a modified OSU-F2 single pass test. The removal efficiency for all grades is 99.98%.

Documents

Data Sheets

  • PREcart PP II Filter Cartridges for Particle Removal
