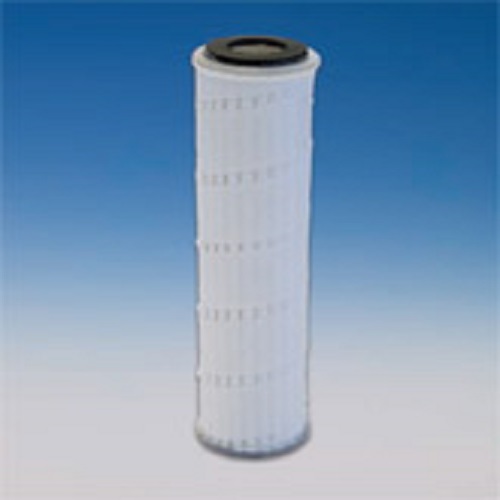

Profile® UP Pleated Depth Filters

For High Particle Removal Efficiency

The Profile UP filter is an innovative combination of depth and laid over pleated filtration technologies for high particle removal efficiency. The unique, all-polypropylene product consists of a pleated, depth medium using the Ultipleat®  filter geometry for high effective filtration area. The result is a filter with superior flow rates and very low differential pressures. Given the unique medium construction and a proprietary crescent-shaped pleat structure, the pressure drop of the Profile UP filters is as low as half that of higher area pleated filters and as low as one-fifteenth that of conventional depth filters. Consequently, Profile UP filters provide exceptional service life.

Profile® UP Pleated Depth Filters

Micro Breweries – Preclarification
Micro Breweries – Preclarification
Upstream, Polymer & Ink Filtration
Upstream, Polymer & Ink Filtration

Order Products

Product ID: AB1UY0207H1
Unit of Measure
1/EA
Min Order Qty
1
Product ID: AB1UY0207H4
Unit of Measure
1/EA
Min Order Qty
1
Product ID: AB1UY0457J
Unit of Measure
1/EA
Min Order Qty
1
Product ID: AB1UY1008H1
Unit of Measure
1/EA
Min Order Qty
1
Product ID: AB1UY0453PH1
Unit of Measure
1/EA
Min Order Qty
1
Product ID: AB1UY1007H1
Unit of Measure
1/EA
Min Order Qty
1
Product ID: AB1UY1007WH4
Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
10 µm
Membrane Material
Polypropylene
Cartridge Length (Imperial)
10 in
Cartridge Length (Metric)
254 mm
Cartridge Length (Metric)
25.4 cm
Gasket / O-Ring Material
Silicone Elastomer
See All Attributes
AB1UY2007WH4 product photo
Product ID: AB1UY2007WH4
Unit of Measure
1/EA
Min Order Qty
1
Product ID: AB2UY04518J
Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
4.5 µm
Cartridge Length (Imperial)
20 in
Cartridge Length (Metric)
508 mm
Cartridge Length (Metric)
50.8 cm
Gasket / O-Ring Material
Ethylene Propylene
Cartridge Outer Diameter (OD) (Imperial)
2.75 in
See All Attributes
Product ID: AB2UY0207H
Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
2 µm
Cartridge Length (Imperial)
20 in
Cartridge Length (Metric)
508 mm
Cartridge Length (Metric)
50.8 cm
Gasket / O-Ring Material
Fluorocarbon Elastomer
Cartridge Outer Diameter (OD) (Imperial)
2.75 in
See All Attributes
Product ID: AB2UY0453H4
Unit of Measure
1/EA
Min Order Qty
1
Product ID: AB2UY0457H
Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
4.5 µm
Cartridge Length (Imperial)
20 in
Cartridge Length (Metric)
508 mm
Cartridge Length (Metric)
50.8 cm
Gasket / O-Ring Material
Fluorocarbon Elastomer
Cartridge Outer Diameter (OD) (Imperial)
2.75 in
See All Attributes
59 Items

Description

Why choose Profile UP pleated depth filters?

Profile UP filters are ideal for a wide range of fluids, with varying viscosities and solids concentrations.

Product Highlights:

  • Pleated depth filters are formed using a pleated cylinder made of thick filter media with a tapered pore structure.

Applications

Chemicals and Polymer:

Chemicals – Final product (liquid), raw material (gas, air, liquid) and intermediate product – other



Petrochemicals – Amine, Benfield and other solvent loops



Polymer – Carbon fiber production, nylon production and polyurethane production

Food and Beverage:

Bottled Water – Trap filtration



Soft Drinks – Water – trap filtration



Beer (Corporate) – Fine filtration, particle filtration and service media filtration



Beer (Craft/Microbreweries) – Clarification, pre-clarification and service media filtration

Microelectronics:

Semiconductor – CMP and ultrapure water



Photovoltaics – Wet etch and cleans

Oil and Gas:

Upstream – Injection water and SRU



Midstream – LNG acid gas, acid gas, glycol filtration and process water



Refinery – Amine systems

Specifications

*Please refer to the documentation for additional specifications.



Performance Characteristics

Cartridge Grade Liquid Service Removal Rating in Microns (μm) at % Efficiency Clean Pressure Drop Aqueous Service MBARD / LPM (PSID / GPM) Per 10-inch Element2
  90% 99.98%
020 <1.0 3.2 2.37 / 0.13
045 1.2 4.5 1.55 / 0.085
060 2.5 6.0 0.64 / 0.035
100 4.3 10.0 0.55 / 0.030
200 11.0 20.0 0.46 / 0.025
300 17.0 30.0 0.36 / 0.020
400 19.0 40.0 0.27 / 0.015
500 25.0 50.0 <0.18 / 0.010
700 35.0 – 1 <0.18 / 0.010
1000 60.0 – 1 <0.18 / 0.010

Documents

Data Sheets

  • Profile® UP Filters
