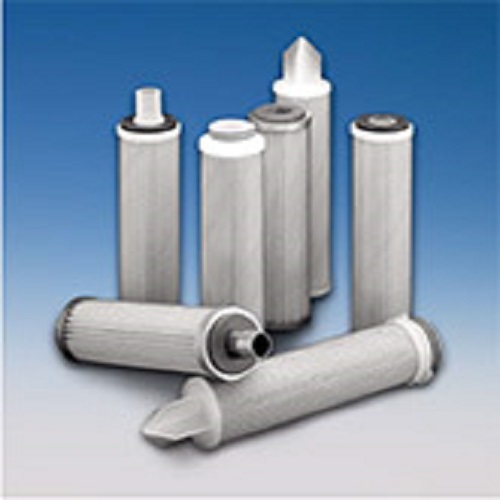

Duo-Fine® E Series Pleated Filter Cartridges

High-Capacity Pleated Filter Cartridges for Filtration in Liquid and Gas Applications

Duo-Fine® E Series filter cartridges are designed with unique microfiber-glass media for exceptional dirt-holding capacity and longer service life. The protective netting is color-coded to quickly identify micron ratings and small diameter fibers ensure high flow rates at low-pressure drops.

Order Products

Product ID: DFN0210UE
Unit of Measure
30/EA
Min Order Qty
30
Removal Rating
0.2 µm
Cartridge Length (Imperial)
10 in
Cartridge Length (Metric)
254 mm
Cartridge Length (Metric)
25.4 cm
See All Attributes
Product ID: DFN0210UN
Unit of Measure
30/EA
Min Order Qty
30
Removal Rating
0.2 µm
Cartridge Length (Imperial)
10 in
Cartridge Length (Metric)
254 mm
Cartridge Length (Metric)
25.4 cm
See All Attributes
Product ID: DFN0230UNM26
Unit of Measure
12/EA
Min Order Qty
12
Removal Rating
0.2 µm
Cartridge Length (Imperial)
30 in
Cartridge Length (Metric)
762 mm
Cartridge Length (Metric)
76.2 cm
See All Attributes
Product ID: DFN0210AN
Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
0.2 µm
Cartridge Length (Imperial)
10 in
Cartridge Length (Metric)
254 mm
Cartridge Length (Metric)
25.4 cm
See All Attributes
Product ID: DFN0240UEM26
Unit of Measure
12/EA
Min Order Qty
12
Removal Rating
0.2 µm
Cartridge Length (Imperial)
40 in
Cartridge Length (Metric)
1016 mm
Cartridge Length (Metric)
101.6 cm
See All Attributes
Product ID: DFN04510AN
Unit of Measure
30/EA
Min Order Qty
30
Removal Rating
0.45 µm
Cartridge Length (Imperial)
10 in
Cartridge Length (Metric)
254 mm
Cartridge Length (Metric)
25.4 cm
See All Attributes
Product ID: DFN0451401
Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
0.45 µm
Change Out Differential Pressure
2.4 bard
Cartridge Outer Diameter (OD) (Imperial)
2.6 in
Cartridge Outer Diameter (OD) (Metric)
6.6 cm
See All Attributes
Product ID: DFN045195AN
Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
0.45 µm
Cartridge Length (Imperial)
19.5 in
Cartridge Length (Metric)
495 mm
Cartridge Length (Metric)
49.5 cm
See All Attributes
Product ID: DFN04510AV
Unit of Measure
30/EA
Min Order Qty
30
Removal Rating
0.45 µm
Cartridge Length (Imperial)
10 in
Cartridge Length (Metric)
254 mm
Cartridge Length (Metric)
25.4 cm
See All Attributes
Product ID: DFN04520UN
Unit of Measure
12/EA
Min Order Qty
12
Removal Rating
0.45 µm
Cartridge Length (Imperial)
20 in
Cartridge Length (Metric)
508 mm
Cartridge Length (Metric)
50.8 cm
See All Attributes
Discontinued
Product ID: DFN0230AV
Unit of Measure
12/EA
Min Order Qty
12
Removal Rating
0.2 µm
Cartridge Length (Imperial)
30 in
Cartridge Length (Metric)
762 mm
Cartridge Length (Metric)
76.2 cm
See All Attributes
Discontinued
Product ID: DFN1010USM3
Unit of Measure
30/EA
Min Order Qty
30
Removal Rating
10 µm
End Configuration
SOE flat closed end, external 222 O-rings
Change Out Differential Pressure
2.4 bard
88 Items

Description

Why Choose Duo-Fine E Series?

Available in retention ratings between 0.2 to 50 µm, these filter cartridges are an economical alternative to string wound filter cartridges.



Additional benefits include:



  • A 304 stainless steel center core and end caps for high-temperature applications
  • End configurations fit most housings
  • Core material options available for different temperature compatibility

Product Highlights:

  • High capacity
  • High dirt holding capacity
  • Longer service life

Applications/Use

Chemicals and Polymer:

  • Chem final product (liquid)
  • Raw materials (gas, air, liquid)
  • Intermediate product
  • Carbon fiber, nylon and polyurethane production

Oil and Gas:

  • Upstream injection water and SRU
  • Upstream offshore boiler water
  • Upstream offshore produced water
  • Upstream onshore surface discharged water

Specifications

*Please refer to the documentation for additional specifications.



Performance Specifications



Filter grades

0.2, 0.45, 1, 3, 10, 30, 50 µm



Recommended change-out differential pressure1

2.4 bard (35 psid)



Maximum differential pressure

Polypropylene hardware
4.8 bard (70 psid) @ 20°C (68°F)
2.8 bard (40 psid) @ 65˚C (150˚F)
304 stainless steel hardware
5.2 bard (75 psid) @ 121°C (250°F)



1Provided that the maximum differential pressure is not exceeded based on temperature limits defined above
