High Flow Large Format Cartridges

Pall’s High-Flow Large Format Filters are designed to process fluids at a significantly higher rate than the standard systems. These large format filter cartridges  offer consistent filtrate quality with higher liquid processing and dirt-holding capacity. The filters are cost-effective, generate less waste and occupy less space.

The High-Flow Large Format Filter Cartridges offer easy-to-use and highly adaptable filtration solutions for processing a range of fluids. These filters come with a large diameter  suitable for high flow rate applications. The high-flow capacity filters require lower capital and installation cost than traditional systems.

These filters provide –

  • Consistent filtrate quality
  • Extended service life
  • A more economical solution with lower operating costs
  • High flow capacity
  • Smaller system
  • Fewer  and easy  change-outs

Order Products

Marksman™, Large Format Filters, Filter Grade 10 µm, Borosilicate micro fiberglass with acrylic binder, Size 1 bag, Nitrile

Product ID: DFNM101UNF
Unit of Measure
1/EA
Min Order Qty
1
Cartridge Length
Size 1 bag
Filter Grade
10 µm
Hardware Material
Polypropylene
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm

Marksman™, Large Format Filters, Filter Grade 10 µm, Borosilicate micro fiberglass with acrylic binder, Size 2 bag, Nitrile

Product ID: DFNM102UNPFA
Unit of Measure
1/EA
Min Order Qty
1
Cartridge Length
Size 2 bag
Filter Grade
10 µm
Hardware Material
Polypropylene
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm

Marksman™, Large Format Filters, Filter Grade 10 µm, Borosilicate micro fiberglass with acrylic binder, Size 2 bag, Nitrile, Plastic self-adjusting flange

Product ID: DFNM102UNPFB
Unit of Measure
1/EA
Min Order Qty
1
Cartridge Length
Size 2 bag
Filter Grade
10 µm
Hardware Material
Polypropylene
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm

Marksman™, Large Format Filters, Filter Grade 10 µm, Borosilicate micro fiberglass with acrylic binder, Size 1 bag

Product ID: DFNM101UNPFA
Unit of Measure
1/EA
Min Order Qty
1
Cartridge Length
Size 1 bag
Filter Grade
10 µm
Hardware Material
Polypropylene
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm

Marksman™, Large Format Filters, Borosilicate micro fiberglass with acrylic binder, Size 2 bag

Product ID: DFNM12UNF
Unit of Measure
1/EA
Min Order Qty
1
Cartridge Length
Size 2 bag
Hardware Material
Polypropylene
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm

Marksman™, Large Format Filters, Filter Grade 1.5 µm, Borosilicate micro fiberglass with acrylic binder, Size 2 bag, No flange

Product ID: DFNM152UNF
Unit of Measure
1/EA
Min Order Qty
1
Cartridge Length
Size 2 bag
Filter Grade
1.5 µm
Hardware Material
Polypropylene
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm

Marksman™, Large Format Filters, Filter Grade 1.5 µm, Borosilicate micro fiberglass with acrylic binder, Size 2 bag, Fluorocarbon elastomer

Product ID: DFNM152UVPFA
Unit of Measure
1/EA
Min Order Qty
1
Cartridge Length
Size 2 bag
Filter Grade
1.5 µm
Hardware Material
Polypropylene
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm

Marksman™, Large Format Filters, Filter Grade 1.5 µm, Borosilicate micro fiberglass with acrylic binder, Size 2 bag

Product ID: DFNM152UNFB
Unit of Measure
1/EA
Min Order Qty
1
Cartridge Length
Size 2 bag
Filter Grade
1.5 µm
Hardware Material
Polypropylene
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm

Marksman™, Large Format Filters, Filter Grade 20 µm, Borosilicate micro fiberglass with acrylic binder

Product ID: DFNM20125TVM5
Unit of Measure
1/EA
Min Order Qty
1
Filter Grade
20 µm
Hardware Material
Polypropylene
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm

Marksman™, Large Format Filters, Filter Grade 3 µm, Borosilicate micro fiberglass with acrylic binder, Length 40 Inches

Product ID: DFNM34UNPFA
Unit of Measure
1/EA
Min Order Qty
1
Cartridge Length
40/1016 inches/mm
Filter Grade
3 µm
Hardware Material
Polypropylene
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm
Cartridge Length (Imperial)
40 in
See All Attributes

Marksman™, Large Format Filters, Filter Grade 70 µm, Borosilicate micro fiberglass with acrylic binder, Size 2 bag, Nitrile

Product ID: DFNM702UNPFB
Unit of Measure
1/EA
Min Order Qty
1
Cartridge Length
Size 2 bag
Filter Grade
70 µm
Hardware Material
Polypropylene
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm

Marksman™, Large Format Filters, Filter Grade 70 µm, Borosilicate micro fiberglass with acrylic binder, Size 2 bag, EPDM

Product ID: DFNM702UEPFA
Unit of Measure
1/EA
Min Order Qty
1
Cartridge Length
Size 2 bag
Filter Grade
70 µm
Hardware Material
Polypropylene
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm

Description

Pall offers a range of high-flow large format filters.



Marksman™ High Flow Filters

Featuring new, large cartridge geometry, the Marksman series filters come with high flow capacity and high surface area for longer service life. With an all-polypropylene construction, the filters offer broad chemical compatibility and consistent filtrate quality.

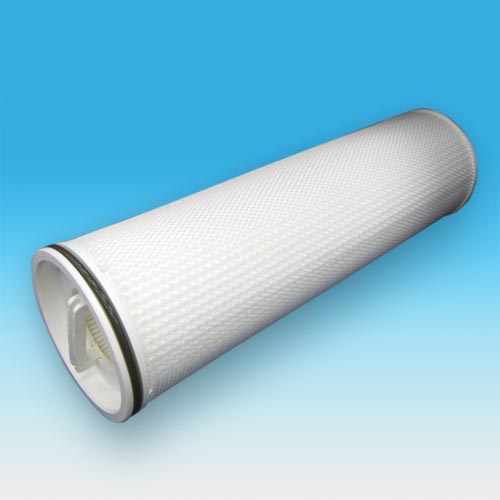

Ultipleat® High Flow filter

The coreless, single open-ended filter has a large-diameter and pleated cartridge with an inside-to-outside flow pattern that ensures all the debris stays within the filter. The Ultipleat high flow cartridge offers a significantly high flow rate and requires fewer cartridge change-outs.



Nexis® High Flow filter

The Nexis® High Flow filter is a large-diameter, single-open-ended, coreless depth cartridge with the inside-to-outside flow. The filters are available in a wide range of proprietary melt-blown filter media and are specifically designed for high flow rate applications and need fewer elements and smaller housings.



Profile® Coreless Filter

Profile Coreless Filters are large-diameter cartridges that offer highly efficient clarification and particle filtration in high flow rate food and beverage applications. The cartridges are produced in a controlled environment and certified according to ISO 9001:2008 Quality Manufacturing System.

Applications

Pall’s large format filters are used in many applications that demand a high flow rate. They are used across diverse industry domains, including Industrial Manufacturing, Biotech, Power Utilities, Chemicals & Polymer, Microelectronics, Oil & Gas, and Food and Beverages.



Pall High Flow Large Format filters are used in various in-plant clarification applications, including –

  • Parts washing
  • Make-up water, pre-and post-RO
  • Machine tool coolant
  • E-coat filtration
  • Water and oil-based metalworking fluids
  • Paint and coatings
  • Wash rinses and baths
  • Filtration of contaminants such as chemicals, amines, water, hydrocarbons, and other fluids in chemical, petrochemical, and refining industries.



Oil & Gas:

  • Gas filtration
  • Condensate feed
  • Natural gas transportation pipeline
  • Frac water disposal
  • Wastewater filtration
  • Produced water
  • Diesel, gasoline, kerosene, LPG final product filtration
  • General disposal well protection
  • Amine loop filter
  • Hydrotreater feed filter



Oil & Gas applications that demand efficient protection of critical downstream equipment and units, including –

  • Desiccant fines removal from gas drying units
  • Removal of ‘Black Powder’ from gas pipelines
  • Catalyst/activated carbon fines removal from mercury guard beds

Chemicals:

  • Disposal wells
  • Epoxy resin
  • Feed streams
  • Agricultural chemicals
  • Industrial resins and coatings
  • Acids
  • Silicone solutions
  • Alkalis
  • Solvents
  • Water treatment
  • Tank car loading and unloading
  • Final product
  • TFT LCD liquid applications like wet etching and cleaning

Pulp & Paper:

  • Black liquor
  • White liquor
  • Demin water
  • Bleach tower processed water treatment
  • Shower press
  • Spray nozzle protection

Paint/Automotive:

  • Paint feedstocks
  • Final & intermediate products

Power Utilities:

  • Help reduce boiler tube failures
  • Pre reverse osmosis filtration
  • Cooling water  filtration
  • Resin trap filtration

Food and Beverage:

Incoming water filtration
  • Prefilter for bottled water sterilizing filters
  • Barrier to cysts and oocysts
  • Food and beverage processes



Particle filtration in high-flow rate food and beverage applications

FAQs

Q.1. What are the benefits of using Pall’s Large Format Filters?

The Large Format Filters offer –

  • Consistent filtrate quality
  • A more economical solution with lower operating costs
  • Fewer  and easy  change-outs
  • Smaller system
  • Extended service life
  • High flow capacity



Q.2. What are the different types of Large Format Filters offered by Pall?

Pall provides the following range of Large Format Filters –

  • Marksman High Flow Filters
  • Ultipleat High Flow Filters
  • Nexis High Flow Filters
  • Profile Coreless Filters



Q.3. Which industries use Pall’s Large Format Filters?

Pall’s Large Flow Filters are used in the following industries –

  • Industrial Manufacturing
  • Biotech
  • Power Utilities
  • Chemicals & Polymer
  • Microelectronics
  • Oils & Gas
  • Food and Beverages
