SUPRApak™ Plus PW Series Modules

For High Throughput Depth Filtration in Enclosed Systems

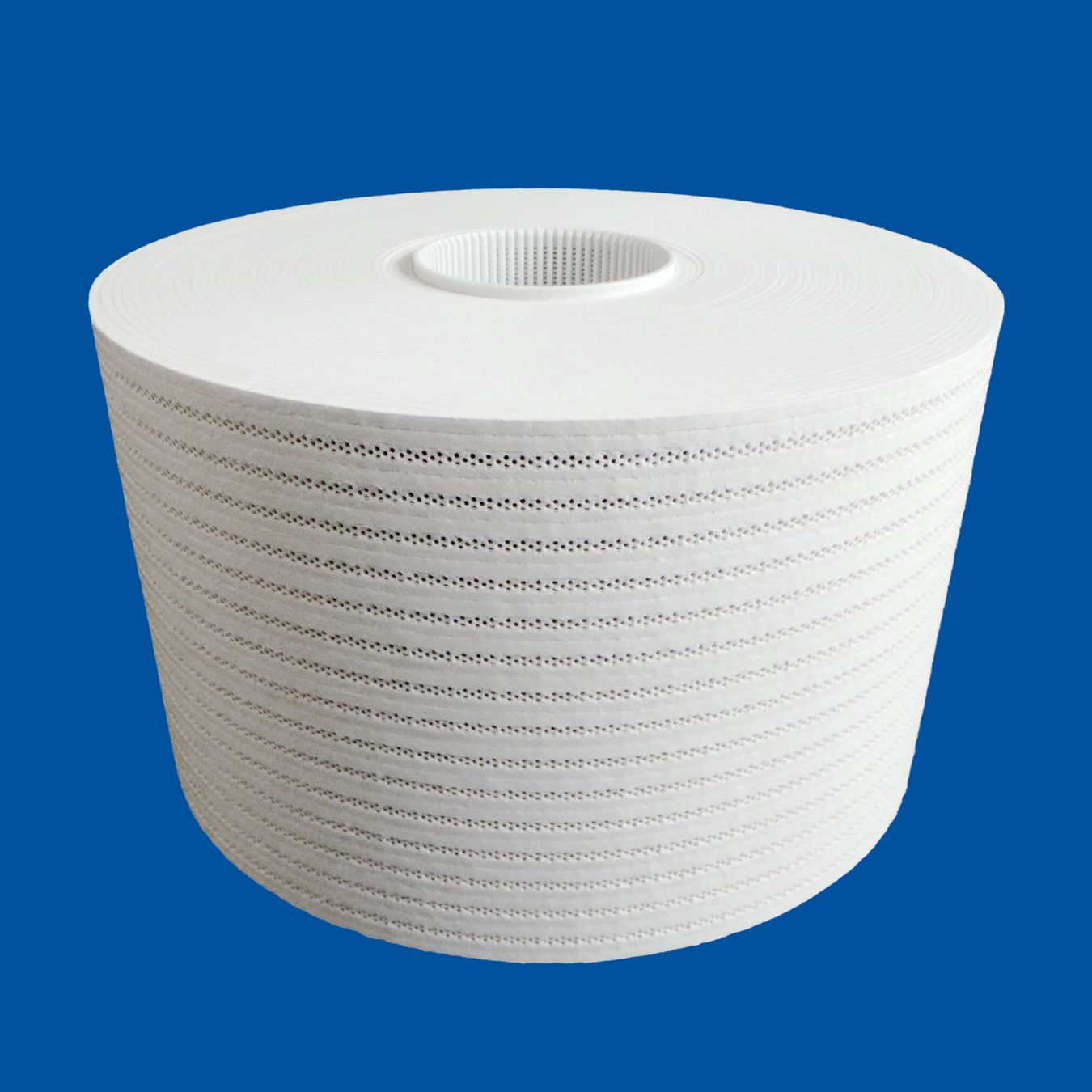

SUPRApak Plus PW depth filter module design is using the new layer to layer seal technology.

Developed from traditional depth filtration technology, SUPRApak modules efficiently combine the filtration mechanisms of surface filtration, depth filtration and adsorption. Highly unique to their design is an entirely new flow configuration, based on the "edgeflow" principle.

Seitz® filter sheet material is wrapped around a central, permeable core. Feed and filtrate channels provide a fluid flow path resulting in maximum utilization of the sheet material, to provide highly efficient contaminant removal and a cost-effective enclosed system alternative to flat sheet filtration.

Order Products

SUPRApak™ Depth Filter Module, PW 5900 LW product photo
Product ID: 5302742
Product ID
Unit of Measure
1/EA
Min Order Qty
1
Media Material Kieselguhr, Perlite and Cellulose Fibers
Nominal Outer Diameter 16 in
Nominal Length 10.7 in
Maximum Differential Pressure 36.25 psid
See All Attributes
SUPRApak™ Depth Filter Module, PW 5900 SW product photo
Product ID: 5302742/S
Product ID
Unit of Measure
1/EA
Min Order Qty
1
Media Material Kieselguhr, Perlite and Cellulose Fibers
Nominal Outer Diameter 7.5 in
Nominal Length 10.7 in
Maximum Differential Pressure 36.25 psid
See All Attributes
SUPRApak™ Depth Filter Modules, PW 5200 SW product photo
Product ID: 5302800/S
Product ID
Unit of Measure
1/EA
Min Order Qty
1
Media Material Kieselguhr, Perlite and Cellulose Fibers
Nominal Outer Diameter 7.5 in
Nominal Length 10.7 in
Maximum Differential Pressure 36.25 psid
See All Attributes
SUPRApak™ Depth Filter Module, PW 5500 SW product photo
Product ID: 5302807/S
Product ID
Unit of Measure
1/EA
Min Order Qty
1
Media Material Kieselguhr, Perlite and Cellulose Fibers
Nominal Outer Diameter 7.5 in
Nominal Length 10.7 in
Maximum Differential Pressure 36.25 psid
See All Attributes
SUPRApak™ Depth Filter Module, PW 5700 MW product photo
Product ID: 5303071/M
Product ID
Unit of Measure
1/EA
Min Order Qty
1
Media Material Kieselguhr, Perlite and Cellulose Fibers
Nominal Outer Diameter 11.2 in
Nominal Length 10.7 in
Maximum Differential Pressure 36.25 psid
See All Attributes
SUPRApak™ Depth Filter Module, PW 5700 SW product photo
Product ID: 5303071/S
Product ID
Unit of Measure
1/EA
Min Order Qty
1
Media Material Kieselguhr, Perlite and Cellulose Fibers
Nominal Outer Diameter 7.5 in
Nominal Length 10.7 in
Maximum Differential Pressure 36.25 psid
See All Attributes
SUPRApak™ Depth Filter Module, PW 7100 MW product photo
Product ID: 5303072/M
Product ID
Unit of Measure
1/EA
Min Order Qty
1
Media Material Kieselguhr, Perlite and Cellulose Fibers
Nominal Outer Diameter 11.2 in
Nominal Length 10.7 in
Maximum Differential Pressure 36.25 psid
See All Attributes
SUPRApak™ Depth Filter Module, PW 7100 LW product photo
Product ID: 5303072
Product ID
Unit of Measure
1/EA
Min Order Qty
1
Media Material Kieselguhr, Perlite and Cellulose Fibers
Nominal Outer Diameter 16 in
Nominal Length 10.7 in
Maximum Differential Pressure 21.75 psid
See All Attributes
SUPRApak™ Depth Filter Module, PW 7700 MW product photo
Product ID: 5303104/M
Product ID
Unit of Measure
1/EA
Min Order Qty
1
Media Material Cellulose
O-ring/Seal/Gasket Material Silicone Elastomer
Nominal Outer Diameter 11.2 in
Nominal Length 10.7 in
See All Attributes
SUPRApak™ Depth Filter Module, PW 7100 SW product photo
Product ID: 5303072/S
Product ID
Unit of Measure
1/EA
Min Order Qty
1
Media Material Kieselguhr, Perlite and Cellulose Fibers
Nominal Outer Diameter 7.5 in
Nominal Length 10.7 in
Maximum Differential Pressure 36.25 psid
See All Attributes
SUPRApak™ Depth Filter Module, PW 7700 SW product photo
Product ID: 5303104/S
Product ID
Unit of Measure
1/EA
Min Order Qty
1
Media Material Cellulose
Nominal Outer Diameter 7.5 in
Nominal Length 10.7 in
Maximum Differential Pressure 36.25 psid
See All Attributes
11 Items
  • 1

Description

New to the SUPRApak PW Series is an improved layer to layer sealing which offers the following features and benefits:



Features Benefits
Flow configuration based on "edge flow" principle
  • Up to 6 times higher throughput compared to classical sheet filtration, resulting in longer process uptimes1
  • Increased adsorption capability and excellent filtrate quality

Sealing line technology
  • Higher mechanical stability
  • Modules can be steam sanitized
  • Higher dp stability and therefore higher total throughput
Enclosed filtration system
  • Increased process safety and product quality
  • No drip losses
  • Minimal operator exposure to process fluids

Drainable, low hold-up volume assembly
  • Higher product yield; lower cleaning costs

High filtration capacity in compact design
  • Small footprint

Simple, quick installation and servicing
  • Reduced labor and maintenance costs



1 Depending on application and product selection

Applications

Typical applications are found in many fluids in the food and beverage industry.



Final filtration Enzyme solutions, sweeteners
Polishing filtration Sweeteners, beer, wine, flavors, thin liquor gelatin, yeast extract, vinegar
Clarifying filtration Beer, wine, enzymes, flavors, thin liquor gelatin, polyols, edible oils
Coarse filtration General particle removal



PW Range of Filtration Grades



Specifications

Quality

  • Filter sheets produced in a controlled environment
  • Manufactured according to ISO 9001:2015 certified Quality Management System



Food Contact Compliance

Please refer to the Pall website www.pall.com/foodandbev for a Declaration of Compliance to specific National Legislation and/or Regional Regulatory requirements for food contact use.



Main Components2


Component Description

Sheet material: PW 5200,

PW 5300, PW 5500, PW 5700,

PW 5900, PW 7000, PW 7100,

PW 7300, PW 7700

 Cellulose, Diatomaceous Earth (DE, Kieselguhr) Perlites
Center Core Polypropylene (20% talc-filled)
Sealing Line Polypropylene



2 For more information on materials of construction, please see the Declaration of Compliance at www.pall.com/foodandbev



Technical Information



Operating Characteristics in Compatible Fluids3

Module Size Grade Max. Operating Temperature
SUPRApak S,M,L PW 5200-PW 7700 80 °C (167 °F) / 8 hours4



3 Compatible fluids are those which do not adversely affect the filter materials of construction.

4 Laboratory tests up to 8 hours exposure. Actual field experience shows substantially longer resistance to high temperatures. For continuous hot fluid applications over 40° C (104° F), a stainless steel support core is required. Please see SUPRApak housing data sheet for information.



Operating Guidelines

Field experience shows that maximum achievable differential pressures vary with the applications and product selection. They are determined by monitoring filtrate quality, and are influenced by several factors. Please contact Pall for details, and refer to SUPRApak module instructions for use.



Nominal Weight and Typical Ash Content

Module Dry Weight Wet Weight Ash Content5

SUPRApak S

(PW 5200-PW 7300)

1.6-1.8 kg

(3.5-4 lbs)

3.5-4.5 kg

(7.7-9.9 lbs)

 35-49%

SUPRApak S (PW 7700)

1.2 kg (2.6 lbs)

3.1-3.8 kg (6.8-8.4 lbs)

 < 2%

SUPRApak M

(PW 5200-PW 7300)

5.1-5.6 kg

(11.2-12.3 lbs)

15.5-16.5 kg

(34.1-36.3 lbs)

 40-54%
SUPRApak M (PW 7700) 3.8 kg (8.4 lbs) 13-15 kg (28.6-33 lbs) < 2%

SUPRApak L

(PW 5200-PW 7300)

11-12 kg

(24.2-26.4 lbs)

25-30 kg

(55-66 lbs)

 40-54%
SUPRApak L (PW 7700) 7.5 kg (16.5 lbs) 25-30 kg (55-66 lbs) < 2%



5 These figures are determined on typical finished articles. Values differ for individual PW grades. Ash values for the filter sheets in individual batches are available on request.



Many applications in the food and beverage industry are ideally suited to the use of SUPRApak technology, resulting in significant commercial and technical advantages.

Sanitization6

Method Temperature Time/Cycles6
Hot Water 85 °C (185 °F) 20 cycles @ 20 min each
Steam 125 °C (258 °F) 10 cycles @ 20 min each



6The actual time required may vary as a function of the process conditions. Laboratory tests were carried out up to 10 cycles. Actual field experience shows more cycles are achievable, coupled with proper filtrate quality monitoring.





Rinsing7

Module Size Rising Volume/Module Recommended Flow Rate
SUPRApak S 20 liters (5.3 US gal) 1.5 times filtration flow rate
SUPRApak M 140 liters (37 US gal) 1.5 times filtration flow rate
SUPRApak L 340 liters (90 US gal) 1.5 times filtration flow rate

7 Depending on the application, rinsing with cold or warm water in a forward flow direction is recommended prior to filtration.

Documents

Datasheet

  • SUPRApak™ Plus PW-Series Modules

    Select Language :
    English

Related Documents

  • Increase Filtration Capacity and Reduce Process Time in Citrus Oil De-waxing Applications

    Select Language :
    English

Videos

Pall SUPRApak vs Filter Press setup time

Ordering Information

This information is a guide to the part number structure and possible options. For availability of specific options and housing details, please contact Pall.



Part number nomenclature:

Part Number: SUPRApak PW [Table 1] [Table 2] W

Example part number: SUPRApak PW 5200 W

See bold reference code in tables.



Table 1: Grade

Code
5200
5300
5500
5700
5900
7000
7100
7300
7700



Table 2: Nominal Dimensions

Code Height External Diameter
S 250 mm (9.8") 183 mm (7.5")
M 250 mm (9.8") 285 mm (11.2")
L 250 mm (9.8") 415 mm (16.3")


Available Sizes

Code Range L M S
5200 PW Range  x x x
5300 x x x
5500 x x x
5700 x x x
5900 x x x
7000   x x
7100 x x x
7300   x x
7700   x x
