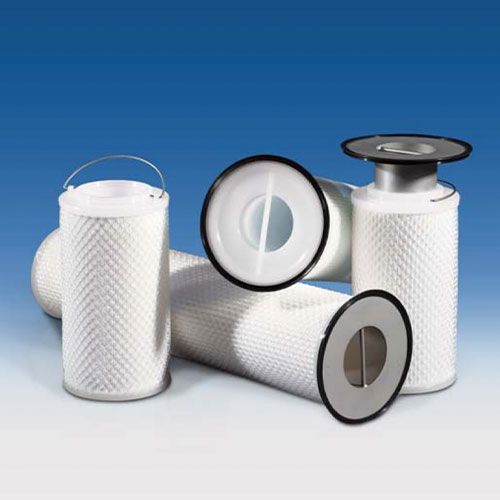

Marksman™, Large Format Filters, Filter Grade 10 µm, Polypropylene, Size 2 Bag, Nitrile, Plastic self-adjusting flange, Pall Marksman Series vessels Rosedale4 Strainrite Krystil Klear5
Datasheets
Download:
The Marksman PFTM102UNPFA is a 10 µm polypropylene filter designed to fit size 2 bag vessels. Equipped with a nitrile gasket and a plastic self-adjusting flange, it provides leak-free sealing in Marksman Series, Rosedale, Strainrite, and Krystil Klear housings. Its high-capacity pleated media ensures consistent performance and extended filter life.
Need more information? View all details for this Product Family!
| Media Material | Polypropylene |
| Hardware Material | Polypropylene |
| O-ring/Seal/Gasket Material | Nitrile |
| Removal Rating | 9 µm |
| Removal Efficiency | absolute |
| Nominal Outer Diameter | 6 in 152 mm |
| Nominal Length | Size 2 Bag |
| Maximum Differential Pressure | 1.03 bar (15 psid) 3.5 bar (50 psid) |
| Maximum Temperature | 60°C (140°F) |
| Dirt Holding Capacity | 0 |
| Clean Differential Pressure | 0.17 bar (2 psid) |
Large Format Filters
