설명
Accepts 25.4 cm (10 in.) or 50.8 cm (20 in.)
Nominal Length 1000 Style Filter Cartridges
- Fail-safe cartridge sealing device provides pre-closure assurance of no fluid bypass
- In-line inlet and outlet connections ensure easy installation
- NPT and flange options available
- High pressure models available for applications up to 69 bar (1000 psig) @ 121 °C (250 °F)
규격사양
Housing Specifications
Maximum Operating Pressure
- Standard: 17.2 bar (250 psig) @ 121 °C (250 °F)
- H: 51.7 bar (750 psig) @ 121 °C (250 °F)
- V: 68.9 bar (1000 psig) @ 121 °C (250 °F)
Materials of construction
- 316 stainless steel - wetted parts
Connections
- Inlet/Outlet: 3⁄4 in. NPT
- Drain: 1⁄4 in. NPT
Shell O-rings
- FEP encapsulated fluorocarbon elastomer, silicone elastomer, fluorocarbon elastomer, nitrile, ethylene propylene
Eye nut option
- Eye nuts can be substituted for standard hex nuts. Order Part T10640030. Eye nuts are standard with flanged units.
Flange option
- 150 lb., 300 lb., or 600 lb. ANSI raised face 3⁄4 in. flanges are available.
Dimensional Data (nominal)
| Model | Liquid1 Flow Rate lpm (gpm) |
Gas2 Flow Rate scfm |
Dimensions cm (in.) | Weight Empty | |||
| A | B | C | Threaded Nozzle kg (lb) |
Flanged Nozzle kg (lb) |
|||
| LMO11 | to 37.9 (10) | 125 | 33 (13) | 11.1 (4.375) | 21.6 (8.5) | 4.1 (9) | 5.9 |
| LMO12 | to 75.7 (20) | 225 | 58.4 (23) | 11.1 (4.375) | 21.6 8.5) | 5.9 (13) | 7.7 (17) |
| LMO11H | to 37.9 (10) | 125 | 33 (13) | 11.1 (4.375) | 22.5 (8.875) | 4.1 (9) | 7.7 (17) |
| LMO12H | to 75.7 (20) | 225 | 58.4 (23) | 11.1 (4.375) | 22.5 (8.875) | 5.9 (13) | 9.5 (21) |
| LMO11V | to 37.9 (10) | 125 | 33 (13) | 11.1 (4.375) | 23.8 (9.375) | 4.1 (9) | 9.5 (21) |
| LMO12V | to 75.7 (20) | 225 | 58.4 (23) | 11.1 (4.375) | 23.8 (9.375) | 5.9 (13) | 11.3 (25) |
1 Dependent upon cartridge selection, fluid viscosity and allowable pressure drop.
2 Housing pressure drop less than 0.07 bar (1 psig).
성능

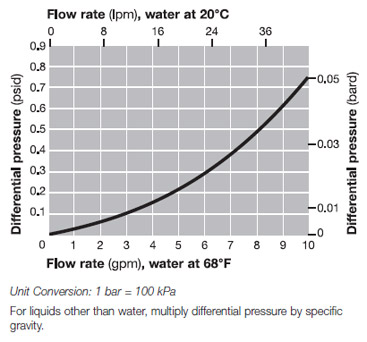

Housing Differential Pressure vs. Liquid Flow Rate
Unit Conversion: 1 bar = 100 kPa
For liquids other than water, multiply differential pressure by specific gravity.
종류
Housings, Vessels, or Assemblies
주문정보
Pall Part Number = LMO1 [1] [2] GN [3] [4]
Table 1
| Code | Bowl nominal lengths (cm/in.) |
| 1 | 25.4/10 |
| 2 | 50.8/20 |
Table 2
| Code | Pressure ratings |
| Blank | 17.2 bar (250 psig) @ 121 °C (250 °F) |
| H | 51.7 bar (750 psig) @ 121 °C (250 °F) |
| V | 68.9 bar (1000 psig) @ 121 °C (250 °F) |
Table 3
| Code | Inlet/outlet size |
| 12 | 3⁄4 in. NPT |
| 13 | 3⁄4 in. Flange |
Table 4
| Code | Seal materials |
| H | Fluorocarbon elastomer |
| H1 | FEP encapsulated fluorocarbon elastomer |
| H4 | Silicone |
| H13 | Nitrile |
| J | EPDM |
적용분야
Control Fluids
영역
Steam Plants
