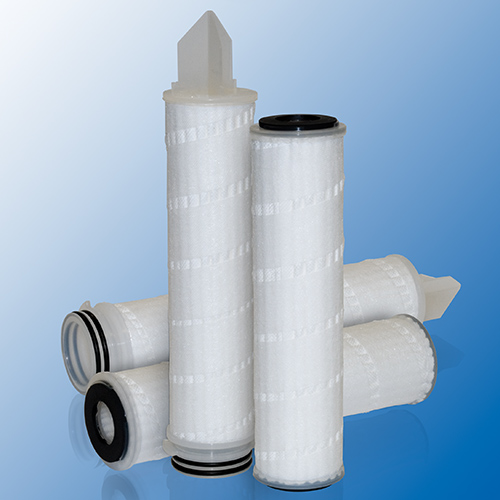

Profile® UP Pleated Depth Filters for Micro Breweries

Laid Over, Pleated Depth Filter Media for Microbrewery Preclarification Applications

Profile UP pleated beer clarification filters combine the advantages of a continuously graded pore structure with a unique laid-over pleat geometry to increase effective filtration area and service life. When using this product, fewer cartridges are required for a given flow rate versus a traditional depth style cartridge. Thus, filter vessels are correspondingly smaller, resulting in lower capital and installation costs, as well as reduced operating costs.

Order Products

Product ID: AB1UY1007WH4
Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
10 µm
Membrane Material
Polypropylene
Cartridge Length (Imperial)
10 in
Cartridge Length (Metric)
254 mm
See All Attributes
AB1UY2007WH4 product photo
Product ID: AB1UY2007WH4
Unit of Measure
1/EA
Min Order Qty
1
Product ID: AB3UY1007WH4
Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
10 µm
Membrane Material
Polypropylene
Cartridge Length (Imperial)
30 in
Cartridge Length (Metric)
762 mm
See All Attributes
Product ID: PUY1UY400WJ
Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
40 µm
Membrane Material
Polypropylene
Cartridge Length (Imperial)
10 in
Cartridge Length (Metric)
254 mm
See All Attributes
Product ID: PUY3UY045WJ
Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
4.5 µm
Membrane Material
Polypropylene
Industry-Specific Certification
W480 Food Contact
Cartridge Length (Imperial)
30 in
See All Attributes
Product ID: PUY2UY100WJ
Unit of Measure
1/EA
Min Order Qty
1
Removal Rating
10 µm
Membrane Material
Polypropylene
Industry-Specific Certification
W480 Food Contact
Cartridge Length (Imperial)
20 in
See All Attributes
6 Items
  • 1

Description

Why choose Profile UP pleated depth filters for microbreweries?

This all-polypropylene product consists of a pleated, depth medium using the Ultipleat®  filter geometry for high effective filtration area. The result is a filter having superior flow rates with very low differential pressures.



Additional benefits include:



  • Media with laid-over pleat geometry
  • Fixed fiber matrix

Product Highlights:

  • All polypropylene filter construction
  • High filtration surface area
  • Long service life

Applications/Use

Craft / Micro Breweries

  • Clarification
  • Pre-clarification
  • Service media filtration

Specifications

*Please refer to the documentation for additional specifications.



Quality



  • Cartridges produced in a controlled environment
  • Manufactured according to ISO 9001:2015 certified Quality Management System



Food Contact Compliance



  • Food contact compliant filters are available. Please consult the Declarations of Compliance for applicable part numbers at the links below.
  • Profile UP Filter Cartridge (AB Style “W” Code)  Declaration of Compliance
  • Profile UP Filter Cartridge (PUY Style “W” Code) Declaration of Compliance





Typical Flow Rates2



2Typical initial clean delta p per 254 mm (10 inch) cartridge, water at 20 °C (68 °F).
For liquids with a viscosity greater than 1 cP, multiply the delta p by the viscosity.



Liquid Removal Rating:



Grade Rating (µm) at 99.98% Efficiency (ß-5000) Rating (µm) at 90% Efficiency (ß-10)
UY020 2.03 <1.0
UY045 4.5 1.2
UY100 10 4.3
UY200 20 11
UY400 40 18

Profile UP filter cartridge liquid retention ratings are based on the modified OSU-F2 test.



3For applications requiring in situ sterilization or sanitization, Pall recommends the use of Code 7 adaptors to ensure filter sealing after cooling. Cartridges should be cooled to the system operating temperature prior to use.

Documents

Data Sheets

  • Profile UP Filter Cartridges for Particle Removal
