Marksman 740 Retrofit Filter Elements

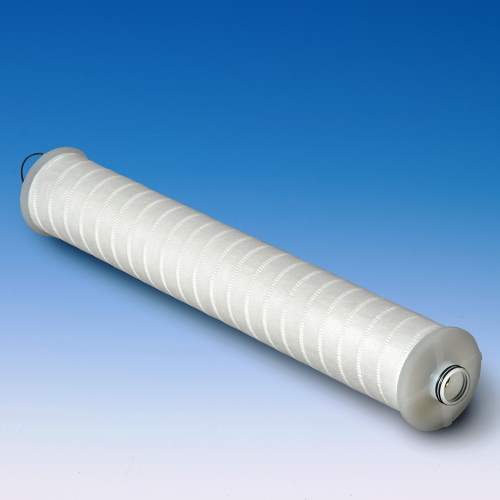

The Marksman™ 740 Series Filter Element is a direct retrofit to the industrial 740 format. The cartridge utilizes an optimized axial pleat geometry for high efficiency, low flux (flow per unit area), and exceptional dirt-holding capacity, which yields long on-stream life and low differential pressure.

Media Options:

  • Poly-Fine® XLD Media
  • Poly-Fine II Media

Order Products

Red1000 Glass Fiber 12 micron (Beta 1000) Nitrile 36in 91.44cm

Product ID: HC2296FKS36H
Unit of Measure
1/EA
Min Order Qty
6
Anti-Static
No
Beta Rating
BETA 1000
Element Series
HC2296
Family
Red1000
Filter Media
Glass Fiber
Filter Removal Rating (μm)
12 µm
See All Attributes

Ultipor III Glass Fiber 5 micron (Beta 1000) Nitrile 8in 20.32cm length

Product ID: HC9601FDP8H#28
Unit of Measure
1/EA
Min Order Qty
1
Anti-Static
No
Beta Rating
BETA 1000
Element Series
HC9601
Family
Ultipor III
Filter Media
Glass Fiber
Filter Removal Rating (μm)
5 µm
See All Attributes
RT250A10S product photo

RT250A10S

Product ID: RT250A10S
Unit of Measure
30/EA
Min Order Qty
30
Packaging
Bulk
See All Attributes

Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 40 Inches

Product ID: HC2018FRN40HYQ79
Unit of Measure
5/EA
Min Order Qty
5
Anti-Static
Yes
Beta Rating
BETA 2000
Element Series
HC2018
Family
Supralon
Filter Media
Glass Fiber
Filter Removal Rating
7 micron (Beta 2000)
See All Attributes

Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 39 Inches

Product ID: HC2019FRN39Z
Unit of Measure
1/EA
Min Order Qty
1
Anti-Static
Yes
Beta Rating
BETA 2000
Element Series
HC2019
Family
Supralon
Filter Media
Glass Fiber
Filter Removal Rating
7 micron (Beta 2000)
See All Attributes

Supralon™ Lube and Hydraulic Elements, Removal Rating 25 μm, GlassFiber, Length 39 Inches

Product ID: HC2019FRT39Z
Unit of Measure
1/EA
Min Order Qty
1
Anti-Static
Yes
Beta Rating
BETA 2000
Element Series
HC2019
Family
Supralon
Filter Media
Glass Fiber
Filter Removal Rating
25 micron (Beta 2000)
See All Attributes

Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 39 Inches

Product ID: HC2023FRS39Z
Unit of Measure
1/EA
Min Order Qty
1
Anti-Static
Yes
Beta Rating
BETA 2000
Element Series
HC2023
Family
Supralon
Filter Media
Glass Fiber
Filter Removal Rating
12 micron (Beta 2000)
See All Attributes

Ultipor III Glass Fiber 7 micron (Beta 1000) Nitrile 8in 20.32cm (REPLACED BY HC2104FRN8Z)

Product ID: HC2104FKN8H
Unit of Measure
1/EA
Min Order Qty
1
Anti-Static
No
Beta Rating
BETA 1000
Element Series
HC2104
Family
Ultipor III
Filter Media
Glass Fiber
Filter Removal Rating
7 micron (Beta 1000)
See All Attributes

Supralon™ Lube and Hydraulic Elements, Removal Rating 12 μm, GlassFiber, Length 39 Inches

Product ID: HC2019FRS39Z
Unit of Measure
1/EA
Min Order Qty
1
Anti-Static
Yes
Beta Rating
BETA 2000
Element Series
HC2019
Family
Supralon
Filter Media
Glass Fiber
Filter Removal Rating
12 micron (Beta 2000)
See All Attributes

Supralon™ Lube and Hydraulic Elements, Removal Rating 5 μm, GlassFiber, Length 39 Inches

Product ID: HC2019FRP39Z
Unit of Measure
1/EA
Min Order Qty
1
Anti-Static
Yes
Beta Rating
BETA 2000
Element Series
HC2019
Family
Supralon
Filter Media
Glass Fiber
Filter Removal Rating
5 micron (Beta 2000)
See All Attributes

Ultipor SRT Glass Fiber 12 micron (Beta 1000) Nitrile 8in 20.32cm

Product ID: HC2104FAS8H
Unit of Measure
6/EA
Min Order Qty
6
Anti-Static
Yes
Beta Rating
BETA 1000
Element Series
HC2104
Family
Ultipor SRT
Filter Media
Glass Fiber
Filter Removal Rating
12 micron (Beta 1000)
See All Attributes

Supralon™ Lube and Hydraulic Elements, Removal Rating 7 μm, GlassFiber, Length 8 Inches

Product ID: HC2104FRN8Z
Unit of Measure
6/EA
Min Order Qty
6
Anti-Static
Yes
Beta Rating
BETA 2000
Element Series
HC2104
Family
Supralon
Filter Media
Glass Fiber
Filter Removal Rating
7 micron (Beta 2000)
See All Attributes

Description

With the addition of this new 740 format to Pall’s Marksman family of elements, users can now enjoy an even broader range of filter media and grades offered by a single source. The clear advantage of the Marksman 740 Series filter is broad chemical compatibility and economy of use. The Marksman 740 Series filter is available in two media options.



Poly-Fine® XLD Media

Poly-Fine XLD (Extended Life Depth) media is optimized for large cartridge geometry filters. Poly-Fine XLD media is a hybrid media offering the best of depth media performance in a pleated format. Constructed of all polypropylene, it offers wide chemical and service compatibility.



Poly-Fine II  PFT Media

Poly-Fine II media is the ideal media for true surface filtration. Poly-Fine II media offers the optimum in a high dirt-holding capacity pleated filter geometry. Also constructed of all polypropylene, it presents versatility and broad chemical compatibility.



Innovative Technology

All Marksman Series filters are manufactured in Pall’s ISO 9001 state-of-the-art facilities and contain the most advanced melt-blown media available. Our proprietary processes produce media for the sole purpose of filtration.

Thorough attention to every detail of the manufacturing process assures a product with unmatched performance:

  • Unsurpassed consistency
  • High void volume1 for high dirt-holding capacity
  • A broad range of chemical compatibility for maximum application utility



1 Void volume is defined as that fraction of the media not occupied by media fibers. Pall’s proprietary construction yields a media with over 80% void space, allowing the greatest dirt-holding capacity (DHC) and consequently long filter life, which translates into fewer element change-outs, reduced operator exposure, and lower overall operating costs.

Applications/Use

Oil and Gas:

  • LNG Acid Gas

Chemicals and Polymer:

  • Amines
  • Hydrocarbons
  • Water
  • Chemicals raw material/gas/air

Specifications

Performance Specifications



Filter Grades (Liquid service)

PFTM: 1, 3, 5, 10, 20, 40, 70, 90, 150

XLDM: 1.5, 3, 4.5, 10, 20, 30, 70



Maximum Operating Differential Pressure:

3.4 bard (50 psid) @ 79°C (175°F)



Product Specifications



Materials of Construction:

Filter media: Polypropylene

Center core: Tin coated steel

Support: Polypropylene

End Caps: Polypropylene



Dimensions (nominal):

Outside diameter: 150 mm (6 in)

Inside diameter: 94 mm (3.7 in)

Length: 965mm (38 in)



Particle Removal Ratings1 and Typical Flow2

Media Grade Particle Removal Rating



Typical Flow
Poly-Fine II Beta 10 Beta 1000 PSID per 1 GPM (mbard/lpm) - Water @ 68°F (20°C)
PFTM 1 1 µm   0.010 (0.152)
PFTM 3 2 µm   0.007 (0.137)
PFTM 5   5 µm 0.004 (0.078)
PFTM 10   9 µm 0.002 (0.045)
PFTM 20   15 µm 0.003 (0.047)
PFTM 40 20 µm   0.003 (0.051)
PFTM 70   70 µm 0.002 (0.042)
PFTM 90 57 µm   0.003 (0.053)
PFTM 150   145 µm 0.002 (0.042)



Media Grade Particle Removal Rating Typical Flow
Poly-Fine XLD PSID per 1 GPM (mbard/lpm) - Water @ 68°F (20°C)
XLDM 1.5 1 µm 0.009 (0.164)
XLDM 3 3 µm 0.007 (0.128)
XLDM 4.5 4 µm 0.004 (0.073)
XLDM 10 6 µm 0.003 (0.055)
XLDM 20 16 µm 0.003 (0.055)
XLDM 30 17 µm 0.003 (0.055)
XLDM 70 26 µm 0.003 (0.055)



1Removal efficiencies based upon a modified ASTM F795 Dynamic Single Pass Efficiency test.

2 Pressure drop in PSID per GPM water for a single 38 in (965 mm) element. Multiply this value by the required flow to determine the total aqueous pressure drop. For fluids other than water, multiply differential pressure by viscosity (cP).

FAQs

Q. 1. Will the Marksman 740 Series Filter fit my existing housing?

- The Marksman 740 Series filter provides an intrinsic 360-degree positive seal utilizing a 226 O-ring, which permits a direct fit into an existing vessel. This filter is also available in a “short” option for other competitive variants of this filter format. For details, please consult your Pall representative.



Q. 2. What are the filter grade and filter media options available for Marksman 740 Series Filters?

- The Marksman 740 Series Filters are available in two filter media options with the following filter grade ratings –

Poly-Fine® XLD Media - 1.5, 3, 4.5, 10, 20, 30, 70

Poly-Fine II Media - 1, 3, 5, 10, 20, 40, 70, 90, 150
