Ultipleat® High Flow (Liquid)

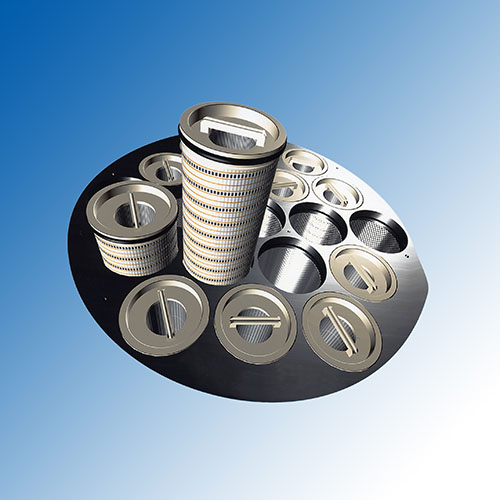

The Ultipleat® High Flow Filters are coreless, single open-ended filters that offer high filtration efficiency. These filters have a large diameter and laid over pleated cartridge with an inside-to-outside flow pattern that prevents debris from escaping the filter. The high flow rate at 1900 lpm or 500 gpm for a 60-inch length element allows for fewer cartridge change-outs.

The Ultipleat filters use up to 50% smaller filter systems and need up to 40 times fewer element change-outs. The coreless construction of the filter minimizes waste disposal, and the absolute rated filter medium offers reproducible performance. . It has a wide range of filtration ratings from 1 µm to 100 µm. The inside to outside flow pattern traps contaminant inside the element, thus preventing polluting the treated water during the cartridge change-out.

Dedicated and appropriate Ultipleat® High Flow Housings are available in horizontal, vertical, and centerpipe design configurations for these elements.

Ultipleat® High Flow Filter Cartridges | Pall Shop

Order Products

FEATURED

Ultipleat® High Flow, Large Format Filters, Filter Grade 90 µm, Pleated Polypropylene Depth Structure, Length 40 Inches, Ethylene Propylene O-ring Material

Product ID: HFU640UY1000J
Unit of Measure
1/EA
Min Order Qty
1
Filter Grade
3 µm
Hardware Material
Glass Filled Polypropylene
Media Material
PTFE
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm
Cartridge Length (Imperial)
20.7 in
See All Attributes
FEATURED

Ultipleat® High Flow, Large Format Filters, Filter Grade 20 µm, Resinbondedglassfiber, Length 60 Inches, Fluoroelastomer O-ring Material

Product ID: HFU660GF200H
Unit of Measure
1/EA
Min Order Qty
1
Filter Grade
3 µm
Hardware Material
Glass Filled Polypropylene
Media Material
PTFE
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm
Cartridge Length (Imperial)
20.7 in
See All Attributes
FEATURED

Ultipleat® High Flow, Large Format Filters, Filter Grade 4.5 µm, Pleated Polypropylene Depth Structure, Length 40 Inches, Ethylene Propylene O-ring Material

Product ID: HFU640UY045J
Unit of Measure
1/EA
Min Order Qty
1
Filter Grade
3 µm
Hardware Material
Glass Filled Polypropylene
Media Material
PTFE
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm
Cartridge Length (Imperial)
20.7 in
See All Attributes
FEATURED

Ultipleat® High Flow, Large Format Filters, Filter Grade 2 µm, Pleated Polypropylene Depth Structure, Length 40 Inches, Ethylene Propylene O-ring Material

Product ID: HFU640UY020J
Unit of Measure
1/EA
Min Order Qty
1
Filter Grade
3 µm
Hardware Material
Glass Filled Polypropylene
Media Material
PTFE
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm
Cartridge Length (Imperial)
20.7 in
See All Attributes
FEATURED

Ultipleat® High Flow, Large Format Filters, Filter Grade 10 µm, Resinbondedglassfiber, Length 60 Inches, Fluoroelastomer O-ring Material

Product ID: HFU660GF100H
Unit of Measure
1/EA
Min Order Qty
1
Filter Grade
3 µm
Hardware Material
Glass Filled Polypropylene
Media Material
PTFE
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm
Cartridge Length (Imperial)
20.7 in
See All Attributes
FEATURED

Ultipleat® High Flow, Large Format Filters, Filter Grade 40 µm, Pleated Polypropylene Depth Structure, Length 40 Inches

Product ID: HFU640UY400J
Unit of Measure
1/EA
Min Order Qty
1
Filter Grade
3 µm
Hardware Material
Glass Filled Polypropylene
Media Material
PTFE
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm
Cartridge Length (Imperial)
20.7 in
See All Attributes
FEATURED

Ultipleat® High Flow, Large Format Filters, Filter Grade 10 µm, Pleated Polypropylene Depth Structure, Length 60 Inches, Ethylene Propylene O-ring Material

Product ID: HFU660UY100J
Unit of Measure
1/EA
Min Order Qty
1
Filter Grade
3 µm
Hardware Material
Glass Filled Polypropylene
Media Material
PTFE
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm
Cartridge Length (Imperial)
20.7 in
See All Attributes
FEATURED

Ultipleat® High Flow, Large Format Filters, Filter Grade 6 µm, Pleated Polypropylene Depth Structure, Length 60 Inches

Product ID: HFU660UY060J
Unit of Measure
1/EA
Min Order Qty
1
Filter Grade
3 µm
Hardware Material
Glass Filled Polypropylene
Media Material
PTFE
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm
Cartridge Length (Imperial)
20.7 in
See All Attributes
FEATURED

Ultipleat® High Flow, Large Format Filters, Filter Grade 4.5 µm, Pleated Polypropylene Depth Structure, Length 40 Inches, Nitrile O-ring Material

Product ID: HFU640UY045H13
Unit of Measure
1/EA
Min Order Qty
1
Filter Grade
3 µm
Hardware Material
Glass Filled Polypropylene
Media Material
PTFE
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm
Cartridge Length (Imperial)
20.7 in
See All Attributes
FEATURED

Ultipleat® High Flow, Large Format Filters, Filter Grade 10 µm, Pleated Polypropylene Depth Structure, Length 40 Inches, Nitrile O-ring Material

Product ID: HFU640UY100H13
Unit of Measure
1/EA
Min Order Qty
1
Filter Grade
3 µm
Hardware Material
Glass Filled Polypropylene
Media Material
PTFE
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm
Cartridge Length (Imperial)
20.7 in
See All Attributes
FEATURED

Ultipleat® High Flow, Large Format Filters, Filter Grade 10 µm, Resinbondedglassfiber, Length 40 Inches, Nitrile O-ring Material

Product ID: HFU640GF100H13
Unit of Measure
1/EA
Min Order Qty
1
Filter Grade
3 µm
Hardware Material
Glass Filled Polypropylene
Media Material
PTFE
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm
Cartridge Length (Imperial)
20.7 in
See All Attributes
FEATURED

Ultipleat® High Flow, Large Format Filters, Filter Grade 10 µm, Pleated Polypropylene Depth Structure, Length 40 Inches, Ethylene Propylene O-ring Material

Product ID: HFU640UY100J
Unit of Measure
1/EA
Min Order Qty
1
Filter Grade
3 µm
Hardware Material
Glass Filled Polypropylene
Media Material
PTFE
Outside Diameter (Imperial)
6 in
Outside Diameter (Metric)
152 mm
Cartridge Length (Imperial)
20.7 in
See All Attributes

Description

The Ultipleat High Flow Series Filters are available in the following configurations –



Ultipleat® High Flow Filters: This filter has a large diameter, coreless, single open-ended, pleated cartridge with an inside to outside flow pattern. It reduces the number of filters and size of housings required with its unique crescent-shaped pleat geometry, combined with its large 152.4 mm (6-inch) diameter and with length option up to 80”.



These pleated high flow filters are available in the following variants :

  • Ultipleat® High Flow Filter Elements - Standard
  • Ultipleat® High Flow Filter with PTFE and ECTFE media
  • Ultipleat® High Flow Filter Elements (1 µm) with CAS media
  • Ultipleat® High Flow XL Filters with Glass Fiber (GF) media



Vector™ High Flow Series Filter Cartridges: This filter cartridge utilizes Pall’s unique “Laid-Over-Pleat” or Ultipleat® technology with felt media to prolong on-stream service life for your process applications. Vector High Flow elements are available in different lengths, media, and hardware configurations that make them compatible with a broad range of temperatures and chemicals.



Nexis® High Flow Series Filter Elements: This filter is a large-diameter, coreless, single-open-ended depth cartridge with an inside-to-outside flow. It has a wide range of availability in ratings from 10 µm to 100 µm. This series is using the proprietary ColdMeltTM technology using a gradient pore melt -blown structure. The large diameter (152.4 mm [6 in]) allows you to attain the desired results even in high flow rate applications with significantly fewer elements and smaller housings.





Applications/Use

Pall’s Ultipleat High Flow filters have a wide range of applications across various industries.





Oil and Gas:

  • Condensate feed
  • Gas filtration
  • Natural gas transportation pipeline
  • Wastewater filtration
  • Frac water disposal
  • Produced water
  • General disposal well protection
  • Diesel
  • Gasoline
  • Kerosene
  • LPG final product filtration
  • Hydrotreater feed filter
  • Amine loop filter

Chemicals and Polymer:

  • Epoxy resin
  • Disposal wells
  • Feed streams
  • Industrial resins and coatings
  • Agricultural chemicals
  • Acids
  • Alkalis
  • Solvents
  • Silicone solutions
  • Water treatment
  • Final product
  • Tank car loading and unloading

Power and Utilities:

  • RO osmosis protection
  • Condensate
  • Cooling tower

Industrial Manufacturing:

  • Acts as a barrier to cysts and oocysts
  • Prefilter for bottled water sterilizing filters

Microelectronics:

  • Pre reverse osmosis filtration
  • Cooling water
  • Pre-RO
  • Resin trap filtration
  • Wet etching and cleaning

Pulp & Paper:

  • White liquor
  • Black liquor
  • Demin water
  • Shower press
  • Bleach tower processed water treatment

Paint/Automotive:

  • Paint feedstocks
  • Intermediates
  • Final products

Food and Beverage:

  • Highly efficient particle filtration in high flow rate food and beverage applications

Specifications

Filter Medium:

Pleated Polypropylene/Polyester/Polyether Sulfone Membrane/Polypropylene with high-density polyethylene



Support/Drainage:

Polypropylene



Endcaps:

Glass-filled polypropylene



Wrap Materials:

Polypropylene



Sealing material:

Standard Buna or  EPM O-ring/Specific Silicone or Teflon encapsulated fluoropolymer versions

FAQs

Q.1. What are the benefits of using Pall’s Ultipleat High Flow Filters?

Pall’s Ultipleat High Flow Filters –

  • come with a coreless construction that minimizes waste disposal
  • use 50% smaller filter systems
  • require 40 times fewer element change-outs
  • feature absolute rated filter medium that creates reproducible performance are designed with inside to outside flow configuration that keeps all contaminants within the single open-ended filter



Q.2. What is the filter grade range available for all the three variants of Ultipleat High Flow Filters?

  • Ultipleat High Flow Filters - 1 µm to 100 µm
  • Vector High Flow Filters - 1, 5, 10, 25, 50, 100 µm
  • Nexis High Flow Filters - 10 µm to 100 µm



Q.3. Which industries use Ultipleat High Flow Filters?

Ultipleat Filters are used in a wide range of industries, including –

  • Chemical and Polymer
  • Power Utilities
  • Paint/Automotive
  • Pulp and Paper
  • Industrial Manufacturing
  • Microelectronics
  • Biotech
  • Oil and Gas
  • Food and Beverage
