Modern heavy-duty diesel engines are highly susceptible to damage from particulate contamination in diesel fuel while water contamination can reduce efficiency and accelerate wear. The result, if left unchecked, is reduced reliability of critical equipment, unscheduled downtime, and an increase in maintenance and repair costs.

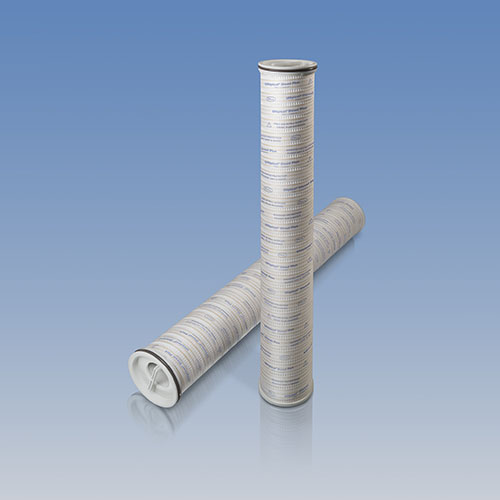

Ultipleat Diesel Plus filters provide advanced particulate and water removal from diesel fuel within a single filter element.
Product images are a representation of product family for illustration purposes only. Actual products may vary.
Please try searching again using our guidelines below:
Modern heavy-duty diesel engines are highly susceptible to damage from particulate contamination in diesel fuel while water contamination can reduce efficiency and accelerate wear. The result, if left unchecked, is reduced reliability of critical equipment, unscheduled downtime, and an increase in maintenance and repair costs.
Ultipleat Diesel Plus filters provide advanced particulate and water removal from diesel fuel within a single filter element.
The Ultipleat Diesel Plus Fuel filter housing and filter element range features:
Contaminated fuel has the potential to impact several key performance indicators which affect Overall Equipment Effectiveness (OEE).
Several of the largest mining companies closely monitor OEE as a gauge of the profitability of a mine. If measures are taken to improve the OEE, such as efforts to reduce contaminants in fuel, it can have a serious impact on the economic success of a mining company.
| Flow Range | 190 – 1325 L/min (50 – 350 US gpm) |
| Max. Pressure Rating | 10 barg (150 psig) |
| Temperature | -29 oC to 50 oC (-20 oF to 122 oF) |
| Filter Rating | 5µm (ßx(5)≥1000 per ISO 16889) |
| Coalescer water removal rating | < 50 ppm Free Water @ 15 dyn/cm & 50gpm |
| Filter element length | 40" nominal |
In comparative tests, the number of Ultipleat Diesel Plus filters elements required was significantly less compared to existing Pall or alternative solutions, resulting in an overall reduction in operating costs.
Large Format Filters
| Part Number | UDPV1 [Table 1] |
UDPV3 [Table 1] |
UDPV5 [Table 1] |
UDPV7 [Table 1] |
|
|---|---|---|---|---|---|
| No. of Filter Elements | 1 | 3 | 5 | 7 | |
| Port Size | 2" 150# ANSI RFSO |
3" 150# ANSI RFSO |
6" 150# ANSI RFSO |
6" 150# ANSI RFSO |
|
| Dimensions | A mm (in) | 2076 (81.7) |
2520 (99.2) |
2706 (106.5) |
2779 (109.4) |
| B mm (in) | 273 (10.75) |
610 (24.0) |
712 (28) |
812 (32) |
|
| C mm (in) | 802 (31.6) |
817 (32.17) |
915 (36) |
934 (39.1) |
|
| D mm (in) | 1818 (71.6) |
1833 (72.17) |
1931 (76) |
1950 (79.1) |
|
| Minimum Service Clearance mm (in) | 3024 (119.1) |
3090 (121.67) |
3221 (126.8) |
3274 (128.9) |
|
| Dry Weight Kg (lbs) | 140 (308) |
492 (1085) |
650 (1433) |
765 (1686) |
|
| Volume. L (US Gal) | 75 (19.8) |
560 (148) |
850 (224.6) |
1010 (266.8) |
|
| Code | Option |
|---|---|
| A | ASME Section VIII Div 1 |
| C | CSA-B51-97 Canadian Standard |
| E | In accordance with PED |
| G | In accordance with GB150 |
| UDPS | Water Separator |
| UDPEJP | 5 µm Particulate/Water removal element |
